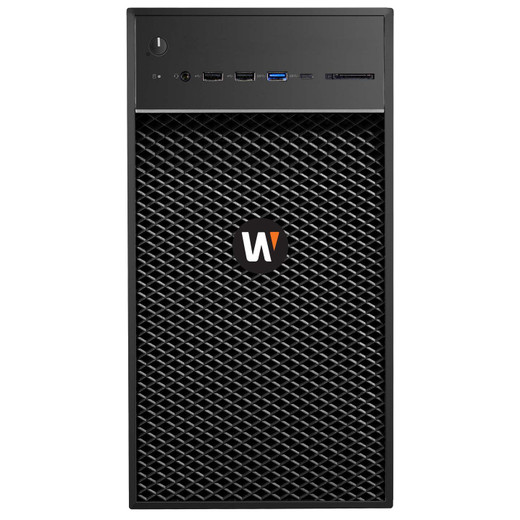

Hanwha WRT-P-5204L-36TB Mini-tower form factor WAVE Network Video

Hanwha WRT-P-5204L Overview

The Hanwha WRT-P-5204L is a mini-tower form factor network video recorder running Wisenet WAVE video management software on Ubuntu Linux 22.04 LTS. This ready-to-deploy recording server manages up to 470 Mbps of recording throughput and up to 36TB of raw storage, making it suitable for single-site deployments or as an expansion node to an existing Wisenet WAVE system. Built on 14th Generation Intel Core i5 architecture with 16GB DDR4 memory, the WRT-P-5204L combines compact footprint with enterprise-class recording capability and comes pre-installed with Wisenet WAVE and 4 Professional licenses.

Hanwha WRT-P-5204L Key Features

• High-capacity storage and recording bandwidth: Supports up to 36TB raw storage across 3 × 3.5" SATA HDD bays paired with 470 Mbps recording throughput, enabling extended retention and multi-stream simultaneous recording at scale.
• Included Wisenet WAVE Professional licenses: Ships with 4 × Wisenet WAVE Professional licenses pre-installed, reducing setup time and licensing complexity for rapid deployment.
• Dual Gigabit network interfaces: Dual GbE NICs (1 on-board, 1 PCIe) enable redundant or load-balanced network connectivity for reliable ingestion from distributed camera networks.
• Dedicated OS and data storage separation: 256GB M.2 SSD OS drive (internally mounted) isolated from 3.5" data drive bays, maintaining system stability and performance isolation.
• Ubuntu Linux 22.04 LTS operating system: Enterprise-grade Linux foundation with long-term support, providing stability, security patching, and integration flexibility for integrator customization.
• 14th Gen Intel Core i5 processor: Modern multi-core processor delivering consistent performance for Wisenet WAVE video management, analytics processing, and simultaneous client connections across up to 64 channels.
• Comprehensive video output options: 2 × DisplayPort outputs with included DisplayPort-to-HDMI adapter enable local monitoring, multi-display configurations, and operator workstation flexibility.
• Extensive USB connectivity: Rear (2 × USB 3.2 Gen 2, 2 × USB 3.2 Gen 2 Type-C, 2 × USB 2.0) and front (2 × USB 3.2 Gen 1, 1 × USB 3.2 Gen 2 Type-C, 1 × USB 3.2 Gen 2x2 Type-C) ports support external storage, peripherals, and network adapters.
• Audio I/O for multimodal recording: 3.5mm universal audio input (front) and dedicated 3.5mm audio output (rear) enable integration of audio surveillance and event-triggered recording.
• 80 Plus Platinum 550W power supply: Efficient power delivery (500W maximum consumption) with international AC input (100-240V) and compact thermal footprint suitable for server closets and edge deployment.
• Industrial operating and storage temperature range: Operates reliably at 10°C to 35°C (50°F to 95°F); withstands storage conditions of -40°C to 65°C (-40°F to 149°F), supporting both climate-controlled facilities and seasonal outdoor enclosures.

Hanwha WRT-P-5204L Integration & Compatibility

The WRT-P-5204L runs Wisenet WAVE VMS natively and manages up to 64 IP camera channels. It supports dual GbE interfaces for direct IP network attachment. As a Wisenet WAVE ecosystem component, it integrates with Hanwha Vision's camera portfolio and third-party ONVIF-compliant devices via standard network protocols. The Linux OS foundation and dual network interfaces enable integrator deployment flexibility, whether as a standalone single-site recorder or as a federated recording node in a distributed Wisenet WAVE architecture.

Hanwha WRT-P-5204L Package Contents

• WRT-P-5204L Mini-Tower Recording Server
• Wisenet WAVE VMS Software (pre-installed)
• 4 × Wisenet WAVE Professional licenses
• Keyboard
• Mouse
• DisplayPort to HDMI adapter
