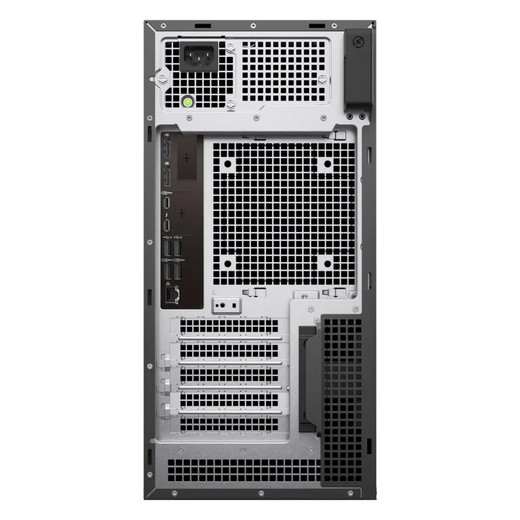

Hanwha WRT-P-5205L-24TB Mini-tower form factor WAVE Network Video

Hanwha WRT-P-5205L-24TB Overview

The Hanwha WRT-P-5205L-24TB is a mini-tower form factor Network Video Recorder purpose-built for professional surveillance deployments requiring high-capacity storage and integrated WAVE Video Management System software. This turnkey solution arrives pre-configured with Wisenet WAVE and supports up to 64 camera channels, making it suitable for mid-to-large enterprise security environments, integrator deployments, and telecom provider video management infrastructure.

Hanwha WRT-P-5205L-24TB Key Features

• Pre-installed Wisenet WAVE VMS with 4 Professional Licenses — Ships with WAVE video management software and four included Professional-tier licenses, eliminating separate software procurement and reducing time-to-deployment.
• 24TB Raw Storage Capacity — Supports extended retention periods for multi-camera deployments; configurable in 4TB, 8TB, 12TB, 16TB, 24TB, or 36TB raw capacity variants to match specific retention requirements.
• 470 Mbps Recording Throughput — Sustained bandwidth performance enables simultaneous recording from multiple high-bitrate camera streams without bottlenecking; rated bandwidth based on Hanwha Vision performance testing.
• Dual Network Connectivity — Equipped with 1x 1 GbE and 1x 5 GbE network interface for flexible LAN integration, redundancy, and dedicated management traffic separation.
• Intel Core Ultra 5 Processor with 16GB RAM — Delivers responsive multi-user access, local analytics processing, and concurrent WAVE client connections without performance degradation.
• 512GB M.2 SSD Operating System Drive — Separate dedicated SSD for Ubuntu 22.04 LTS OS ensures system responsiveness and isolates OS I/O from video storage performance.
• Three 3.5-inch Front Hot-Swappable HDD Bays — Enables field-swappable storage expansion and maintenance without interrupting surveillance operations; standard datacenter-grade hot-swap architecture.
• 1500W 80 Plus Platinum Power Supply — Efficient, redundancy-ready power architecture rated for continuous operation in 24/7 surveillance duty cycles; Single PSU configuration with robust thermal margin.
• Dual DisplayPort Video Outputs with HDMI Adapter — Supports dual-monitor display configurations for operator workstations; includes DisplayPort-to-HDMI adapter for legacy display compatibility.
• Comprehensive USB Connectivity — Front-panel USB 3.2 Gen1, Gen2, and Thunderbolt Type-C ports for direct-attach external storage, forensic data export, and peripheral management; rear ports include USB 2.0 legacy support.
• ONVIF Conformant Camera Support — Compatible with Wisenet IP cameras and any third-party IP camera adhering to ONVIF standards, providing vendor-neutral integration flexibility.
• 5-Year Next Business Day Keep-Your-Hard-Drive Warranty — Enterprise-class warranty includes expedited on-site replacement with no data-bearing component downtime; simplifies service level agreement compliance for integrators.

Hanwha WRT-P-5205L-24TB Integration & Compatibility

The WRT-P-5205L-24TB operates as a native WAVE VMS server and supports integration with Wisenet IP cameras as primary deployment, as well as any ONVIF-conformant third-party IP camera. The Linux-based Ubuntu 22.04 LTS operating system provides ONVIF Profile S/T/G compliance for standardized device management and video stream negotiation. The dual GbE/5GbE network interfaces support segmented deployments where camera transport can be isolated from management traffic. Up to 64 concurrent video channels are supported, accommodating enterprise-scale multi-site or complex facility deployments.

Hanwha WRT-P-5205L-24TB Package Contents

• WRT-P-5205L mini-tower chassis with 24TB raw storage capacity
• Wisenet WAVE VMS software pre-installed and licensed (4 x Professional licenses included)
• Ubuntu 22.04 LTS operating system pre-installed on 512GB M.2 SSD
• USB keyboard and mouse
• DisplayPort to HDMI adapter
