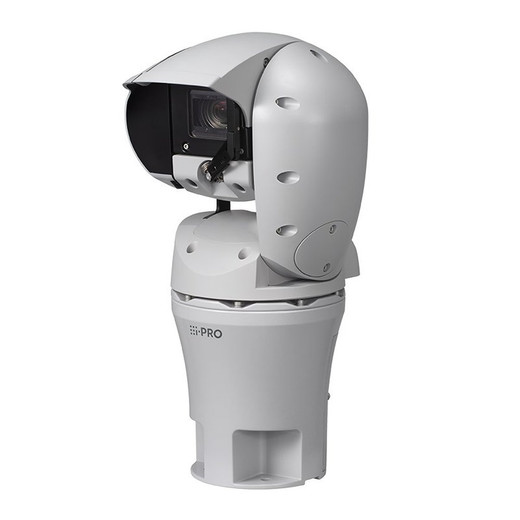

i-PRO WV-X67710-Z3-3 4K AERO PTZ WITH AI ENGINE

i-PRO WV-X67710-Z3-3 Overview

The i-PRO WV-X67710-Z3-3 is a 4K AERO PTZ camera engineered for rugged outdoor surveillance in extreme environmental conditions. Built with a 1/2.8-inch CMOS sensor and 4.5–135mm motorized zoom lens (30x optical magnification), this camera delivers high-resolution monitoring with AI-driven analytics at the edge. Designed for security integrators and IT managers deploying in harsh climates, the WV-X67710-Z3-3 combines weather resistance rated to 270 km/h (167 mph) winds, operating temperatures from −50°C to +65°C (−58°F to +149°F), and NDAA compliance for mission-critical applications.

i-PRO WV-X67710-Z3-3 Key Features

• 4K Resolution with H.265/H.264/MJPEG Compression: Captures full 4K video with efficient codec support for flexible bandwidth and storage management across enterprise networks.
• 30x Motorized Optical Zoom Lens (4.5–135mm): Precise pan-tilt-zoom control enables detailed surveillance across wide and narrow fields of view without image degradation; ideal for perimeter monitoring and vehicle/person tracking across large deployment zones.
• AI Engine with Up to 3 Edge Analytics Applications: Integrated AI processing supports on-camera object detection, classification, and auto-tracking without reliance on external servers, reducing latency and network bandwidth demands.
• Extreme Weather Durability: Wind resistance certified to 270 km/h (167 mph), operating temperature range −50°C to +65°C, and IP66/IP68/IK10 ratings ensure continuous operation in high-wind coastal, airport, and remote facility environments.
• Advanced Low-Light Performance: Minimum illumination as low as 0.0012 lux (monochrome, 50IRE, F1.8, 16/30s with AGC:11) and 0.13 lux (color, 30IRE), combined with dynamic range up to 132 dB (Super Dynamic enabled), ensures clear imagery in dawn/dusk and night conditions. Supports Intelligent Auto, Super Dynamic, fog compensation, and backlight/highlight compensation for challenging lighting.
• AC24V/DC24V Power Supply Options: Dual power input flexibility accommodates diverse installation environments and backup power configurations without requiring additional converters.
• FIPS 140-2 Level 3 Certified SecureElement: Integrates NXP EdgeLock SE050F semiconductor for cryptographic processing and secure credential storage, protecting video stream integrity and device identity in regulated security environments.
• NDAA Compliant: Meets U.S. federal procurement requirements, critical for government, defense, and sensitive infrastructure deployments.
• Comprehensive Video Analysis and Detection: Built-in video motion detection (VMD), scene change detection (SCD), audio detection, and AI sound classification provide multi-modal monitoring for enhanced situational awareness.
• Privacy Zones and Flexible Shutter Control: Configurable privacy zones mask sensitive areas, and manual shutter control (1/30 to 1/10000 in 30 fps mode; 1/25 to 1/10000 in 25 fps mode, with extended options to 16/30s and 16/25s) enable precise exposure tuning for mixed-lighting surveillance scenes.
• Advanced Gain and Noise Management: Maximum AGC adjustment (0–11 levels), digital noise reduction (0–255 levels), and adaptive black stretch optimize video quality across varying ambient conditions and sensor sensitivity needs.

i-PRO WV-X67710-Z3-3 Technical Specifications

• Image Sensor: Approx. 1/2.8-inch CMOS
• Scanning Area: 5.57 mm (H) × 3.13 mm (V)
• Minimum Illumination (Color): 0.13 lx (30IRE, F1.8, 1/30s, AGC:11); 0.19 lx (50IRE, F1.8, 1/30s, AGC:11)
• Minimum Illumination (Monochrome): 0.0012 lx (50IRE, F1.8, 16/30s, AGC:11); 0.10 lx (50IRE, F1.8, 1/30s, AGC:11); 0.006 lx (50IRE, F1.8, 16/30s, AGC:11)
• White Balance: ATW1 / ATW2 / AWC
• Shutter Speed (30 fps mode): 1/30 Fix to 1/10000 Fix
• Shutter Speed (25 fps mode): 1/25 Fix to 1/10000 Fix
• Maximum Shutter (30 fps mode): 1/4000 s to 16/30 s
• Maximum Shutter (25 fps mode): 1/4000 s to 16/25 s
• Dynamic Range: Max. 132 dB (Super Dynamic On, Level 31)
• Intelligent Auto: On / Off
• Super Dynamic: On / Off (Range 0–31)
• Adaptive Black Stretch: Level range 0–255
• Back Light Compensation / High Light Compensation: Range 0–31 (when Super Dynamic/Intelligent Auto off)
• Fog Compensation: On / Off (Range 0–8, when Intelligent Auto / Auto contrast off)
• Maximum Gain (AGC): Range 0–11
• Color/BW (ICR): Off / On / Auto1 / Auto2 / Auto3 (SCC)
• Digital Noise Reduction: Level range 0–255
• Video Motion Detection (VMD): Supported
• Scene Change Detection (SCD): Supported
• Audio Detection: Supported
• AI Sound Classification: Supported
• Max. Number of AI Applications: 3

i-PRO WV-X67710-Z3-3 Deployment & Compliance

Certified IP66 and IP68 for sealed outdoor installation; IK10 vandal resistance; wind rated to 270 km/h; operating temperature −50°C to +65°C.
