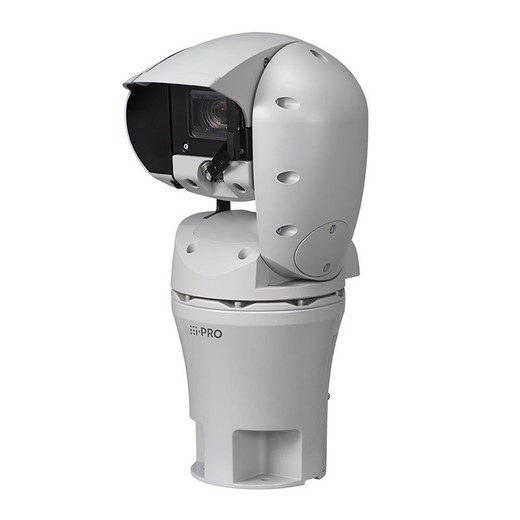

i-PRO WV-X67310-Z4-3 Overview
The i-PRO WV-X67310-Z4-3 is a 2MP rugged PTZ (pan-tilt-zoom) camera engineered for extreme outdoor environments, featuring a 40x motorized zoom lens (4.25–170mm) and integrated AI engine with support for up to 2 edge AI analytic applications. Built for mission-critical surveillance in wind-prone, temperature-extreme, and vandalism-prone locations, this camera combines optical zoom capability with on-camera AI auto-tracking and edge processing to reduce reliance on backend infrastructure.
i-PRO WV-X67310-Z4-3 Key Features
- 2MP Sensor with Exceptional Low-Light Performance: Approx. 1/2.8-type CMOS image sensor captures 2MP resolution with color minimum illumination down to 0.011 lux (F1.6, 1/30s, 30IRE) and monochrome sensitivity to 0.0004 lux (F1.6, 16/30s, 50IRE), enabling reliable surveillance in near-darkness without sacrificing image quality.
- 40x Motorized Zoom Lens: 4.25–170mm focal range provides flexible field-of-view control from wide-angle perimeter coverage to tight facial recognition capture, all motorized for smooth, controlled pan-tilt-zoom operations from a single control interface.
- Triple Codec Flexibility: Simultaneous support for H.265, H.264, and MJPEG compression enables format selection based on bandwidth constraints, storage efficiency, and VMS compatibility requirements, with selectable frame rates up to 60 fps in 60 fps mode and configurable down to 12.5 fps.
- Integrated AI Engine with Edge Analytics: Supports up to 2 simultaneous edge AI analytic applications and AI auto-tracking capability, reducing network bandwidth and latency while enabling real-time threat detection without cloud or backend server dependency.
- 144 dB Dynamic Range: Super Dynamic mode (configurable range 0–31) combined with adaptive black stretch and intelligent auto exposure delivers artifact-free video across extreme lighting transitions—critical for mixed indoor/outdoor perimeter monitoring and daylight/shadow scenarios.
- Extreme Weather Ruggedness: IP66 and IP68 certification ensures dust and water ingress protection; IK10 impact rating (20J) withstands vandalism and harsh handling; wind resistance rated to 270 km/h (167 mph) for coastal, rooftop, and exposed tower installations. Operating temperature range of −50°C to +65°C (−58°F to +149°F) supports polar and desert deployments.
- 24V AC/DC Power Supply: Accepts both AC and DC input, providing flexibility for renewable energy integration, UPS backup, and installations where standard PoE deployment is unavailable or supplemental power is required.
- Intelligent Imaging Controls: Back light compensation (BLC), high light compensation (HLC), fog compensation (range 0–8), white balance options (ATW1, ATW2, AWC), and scene change detection (SCD) enable reliable performance in challenging lighting and environmental conditions including fog, backlit scenes, and high-contrast industrial environments.
- FIPS 140-2 Level 3 Cybersecurity: Built-in FIPS 140-2 Level 3 compliant SecureElement (EdgeLock SE050F by NXP Semiconductors) provides hardware-backed cryptographic key storage and secure boot, ensuring tamper-resistant operation and compliance with federal security mandates.
- NDAA Compliance: Designed and manufactured to meet U.S. Department of Defense supply chain security requirements, making it eligible for federal, state, and municipal government procurement without additional security review.
- Variable Shutter Control: Configurable shutter speed ranges from 1/60 fix (60 fps mode) to 1/10000 fix enable motion artifact control in high-speed scenarios, with maximum shutter extending to 16/30 s for ultra-low-light integration without AGC noise amplification.
i-PRO WV-X67310-Z4-3 Integration & Compatibility
The WV-X67310-Z4-3 integrates with ONVIF-compliant VMS platforms and third-party surveillance software supporting standard IP video streams. Edge AI analytics are processed locally on-camera, reducing WAN bandwidth and enabling immediate alerting in remote or bandwidth-constrained deployments. The camera's motorized pan-tilt-zoom and AI auto-tracking functionality integrate with standard PTZ control protocols, supporting both protocol-agnostic HTTP APIs and ONVIF PTZ profiles for broad ecosystem compatibility.
