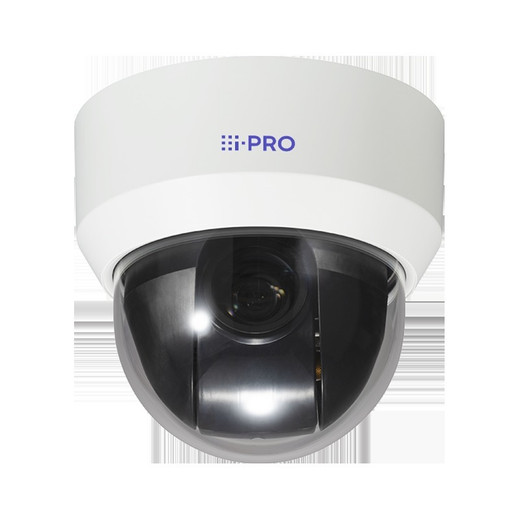

i-PRO WV-U65302-Z2 RB Overview
The i-PRO WV-U65302-Z2 RB is a 2MP (1920x1080) outdoor pan-tilt-zoom network camera engineered for high-security deployments requiring certified cryptographic protection and extreme durability. This U-series PTZ combines 21x optical zoom imaging capability with FIPS 140-2 Level 3 compliant hardware (EdgeLock® SE050F NXP® Semiconductors), NDAA compliance, and IP66/IK10 construction to deliver surveillance in demanding outdoor environments—from critical infrastructure to perimeter security—with minimal maintenance overhead and maximum security assurance.
i-PRO WV-U65302-Z2 RB Key Features
- 2MP 1080p Resolution with 1/2.8" CMOS Sensor: Captures full 1920x1080 video using a 1/2.8" CMOS image sensor, delivering sharp detail across wide outdoor scenes with excellent light sensitivity and dynamic range performance.
- 21x Optical Zoom Lens (4.0–84.6mm): Continuously variable focal length provides seamless zoom from wide-area coverage to tight facial/vehicle identification, with no digital interpolation artifacts at full magnification.
- Color Night Vision Down to 0.001 Lux: Captures color video at 0.015 lx (50IRE, F1.6, 1/30s, AGC:11) and ultra-low 0.001 lx (50IRE, F1.6, 16/30s, AGC:11) in monochrome, enabling 24/7 surveillance without active IR and reducing maintenance cycles on infrared emitters.
- Intelligent Auto & Super Dynamic Range: Adaptive imaging engine automatically optimizes exposure and contrast across varied lighting—backlit scenes, high-glare environments, and rapid day-to-night transitions—preserving detail in shadows and highlights simultaneously.
- FIPS 140-2 Level 3 Certified Secure Element: EdgeLock® SE050F embedded cryptographic processor ensures federal-grade encryption for sensitive installations; digital certificates issued by GlobalSign®; meets highest cybersecurity standards for government and critical infrastructure deployments.
- NDAA Compliant Design: No restricted components; meets National Defense Authorization Act requirements for U.S. government and defense-sector deployments.
- Rugged Pan/Tilt Mechanism with 3.7 Million Movement Cycles: Durable gear drive rated for 3.7 million pan/tilt operations—equivalent to 10+ years of continuous high-frequency movement—minimizing mechanical wear and service calls in active surveillance scenarios.
- IP66 & IK10 Vandal Resistance: IP66 (dust-tight, heavy water jet spray resistant) and IK10 (20 joule impact resistance per IEC 62262) enable installation in exposed outdoor locations, construction sites, and vandalism-prone areas without protective housings.
- Wide Operating Temperature Range (-30°C to +55°C): Full functionality across arctic to desert climates; temish anti-condensation system prevents internal fogging in high-humidity or rapid thermal cycling conditions.
- Wind Resistance Up to 40 m/s (89 mph): Structural stability and gimbal integrity certified for severe weather—tropical storms, high-altitude winds, and extreme environmental conditions.
- Flexible Power & PoE Support: Operates on DC 12V, PoE (IEEE 802.3af at 270 mA/12.95W), or PoE+ (IEEE 802.3at at 340 mA/18.4W Class 4), enabling deployment with existing PoE infrastructure while minimizing power budget strain.
- Pigtail & Gromet Installation Options: Dual termination methods (pigtail connector or adhesive gromet) adapt to varied mounting surfaces, conduit routing, and weatherproofing preferences without adapter complexity.
i-PRO WV-U65302-Z2 RB Integration & Compatibility
The WV-U65302-Z2 RB is ONVIF-compatible, enabling integration with standards-based video management systems, third-party NVRs, and open-architecture security platforms. Network connectivity supports HTTP/HTTPS and multicast/unicast streaming. The camera streams H.264 and MJPEG video codecs for flexible bandwidth optimization and legacy VMS compatibility. Integration with i-PRO's EZ-2 platform and management systems is supported. No API or SDK documentation is detailed in source materials; consult manufacturer for advanced custom integration requirements.
i-PRO WV-U65302-Z2 RB Technical Specifications
- Image Sensor: Approx. 1/2.8" CMOS
- Resolution: 2MP (1920x1080)
- Lens: 4.0–84.6mm, 21x optical zoom
- Minimum Illumination (Color): 0.011 lx (30IRE, F1.6, 1/30s, AGC:11); 0.015 lx (50IRE, F1.6, 1/30s, AGC:11)
- Minimum Illumination (Monochrome): 0.001 lx (50IRE, F1.6, 16/30s, AGC:11); 0.0004 lx (50IRE, F1.6, 16/30s, AGC:11)
- Monochrome B&W: 0.006 lx (50IRE, F1.6, 1/30s, AGC:11); 0.0004 lx (50IRE, F1.6, 16/30s, AGC:11)
- White Balance: ATW1, ATW2, AWC modes
- Shutter Speed (60 fps): 1/60 Fix to 1/10000 Fix; maximum 1/4000s to 16 (additional settings per spec)
- Shutter Speed (30/15 fps): 1/30 Fix to 1/10000 Fix
- Shutter Speed (50 fps): 1/50 Fix to 1
