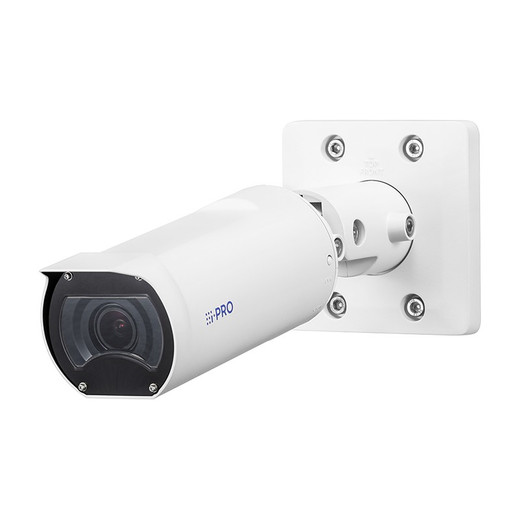

i-PRO WV-U15750-V3L 4K AI OUTDOOR IR BULLET CAMERA (3.2X ZOOM)

i-PRO WV-U15750-V3L Overview

The i-PRO WV-U15750-V3L is a 4K outdoor bullet camera engineered for edge AI analytics deployment in perimeter and facility surveillance. With integrated infrared illumination, motorized zoom optics, and FIPS 140-3 Level 3 certified secure hardware, this camera delivers both high-resolution image capture and on-camera AI-based video motion detection without reliance on external servers. Built to IP66 and IK10 standards, it withstands harsh outdoor environments while maintaining NDAA compliance for federal and critical infrastructure projects.

i-PRO WV-U15750-V3L Key Features

• 4K Resolution with 1/2.8" CMOS Sensor: Captures 4K detail at 5.57 mm (H) × 3.13 mm (V) scanning area using an approximately 1/2.8 type CMOS image sensor, delivering 8 MP equivalent resolution for facial recognition and license plate capture at distance.
• 3.2x Optical Zoom Motorized Lens (3.2–10.2 mm, F1.6): Motorized varifocal lens with f/1.6 maximum aperture enables flexible field-of-view adjustment without pixel interpolation, supporting both wide monitoring and telephoto detail extraction from a single camera position.
• 28-Meter IR LED Range with Day/Night Capability: Built-in infrared LED illumination extends coverage to 28 meters (92 feet) in complete darkness. Color minimum illumination of 0.2 lx (30 IRE, F1.6, 1/30 s, AGC 11) and black-and-white operation at 0 lx (IR on) enable 24/7 surveillance with automatic IR switching via color/BW (ICR) modes including Auto1, Auto2, and Auto3 (SCC).
• Advanced Dynamic Range and Low-Light Processing: Maximum 120 dB dynamic range when Super Dynamic is enabled at Level 31, combined with Adaptive Black Stretch (0–255 range), Back Light Compensation/High Light Compensation (0–31 range), and Fog Compensation (0–8 range) to maintain image clarity in challenging lighting transitions and adverse weather.
• Edge AI-Based Video Motion Detection: AI-VMD analytics engine runs locally on camera, enabling intelligent motion detection without streaming raw video to external servers. Supports Scene Change Detection (SCD) and Audio Detection with AI Sound Classification for multi-modal alerting.
• Flexible Shutter and Frame Rate Control: Dual frame rate modes (15 fps and 12.5 fps) with programmable shutter speeds from 1/30 s to 1/10,000 s (15 fps mode) or 1/25 s to 1/10,000 s (12.5 fps mode), plus extended shutter up to 16/30 s or 16/25 s for maximum light collection in starlight conditions.
• Built-in FIPS 140-3 Level 3 SecureElement: EdgeLock® SE052F from NXP® Semiconductors provides hardware-backed cryptographic processing and secure key storage, eliminating reliance on software-only encryption and meeting federal cybersecurity requirements for critical infrastructure.
• IP66 and IK10 Rated Outdoor Durability: Full dust ingress protection (IP66) and vandal-resistance to 20 J impact (IK10) ensure uninterrupted operation in exposed outdoor positions, including coastal, industrial, and high-traffic areas.
• Audio Recording and Two-Way Communication: Built-in microphone with audio recording capability (AAC-LC format supported on SD card) enables event-correlated audio logging and voice-based alerts or announcements through connected audio infrastructure.
• Privacy Zone and VIQS Support: Configurable privacy zones mask sensitive areas from recording and analytics, while Video Image Quality Score (VIQS) provides real-time feedback on image quality to optimize focus and exposure for ongoing threat detection.
• NDAA Compliance: Manufactured and certified to NDAA standards, meeting federal acquisition requirements for U.S. government and defense contracting deployments without supply chain restrictions.
• PC Resin Front Panel with Easy Kitting: Transparent front panel facilitates lens verification and alignment during installation; Easy Kitting design supports streamlined field deployment and minimal commissioning time.

i-PRO WV-U15750-V3L Integration & Compatibility

The WV-U15750-V3L integrates with ONVIF-compliant VMS platforms via standard network protocols, supporting Ethernet 10Base-T/100Base-TX connectivity. White Balance modes (ATW1, ATW2, AWC) and Intelligent Auto exposure provide vendor-agnostic video processing, while edge AI analytics reduce backend server load for large-scale deployments. Maximum gain (AGC) is user-adjustable from 0 to 11, enabling fine-tuned sensitivity for integration into mixed lighting and multi-sensor surveillance networks. Privacy Zone configuration and VIQS scoring support compliance frameworks requiring image quality and privacy assurance documentation.
