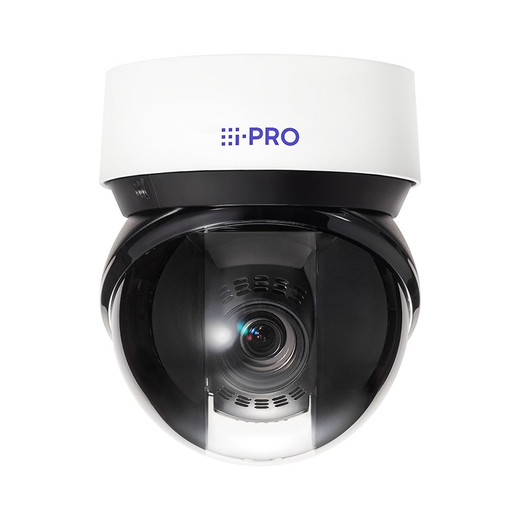

i-PRO WV-S66700-Z3LN 8MP Outdoor PTZ Camera with AI

i-PRO WV-S66700-Z3LN 8MP Outdoor PTZ Camera with AI Engine

The i-PRO WV-S66700-Z3LN is a professional-grade 8MP outdoor PTZ network camera engineered for demanding surveillance deployments requiring advanced tracking, extreme weather protection, and government compliance. Built on a 1/2.8" CMOS sensor with an integrated AI engine, this rapid PTZ combines 30x optical zoom with real-time object tracking and sound classification, delivering actionable intelligence at the edge without external processing overhead.

Key Features

• 8MP 4K Resolution: Full 4K video capture at 30 fps from a 1/2.8" CMOS sensor, enabling detailed facial recognition and forensic-level review across expansive coverage areas.
• 30x Optical Zoom (4.5–135mm): Continuous optical magnification without digital degradation, transitioning from wide-area monitoring to close-up identification without image quality loss.
• Rapid Pan/Tilt Drive: 700°/second pan and 500°/second tilt rotation for quick target acquisition and continuous tracking across large surveillance zones.
• Endless Pan Capability: Unrestricted 360° panning in both directions without mechanical stops, ideal for perimeter defense and comprehensive area coverage.
• Integrated IR-LED with 280m Range: Built-in infrared illumination provides reliable night vision coverage up to 280 meters, ensuring 24/7 surveillance capability.
• AI-Powered Analytics: Integrated AI engine enables auto-tracking, facial recognition, and sound classification for intelligent threat detection and incident response without external servers.
• Weather & Vandal Protection: IP66 and NEMA 4X ratings ensure operation in harsh outdoor conditions; IK10 vandal rating withstands physical impact from force and projectiles.
• Advanced Image Processing: Wide Dynamic Range (WDR), day/night capability, and electronic image stabilization deliver clear video in challenging lighting and motion conditions.
• Multiple Codec Support: H.265, H.264, and MJPEG compression options optimize bandwidth and storage efficiency for diverse network architectures.
• PoE++ Power Delivery: Class 6 PoE++ simplifies installation by eliminating separate power supplies on compatible infrastructure.

Technical Specifications

• Sensor: 1/2.8" CMOS, 8MP
• Lens: 4.5–135mm, 30x optical zoom
• Frame Rate: 30 fps
• IR Distance: 280 meters
• IP Rating: IP66, NEMA 4X
• Vandal Rating: IK10
• Video Compression: H.265, H.264, MJPEG
• Power: PoE++ (Class 6)
• Connectivity: Ethernet with ONVIF compatibility
• Audio Support: Yes
• Storage: microSD card support
• Security: FIPS 140-2 Level 3, NDAA Compliant, signed firmware, HTTPS encryption

Applications

Ideal for government facilities, critical infrastructure, airports, ports, perimeter defense, large-scale outdoor surveillance, and enterprise environments requiring NDAA compliance and advanced threat detection.

Jerry Tildsen

The WV-S66700-Z3LN represents i-PRO's commitment to edge-based intelligence in outdoor PTZ design. The 30x optical zoom combined with 280m IR range eliminates the multi-camera approach traditional PTZ systems required, reducing CapEx and operational complexity. The integrated AI engine—particularly auto-tracking and facial recognition—performs real-time processing without reliance on external servers, critical for latency-sensitive applications like perimeter intrusion detection and VIP protection.

FIPS 140-2 Level 3 and NDAA compliance position this camera specifically for federal, defense, and critical infrastructure deployments where supply-chain security and encryption standards are non-negotiable. The IK10 vandal rating combined with IP66 weathering ensures five-year-plus operational life even in high-salt, extreme-temperature, or physically hostile environments. PoE++ Class 6 reduces cabling costs on new installations while maintaining broad compatibility with enterprise infrastructure.

For organizations balancing surveillance coverage demand with IT security posture, this camera consolidates multiple operational requirements into a single, governmentally approved platform.

Product Documentation

📄 Download Product Datasheet (PDF)
