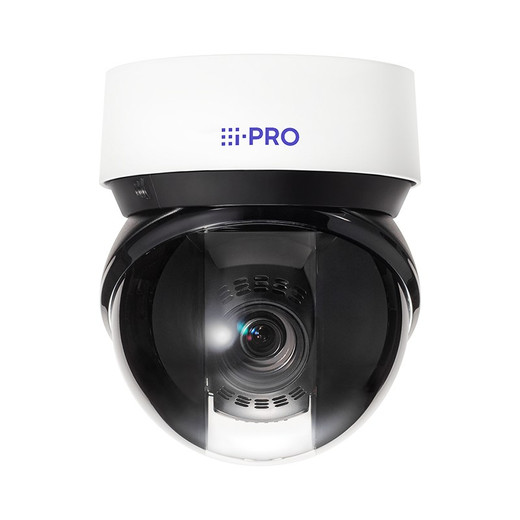

i-PRO WV-S66300-Z3LN 2MP OUTDOOR PTZ WITH AI ENGINE. 4.25-136MM

i-PRO WV-S66300-Z3LN Overview

The i-PRO WV-S66300-Z3LN is a 2MP outdoor rapid PTZ network camera engineered for integrators and IT managers requiring intelligent surveillance with extreme speed and range. This compact form factor PTZ delivers 32x optical zoom coverage via a 4.25–136mm lens, enabling swift response to site incidents and detailed object identification at distance. Built for harsh outdoor environments with IP66 weatherproofing and IK10 vandal resistance, the WV-S66300-Z3LN combines hardware-accelerated AI analytics, 250m IR-LED night vision, and enterprise-grade security features including FIPS 140-2 Level 3 cryptographic compliance and NDAA certification.

i-PRO WV-S66300-Z3LN Key Features

• 32x Optical Zoom with 4.25–136mm Varifocal Lens — Delivers wide-area overview at 4.25mm and tight identification at 136mm without pixel loss; essential for large outdoor perimeters and multi-zone monitoring.
• Rapid Pan/Tilt Mechanism — Pan speed of 700°/second and tilt speed of 500°/second enable ultra-fast target acquisition and continuous tracking across expansive areas; endless pan rotation for 360° continuous sweep capability.
• 2MP 1/2.8" CMOS Sensor — Native resolution captures sufficient detail for PTZ installations at typical surveillance ranges; 5.57 mm (H) × 3.13 mm (V) scanning area optimized for zoom performance.
• AI Engine with Up to 2 Edge Analytics Applications — Native AI auto-tracking and sound classification reduce false positives and manual review burden; analytics run locally on the camera, minimizing network bandwidth and VMS server load.
• 250m IR-LED Night Vision (820 ft) — Built-in infrared illumination extends 24/7 monochrome surveillance capability; color minimum illumination 0.011 lx at F1.6 with AGC; B/W operation at 0 lux with IR active, enabling complete darkness operation without external lighting.
• Advanced Dynamic Range & Low-Light Processing — Super Dynamic mode with 144 dB maximum dynamic range, Intelligent Auto exposure, back light/high light compensation, fog compensation, and adaptive black stretch handle challenging outdoor lighting (dawn/dusk/backlit scenes) and weather conditions.
• IP66/IK10 Rated Outdoor Enclosure — Sealed against dust and high-pressure water jets; impact-resistant to 50 J unprotected surface, suitable for exposed rooftop, perimeter, and industrial deployments.
• PoE+ (IEEE 802.3at) Power Supply — Single ethernet cable delivers power and data; integrates seamlessly with standard PoE+ switches and midspans; reduces installation costs versus dual-cable or 24VAC configurations.
• FIPS 140-2 Level 3 Secure Element (NXP EdgeLock SE050F) — Hardware cryptographic module embedded in camera; signs firmware, secures credentials, and protects against tampering—mandatory for federal and regulated sites.
• NDAA Compliant — No prohibited manufacturers in bill of materials; meets Defense Counterintelligence and Security Agency requirements for US government and defense contractor deployments.
• Function-Limited Mode — Configurable operational constraints allow wider installation flexibility across sites with varying security policies or bandwidth limitations.

i-PRO WV-S66300-Z3LN Integration & Compatibility

The WV-S66300-Z3LN operates as a standards-compliant network camera and integrates with ONVIF-capable VMS platforms. Ethernet connectivity via 10Base-T/100Base-TX supports standard IP networks; PoE+ (IEEE 802.3at) power minimizes infrastructure changes. Audio support and motion detection (VMD) alongside scene change detection enable rule-based alerting and event logging in Milestone, Genetec, Exacq, and other major VMS platforms. Built-in AI analytics reduce external computing dependencies, making the camera suitable for both edge-processing and centralized analytics architectures.
