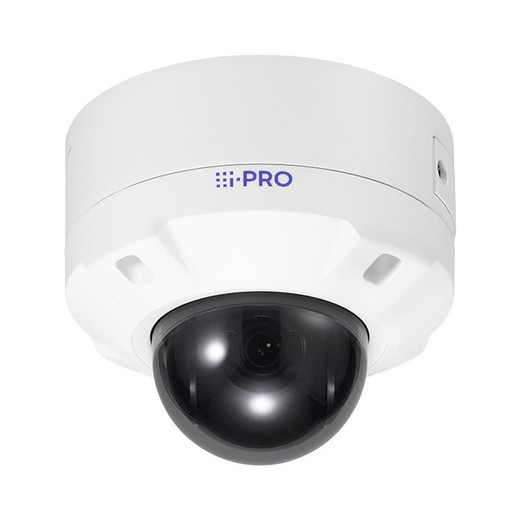

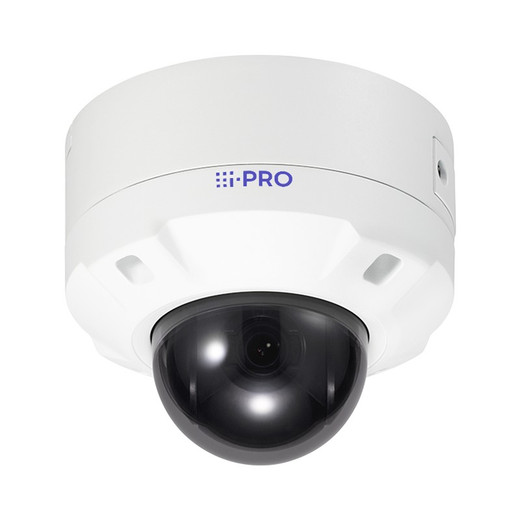

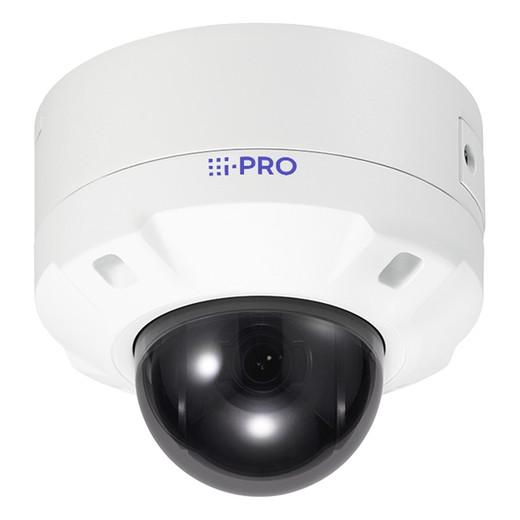

i-PRO WV-S65300-ZYG Overview
The i-PRO WV-S65300-ZYG is a 2MP (1920x1080) outdoor pan-tilt-zoom network camera purpose-built for demanding surveillance applications requiring vandal resistance and autonomous tracking. Housed in an IP66 and IK10 certified polycarbonate dome with aluminum die-cast body, this S-series PTZ camera integrates a built-in AI Engine for automatic object detection, tracking, and zoom—eliminating the need for manual operator intervention during wide-area monitoring. The camera's compact form factor (155mm diameter × 134mm height) enables discreet installation on low ceilings, while its engineered drive durability supports 1 million pan-tilt movements, significantly reducing maintenance costs in high-frequency surveillance deployments.
i-PRO WV-S65300-ZYG Key Features
- AI Auto-Tracking with Standard On-Camera Analytics: Automatically detects and tracks people and vehicles across a monitored area, with intelligent zoom to maintain subject detail. Eliminates operator fatigue and ensures no tracked object is missed, supporting both human-attended and autonomous surveillance workflows.
- 3.1x Optical Zoom with 2MP 1/2.8-inch CMOS Sensor: Fixed 2.9–9mm lens delivers 3.1x optical magnification without digital interpolation, preserving image quality at distance. 1/2.8-inch CMOS sensor (5.57mm H × 3.13mm V scanning area) captures full 1080p video at 30 fps.
- Exceptional Low-Light and Night Vision Performance: Color operation down to 0.02 lux (30IRE, F1.3, 1/30s, AGC:11) and 0.03 lux (50IRE, F1.3, 1/30s, AGC:11); monochrome as low as 0.002 lux (50IRE). Super Dynamic range of 144dB with adaptive black stretch, back light compensation, and high light compensation ensure detail in high-contrast outdoor scenes.
- IP66 Rated Outdoor Enclosure with IK10 Vandal Resistance: Polycarbonate resin dome (smoke tint) and aluminum die-cast main body withstand sustained rainfall, dust ingress, and deliberate mechanical impact. Suitable for exposed outdoor mounting on poles, eaves, and building perimeters.
- Engineered Drive Durability for Automated Surveillance: Pan-tilt drive unit rated for 1 million movements, reducing replacement frequency and field maintenance labor. Supports high-speed, high-frequency motion during continuous AI auto-tracking operations.
- FIPS 140-2 Level 3 Compliant Secure Element: Integrates NXP EdgeLock SE050F secure element for cryptographic key storage and firmware signing. Enables federal-grade encryption and authentication for compliance-sensitive deployments.
- Intelligent Auto with Fog Compensation and Noise Reduction: Automatic white balance and exposure tuning adapts to changing ambient light and weather conditions. Digital noise reduction and fog compensation enhance image clarity in poor visibility.
- Expandable On-Camera AI Applications: Ships with standard people/vehicle detection and auto-tracking. Supports installation of up to two additional AI applications (e.g., AI Privacy Guard, person/vehicle attribute detection) for extended analytics without external processing.
- Field-Friendly Installation Without Dome Removal: S-series outdoor dome design permits wiring and parameter configuration without opening the protective enclosure, accelerating on-site commissioning. Easy kitting packaging allows setup prior to physical mounting.
- NDAA Compliant Manufacturing: Meets U.S. federal acquisition security requirements, supporting deployment in government, military, and critical infrastructure contracts.
- Compact Footprint for Discreet Mounting: Weighs approximately 1.6 kg (3.53 lbs) with 155mm diameter, enabling installation on low ceilings and in constrained architectural environments without aesthetic compromise.
i-PRO WV-S65300-ZYG Integration & Compatibility
ONVIF-compliant network interface ensures broad VMS platform interoperability. Standard support for NEMA TS2 (sections 2.2.7–2.2.9) facilitates integration with traffic and transportation management systems. The built-in secure element and FIPS 140-2 Level 3 compliance enable deployment in environments requiring cryptographic authentication and tamper-evident firmware verification. Compact dimensions and standardized mounting bracket options support retrofit into existing outdoor surveillance architectures.
