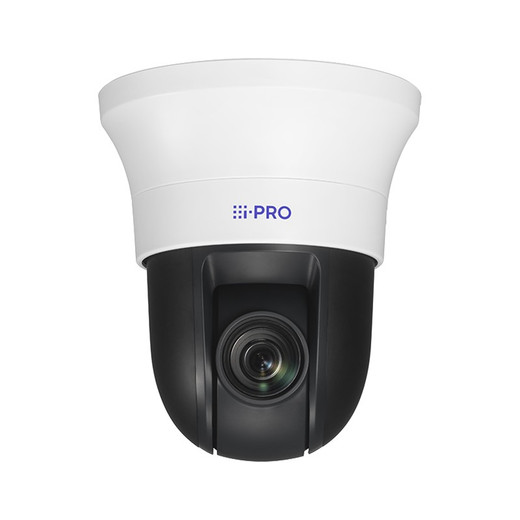

i-PRO WV-S61602-Z3 6MP INDOOR PTZ WITH AI ENGINE. 4.5-135MM 30X

i-PRO WV-S61602-Z3 Overview

The i-PRO WV-S61602-Z3 is a 6MP indoor pan-tilt-zoom (PTZ) camera engineered for security integrators and facility managers requiring AI-driven surveillance with cryptographic-grade security. This model combines a 30x optical zoom lens (4.5–135mm), advanced edge-based AI analytics, and FIPS 140-2 Level 3 compliance in a durable PTZ form factor suitable for indoor monitoring applications including lobbies, control rooms, warehouses, and critical infrastructure facilities.

i-PRO WV-S61602-Z3 Key Features

• 6MP Resolution with 1/2.8-inch CMOS Sensor: Delivers 6 megapixel clarity from a compact 1/2.8-inch type CMOS sensor with a 5.57 mm (H) × 3.13 mm (V) scanning area, enabling detailed object identification across mid- to long-range coverage zones.
• 30x Optical Zoom Lens (4.5–135mm): The motorized varifocal lens provides continuous 30x optical magnification without digital degradation, allowing operators to zoom from wide environmental context (4.5mm) to tight facial/license-plate detail (135mm) in a single smooth motion.
• Pan/Tilt Mechanism with Durable Gear Drive: Built-in motorized pan/tilt with robust gear mechanism ensures reliable repeated positioning and smooth tracking performance, rated for extended surveillance duty cycles.
• Edge-Based AI Engine with Up to 3 Analytic Applications: Onboard AI processing supports up to 3 concurrent edge analytics modules, including AI auto-tracking, AI sound classification (gunshot, yell, vehicle horn, glass break detection), and video motion detection across 4 selectable zones, reducing false alarms and bandwidth overhead.
• Low-Light Performance with Adaptive Illumination: Minimum illumination of 0.13 lx in color mode (30IRE, F1.8, 1/30s, AGC:11) and 0.012 lx in low-light extended shutter mode (50IRE, 16/30s, AGC:11), combined with fog compensation (0–8 levels), back light compensation, and high light compensation, ensures usable video in challenging environments. Intelligent Auto and Super Dynamic modes (0–31 range) maximize dynamic range up to 132 dB.
• FIPS 140-2 Level 3 Compliant Secure Element: Integrates EdgeLock® SE050F (NXP® Semiconductors) for cryptographic operations, securing video streams and firmware integrity—critical for government, financial, and critical infrastructure deployments requiring certified encryption.
• NDAA Compliance: Meets U.S. Department of Defense cybersecurity and supply-chain integrity requirements, enabling deployment in federally funded and security-sensitive projects.
• Dual Video Codec Support (H.265/H.264/MJPEG): Flexible compression options deliver bandwidth efficiency via H.265 (HEVC) or broad compatibility via H.264 (AVC), with MJPEG fallback for archive and motion-triggered recording, adaptable to network and storage constraints.
• Advanced Image Processing: Includes digital noise reduction (0–255 levels), adaptive black stretch, ATW white balance modes (ATW1/ATW2/AWC), and color/B&W (ICR) with Auto1/Auto2/Auto3 transitions for consistent output across lighting shifts.
• Scene Change Detection (SCD): Single-zone scene change detection identifies sudden environmental shifts (door opening, camera tampering, lighting changes), triggering alerts or recording mode changes for rapid incident response.
• Audio Monitoring and Detection: Integrated audio detection with AI sound classification capabilities (gunshot, yell, vehicle horn, glass break) enables acoustic threat detection without separate microphone infrastructure.

i-PRO WV-S61602-Z3 Integration & Compatibility

The WV-S61602-Z3 supports ONVIF protocol for broad VMS interoperability, including compatibility with Milestone Xprotect, Axis Camera Station, and other ONVIF-compliant management platforms. Network connectivity via 10Base-T/100Base-TX Ethernet allows direct IP integration into existing surveillance infrastructure. The camera supports video motion detection (VMD) on 4 independent zones and scene change detection (SCD) on 1 zone, enabling rule-based triggers within VMS systems. Audio detection and AI sound classification integrate with audio-aware VMS workflows for multi-modal threat detection. Consult the manufacturer's integration documentation and ONVIF profile support resources for specific VMS version compatibility and advanced feature enablement.
