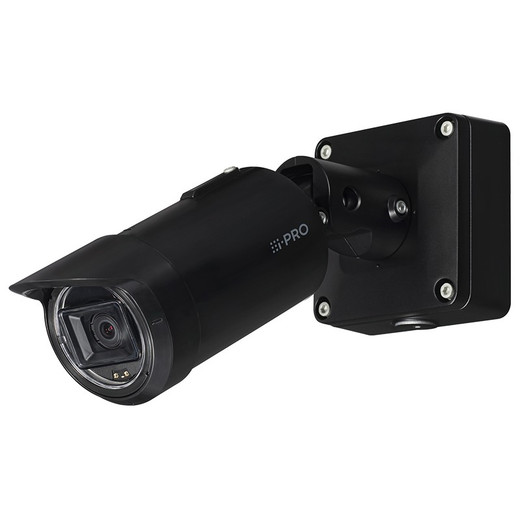

i-PRO WV-S15500-V3LN1 Overview
The i-PRO WV-S15500-V3LN1 is a 5MP outdoor bullet network camera purpose-built for vandal-prone environments and demanding surveillance deployments. This S-Series model combines high-resolution video capture with embedded AI analytics, color night vision, and enterprise-grade security compliance, making it suitable for perimeter protection, parking structures, and infrastructure monitoring where durability and intelligent detection are required.
i-PRO WV-S15500-V3LN1 Key Features
- 5MP Native Resolution — Captures detailed imagery at 5MP (2560 x 1920) with multiple streaming resolutions up to 3072 x 2304, supporting flexible bandwidth management and multi-stream deployment scenarios.
- Built-in AI Engine with Pre-Installed Analytics — Includes pre-configured AI analytics for human and vehicle detection with accuracy, eliminating the need for post-installation analytics licensing. Ready to support third-party AI applications.
- Color Night Vision Capability — Delivers color surveillance at ultra-low light levels (0.05 to 0.07 lux) without relying on IR alone, preserving color detail for facial identification and vehicle characterization in low-ambient conditions.
- Dual Video Compression — Supports H.265 and H.264 codec standards with Smart Coding (AI-driven compression optimization), reducing bandwidth and storage requirements without sacrificing frame rate or resolution.
- Built-in IR LED and Super Dynamic (132dB) — Integrated infrared illumination extends night visibility while Super Dynamic technology (132dB) manages extreme backlight and shadow detail simultaneously, ensuring usable video across rapidly changing lighting.
- IK10 Vandal Resistance — Rated IK10 (IEC 62262) impact resistance, withstanding mechanical shock and intentional tampering common in outdoor public-facing deployments.
- IP66 Environmental Sealing — IP66 and NEMA 4x rated water and dust protection with anti-condensation system (Temish element + heater + moisture absorption gel) for reliable operation from -40°C to +60°C (-40°F to 140°F).
- Wind Resistance to 40 m/s — Engineered for coastal, rooftop, and high-exposure installations with wind load rating up to 40 m/s (approximately 89 mph).
- ClearSight Coating — Polycarbonate front panel with ClearSight coating reduces glare, dust adhesion, and environmental interference, maintaining image clarity without frequent cleaning.
- FIPS 140-2 Level 3 Secure Element — Embeds EdgeLock SE050F (NXP Semiconductors) hardware security module for cryptographic operations, digital certificate support (GlobalSign third-party issued), and compliance with federal security standards.
- NDAA Compliance — Manufactured and sourced to meet National Defense Authorization Act restrictions, qualifying for U.S. government and critical infrastructure procurement.
- PoE and DC Power Options — Supports IEEE 802.3af PoE (Class 0 device, 11.5W) or DC 12V 1.0A supply (12W), with flexible deployment in PoE-switched or traditional power environments.
- Easy Kitting Packaging — i-PRO Configuration Tool (iCT) enables bulk configuration of up to 1024 cameras while units remain in protective packaging, streamlining installer workflow and reducing on-site setup time.
- Suspicious Sound Detection — External microphone support enables detection of gunshot, yelling, vehicle horn, and glass break events when paired with compatible audio sensors.
i-PRO WV-S15500-V3LN1 Integration & Compatibility
The WV-S15500-V3LN1 supports ONVIF-compliant VMS systems and third-party surveillance platforms. The camera outputs composite video (NTSC/PAL) via pin jack for legacy system integration and real-time adjustment during installation. The i-PRO Configuration Tool (iCT) allows centralized management and batch deployment across large multi-camera installations. All certifications—UL (UL62368-1), CE, FCC Part 15 Class A, EN55032, and EN55035—ensure compatibility with North American and European network infrastructure.
