HES MCK-2-3 Narrow Stainless Steel Switch Plate

HES MCK-2-3 Narrow Stainless Steel Switch Plate with DPDT Momentary Action

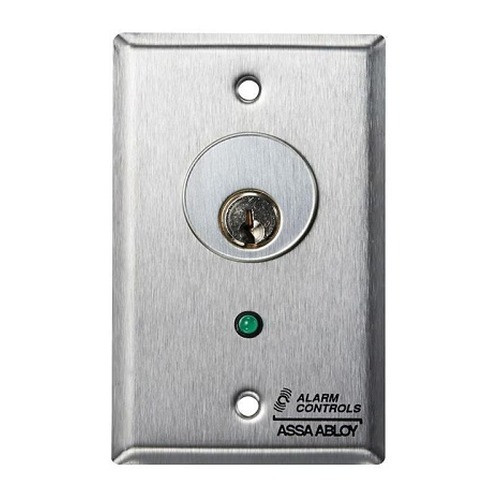

The HES MCK-2-3 is a narrow stainless steel mounting plate assembly designed for access control and electromagnetic locking system integration. Featuring a double-pole, double-throw (DPDT) momentary action switch with integrated green LED indicator, this component serves as a critical interface element in door control systems. The compact form factor is engineered for retrofit installations and new construction deployments where space constraints demand efficient mounting solutions around door frames and access control enclosures.

Key Features

• DPDT Momentary Action Switch: Double-pole, double-throw configuration enables flexible relay logic and circuit switching for access control applications
• Green LED Indicator: Integrated visual feedback confirms switch actuation and system status
• Narrow Stainless Steel Construction: 300-series corrosion-resistant stainless steel plate resists surface degradation in indoor and covered outdoor environments
• Compact Profile: Narrow form factor accommodates space-limited installations around door frames and wall-mounted enclosures
• Momentary Operation: Switch returns to neutral position when released, preventing unintended sustained activation in fail-safe and fail-secure architectures
• Integration-Ready Design: Standardized mounting pattern and electrical terminals support direct integration with electromagnetic locking systems

Technical Highlights

The MCK-2-3's narrow stainless steel plate design minimizes installation footprint while maintaining electrical reliability. The DPDT momentary switch configuration provides routing flexibility for multiple circuit control scenarios. The integrated green LED offers immediate visual confirmation of switch activation, enhancing user experience and system diagnostics. 300-series stainless steel construction ensures long-term durability in institutional, commercial, and light outdoor applications.

Applications

• Building access control systems and door entry interfaces
• Electromagnetic lock and strike integration
• Request-to-exit (REX) and push-to-open control points
• Retrofit installations with limited wall space
• Secure facility and commercial building access
