Digital Watchdog DWC-PPVF5Di1TW 5MP IR Outdoor Fisheye IP Camera

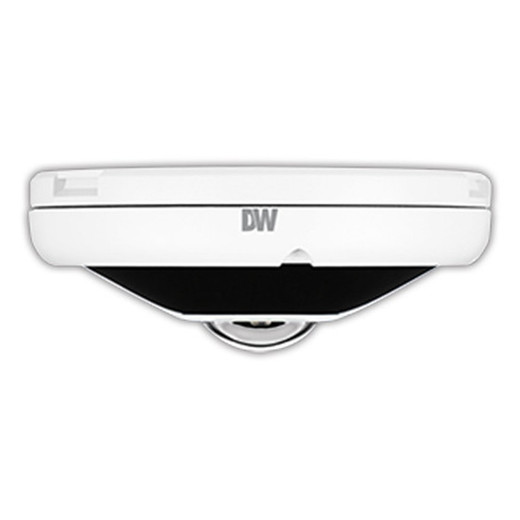

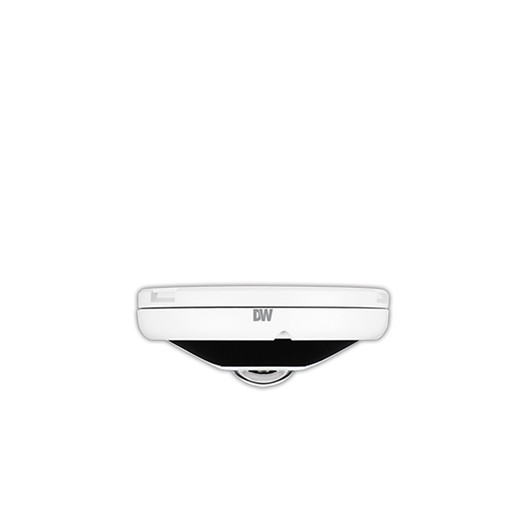

Digital Watchdog DWC-PPVF5Di1TW 5MP IR Fisheye Camera

The Digital Watchdog DWC-PPVF5Di1TW is a premium 5MP infrared fisheye IP camera engineered for comprehensive outdoor surveillance. With its 185° horizontal and vertical field of view, this camera eliminates blind spots and delivers 360° panoramic monitoring in a single device. Built on a robust 6.4MP 1/1.8" CMOS sensor with 2592 x 1944 active pixels, it captures exceptional detail across expansive areas while maintaining crisp, clear imagery in challenging lighting conditions.

Key Features

• 5MP resolution with 185° fisheye lens for panoramic coverage
• 80-foot Smart IR™ infrared night vision with extreme low-light performance (0.0 lux in B/W, 0.039 lux in color)
• IP66-rated aluminum die-cast housing with IK09 impact resistance for harsh outdoor environments
• PoE-powered with minimal consumption (max 8.7W) for simplified installation
• H.264, H.265, and MJPEG codec support with dual-stream capability at variable frame rates up to 30fps
• Micro SD/SDHC/SDXC card slot (up to 1TB) for onboard edge storage
• 16 programmable privacy masks for compliance and sensitive area protection
• Advanced motion detection with intelligent video analytics (IVA and IVA+ licensed features)

Technical Highlights

This camera excels in low-light environments with industry-leading minimum scene illumination specifications and Smart DNR™ 3D digital noise reduction, ensuring usable video in near-total darkness. Auto day/night switching transitions seamlessly between color and monochrome modes. The fixed 1.55mm lens with anti-flicker shutter and white balance controls adapts to diverse lighting conditions, while de-fog technology maintains clarity in adverse weather.

Network flexibility is built-in with IPv4 support, multiple streaming protocols (RTSP, HTTP, RTP), and compatibility with major VMS platforms including DW Spectrum® IPVMS, ExacqVision, and Milestone Systems. Dual-streaming at different rates and resolutions optimizes bandwidth, and bitrate control ranges from 100Kbps to 10Mbps for adaptive network deployment.

Operational features include 1 alarm input/output, audio input (1.0Vrms, 3K ohm), and flexible notification options via email, FTP, SD card recording, and alarm activation. Mirror/flip capability enables flexible mounting configurations.

Applications

• Outdoor perimeter surveillance for parking lots, loading docks, and building exteriors
• Wide-area monitoring of campuses, industrial facilities, and open grounds
• Low-light critical environments requiring extended infrared coverage
• High-resolution detail capture in security-sensitive installations

Karl Wilson

The DWC-PPVF5Di1TW targets integrators prioritizing single-camera panoramic coverage with minimal installation complexity. The 185° fisheye specification combined with 80-foot Smart IR delivers exceptional value for outdoor applications where traditional fixed-lens cameras require multiple units. H.265 codec support provides future-proofing for bandwidth-constrained networks, while the IK09 rating and IP66 enclosure ensure multi-year durability in demanding environments.

The 5-year warranty reflects Digital Watchdog's confidence in build quality. Edge storage via Micro SD mitigates NVR dependency, ideal for distributed surveillance architectures.
