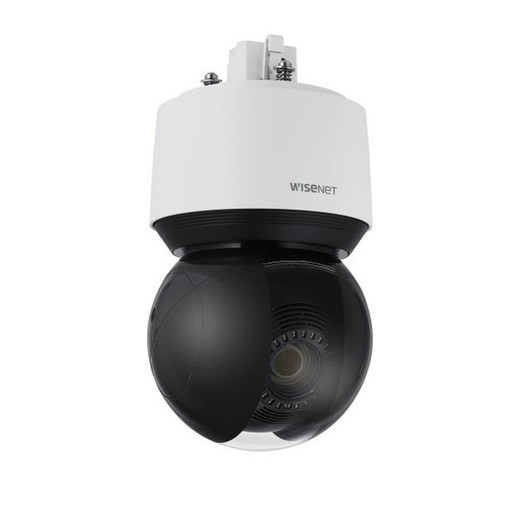

Hanwha XNP-6400 B1 Overview
The Hanwha XNP-6400 B1 is a fixed network surveillance camera engineered for long-range monitoring in demanding indoor and outdoor environments. Powered by WN7 processing architecture, this 2MP camera captures video at 60 fps and delivers extreme wide dynamic range (150dB) with day/night ICR capability, making it well-suited for facilities requiring extended focal length observation with superior low-light performance and exposure compensation across challenging lighting transitions.
Hanwha XNP-6400 B1 Key Features
- 2MP Resolution at 60 fps: Delivers 2 megapixel video capture at 60 frames per second, enabling smooth motion tracking and detailed forensic review in surveillance applications requiring high temporal resolution.
- 40x Optical Zoom with 4.25mm Fixed Lens: 170mm telephoto lens provides 40x magnification for long-range identification and monitoring, ideal for perimeter security, traffic enforcement, and facility oversight across large areas without repositioning.
- Extreme WDR (150dB): Advanced dynamic range compensation handles stark contrasts between backlit and shadowed areas simultaneously, critical for parking structures, building entrances, and scenes with direct sunlight and deep shadows.
- Day/Night ICR with Lens Heater: Integrated motorized IR-cut filter (ICR) switches automatically for monochrome night vision; built-in lens heater prevents condensation and ice buildup in wet, cold, or snow-prone environments, ensuring year-round optical clarity.
- Intelligent Analytics with Object Auto-Tracking: WN7-powered analytics detect and classify persons and vehicles, with automatic target lock-track capability for continuous monitoring of identified subjects, reducing manual PTZ operation and enabling proactive alerting.
- Multi-Codec Support (H.265, H.264, MJPEG): Flexible compression options optimize bandwidth and storage; H.265 reduces bitrate by up to 50% vs. H.264 while maintaining quality, essential for high-frame-rate streaming over constrained networks.
- Advanced Image Tuning (BLC, HLC, SSDR): Backlight compensation (BLC), highlight compensation (HLC), and smart super dynamic range (SSDR) provide additional exposure control beyond WDR, accommodating niche lighting scenarios like security checkpoints and toll booths.
- IP66 and IK10 Vandal Resistance: Sealed against water ingress and dust; IK10 impact rating withstands mechanical stress from vandalism or rough handling, meeting NEMA 4X (stainless steel) environmental standards for harsh outdoor deployments.
- NEMA-TS 2 Compliance (2.2.8, 2.2.9): Meets US Department of Transportation traffic signal standards for reliability, interoperability, and performance monitoring in intelligent transportation systems.
- HPoE Injector Included: Powered by Hanwha Hybrid PoE; injector supplied in box eliminates external power supply requirements for many installations, simplifying deployment and reducing cable runs.
- SPM-4210 I/O Box Compatibility: Expandable via optional SPM-4210 Network I/O Box, which provides 4 configurable alarm I/O ports, dual audio I/O, and PoE powering for remote relay logic and audio capture without running direct wires to camera location.
Hanwha XNP-6400 B1 Integration & Compatibility
The XNP-6400 B1 integrates with Hanwha's broader IP surveillance ecosystem and supports standard protocols for third-party VMS platforms. Compatible with the SPM-4210 Network I/O Box for expanded I/O and audio connectivity via a single Ethernet run, enabling alarm and audio distribution at a distance from the camera. Consult your VMS documentation for ONVIF Profile S/T/G alignment and codec support. Mounting and installation follow standard fixed camera practices; consult integrator guidelines for optimal zoom lens deployment and thermal clearance.
Hanwha XNP-6400 B1 Package Contents
- Hanwha XNP-6400 B1 Camera
- HPoE Injector
