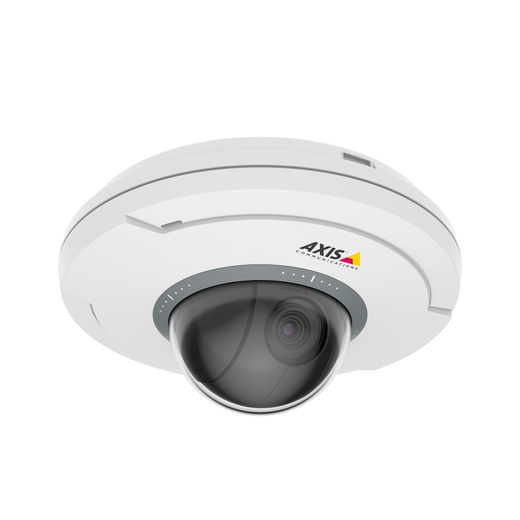

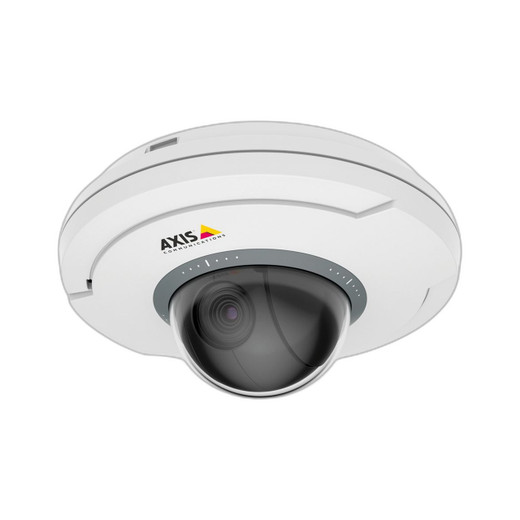

Axis M5075-G 2MP 5x Optical Zoom Indoor PTZ Camera

Axis M5075-G 2MP 5x Optical Zoom Indoor PTZ Mini Camera

The Axis M5075-G (model 02347-004) is a compact indoor PTZ camera engineered for organizations requiring flexible surveillance in confined spaces. Delivering 1920x1080 (2MP) resolution at up to 60fps, this mini dome camera combines discreet form factor with powerful imaging capabilities, making it ideal for retail environments, educational institutions, and small-to-medium business deployments.

Key Features

• 5x optical zoom with 12x digital zoom for versatile framing and detail capture
• Pan/tilt range of ±179° (pan) and 90° (tilt) for comprehensive coverage
• Forensic WDR (Wide Dynamic Range) handles complex lighting scenes with clarity in shadows and highlights
• Ultra-low 0.1 lux minimum illumination with IR night vision for 24/7 monitoring
• Built-in microphone with audio detection and analytics (scream, glass break detection)
• Zipstream technology reduces bandwidth and storage requirements without compromising image quality
• H.264 video compression for efficient encoding and transmission

Technical Specifications

• Imaging: 1/2.8" CMOS sensor, 1920x1080 resolution, 60fps maximum frame rate
• Optics: 2.2–11.0mm focal length, 71–14° horizontal and 40–8° vertical field of view
• Power & Connectivity: PoE (Power over Ethernet) Class 3, wired connectivity
• Durability: IP51 rated for dust and splash resistance; operates 0–45°C
• Audio: Built-in microphone with detection capabilities
• Security: Signed firmware support for authenticated operation

Applications

The M5075-G excels in retail environments for monitoring sales floors and checkout areas, educational settings such as classrooms and hallways, office buildings requiring discreet surveillance, and hospitality venues needing flexible camera positioning. Its compact mini dome design minimizes visual impact while maintaining professional surveillance standards.

Why Choose the M5075-G

Axis M5075-G combines PTZ flexibility with intelligent video analytics and audio detection, reducing reliance on additional sensors. Forensic WDR ensures usable video in challenging mixed-lighting scenarios common in retail and hybrid indoor/outdoor spaces. PoE power delivery simplifies installation, requiring only a single network cable for power and data, reducing infrastructure costs and deployment time.

Karl Wilson

The M5075-G represents a pragmatic choice for organizations balancing space constraints with PTZ capability. The 5x optical zoom paired with Forensic WDR enables effective identification at distance without resorting to purely digital zooming, which degrades image quality. The 60fps capability at 2MP ensures smooth motion capture during rapid pans and tilts, critical for retail loss prevention.

Built-in audio detection transforms the camera into a multi-modal sensor, useful for proactive security alerting. The PoE Class 3 power budget supports full PTZ movement and IR illumination on a single cable, eliminating the need for separate power infrastructure. For organizations already standardized on Axis platforms, the M5075-G integrates seamlessly with enterprise video management systems and analytics suites.

Zipstream efficiency means reduced server storage and bandwidth overhead—particularly valuable in cost-conscious deployments.

Download Product Datasheet (PDF)
