Axis Q3558-LVE Dome Camera

Axis Communications Q3558-LVE Overview

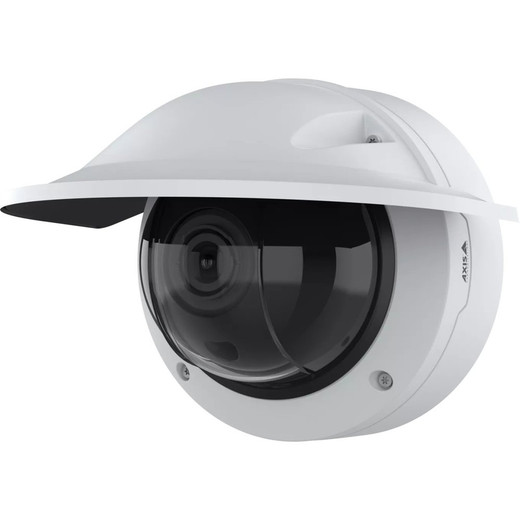

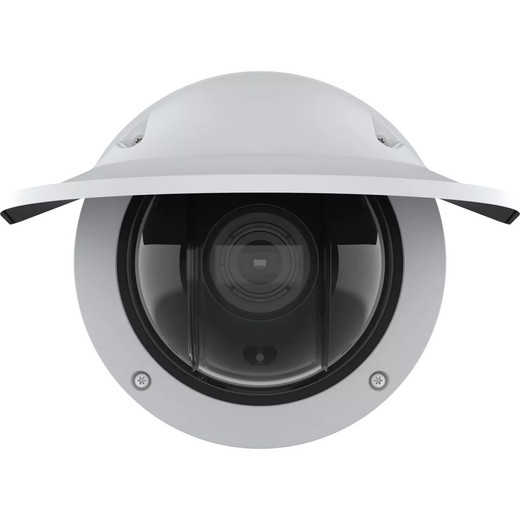

The Axis Q3558-LVE is a 4K UHD outdoor dome camera designed for comprehensive surveillance in challenging lighting and dynamic scenes. Model 03206-001 delivers 3840×2160 resolution with advanced video compression, Forensic WDR up to 120dB, and embedded deep learning processing for real-time analytics. This camera combines varifocal optics, IR night vision, and multi-codec support to meet demanding integrator requirements in retail, transportation, critical infrastructure, and large-scale outdoor deployments.

Axis Communications Q3558-LVE Key Features

• 4K UHD Resolution with Multi-Format Support: Captures up to 3840×2160 (16:9) at 25/30 fps with Forensic WDR enabled, or 50/60 fps without WDR. Supports 16:10 (1280×800) and 4:3 (2880×2160) aspect ratios for flexible deployment scenarios and corridor format orientation.
• Forensic WDR up to 120dB Dynamic Range: Advanced wide dynamic range processing delivers forensic-quality images in mixed lighting, backlighting, and high-contrast scenes. Maintains detail in both shadows and bright areas without motion artifacts.
• Varifocal 6.3–13mm Lens with 2x Optical Zoom: Remote zoom and focus control enables field adjustment without physical intervention. Horizontal field of view ranges 104° (wide) to 50° (telephoto); minimum focus distance 0.50m accommodates close-range and perimeter coverage.
• Multi-Codec Video Compression: H.265 (HEVC) Main Profile, H.264 (MPEG-4 AVC) Baseline/Main/High profiles, and AV1 support. Axis Zipstream technology reduces bandwidth 50–80% across all codecs while maintaining forensic quality. Supports up to 20 configurable video streams with VBR, ABR, and MBR modes.
• Day/Night IR Illumination with Automatic Filter: Minimum illumination 0.04 lux (color, F1.6, 50 IRE) and 0.007 lux (B/W, F1.6, 50 IRE). Automatic IR-cut filter switches seamlessly between day and night modes. 0 lux operation with IR illumination engaged for 24/7 coverage in zero-light environments.
• Deep Learning Processing Unit (DLPU) and Analytics: Embedded ARTPEC-9 System-on-Chip with dedicated deep learning processor enables on-camera analytics without separate compute. Supports real-time object detection, classification, and event triggering for efficient bandwidth and storage use.
• Forensic-Grade Image Processing: 2D (spatial) and 3D (temporal) noise reduction preserve fine detail in low-light. Pan ±180°, tilt -42° to +80°, rotation ±180° (including corridor format). Controllable saturation, contrast, brightness, sharpness, white balance, exposure zones, barrel distortion correction, privacy masks, and dynamic text overlay.
• Multi-View Streaming and Low-Latency Mode: Up to 7 individually cropped output areas from a single stream. Low-latency mode support for real-time monitoring and PTZ-style control. Video streaming indicator confirms active transmission.
• Robust System Architecture: 4GB RAM and 8GB Flash storage on ARTPEC-9 SoC. Signal-to-noise ratio >55dB. 2.9µm pixel size on 1/1.2" progressive RGB CMOS sensor optimizes light sensitivity and detail in compact 4K format.
• Flexible Shutter Control: Electronic shutter range 1/67500s to 2s enables precise exposure tuning in variable light. P-Iris control with lock and target aperture functions optimize depth-of-field and iris response.
• Recommended Accessories Include: AXIS I/O Indication LED for surveillance event indication, AXIS Safety Wire 3m for pendant/ceiling security, and AXIS T8415 Wireless Installation Tool for field commissioning. AXIS D1110 4K Video Decoder with HDMI output decodes on-camera streams to displays and legacy systems.

Axis Communications Q3558-LVE Integration & Compatibility

The Q3558-LVE integrates with ONVIF-compliant video management systems, AXIS Camera Station, Milestone XProtect, and third-party platforms via standard RTSP/HTTP streaming. ARTPEC-9 deep learning processing supports custom analytics deployment and API-driven event integration. Mounting flexibility accommodates ceiling, wall, and pendant installation in indoor and outdoor environments. Axis partners provide expert reseller, system integrator, and installer support across more than 150 countries; consult the Axis partner locator for local deployment assistance and technical configuration.
