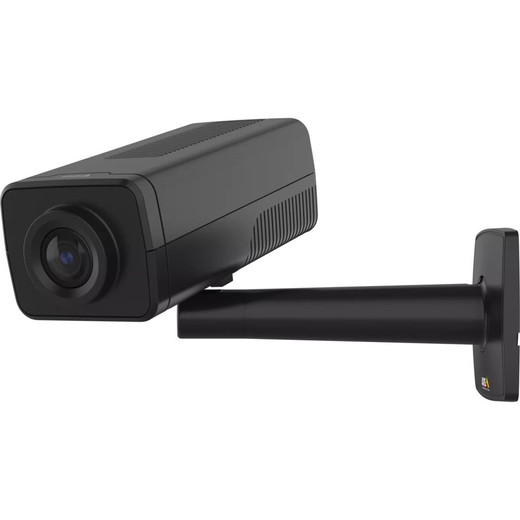

Axis Q1728 Box Camera 8 MP

Axis Communications Q1728 Block Camera Overview

The Axis Q1728 (MPN 02839-001) is an 8MP block-form network surveillance camera designed for enclosure-ready deployment in demanding indoor and mixed-light environments. Built on the ARTPEC-9 system-on-chip, this AI-powered camera delivers 4K resolution with a large 1/1.2" progressive-scan sensor optimized for superior light sensitivity and consistent performance in variable lighting conditions. The integrated Deep Learning Processing Unit (DLPU) enables advanced edge-based analytics without requiring external compute infrastructure.

Axis Q1728 Block Camera Key Features

• 4K Resolution with 8MP Sensor: Captures up to 3840×2160 (16:9), 2560×1600 (16:10), and 2592×1944 (4:3) at full frame rates. The 1/1.2" progressive-scan RGB CMOS sensor with 2.9µm pixel size ensures excellent detail and low-light performance without sacrificing image quality.
• Superior Low-Light Performance: Combines Lightfinder 2.0 technology with day/night capability via automatic IR-cut filter and hybrid IR filter for optimized imaging across 24/7 operations. Delivers consistent performance in challenging lighting without excessive noise or artifacting.
• Varifocal IR-Corrected Lens: Includes a 5.9–13.3mm varifocal lens with F1.6–2.9 aperture, offering 108°–49° horizontal field of view. Features P-iris control, remote zoom and autofocus, and IR correction to maintain focus accuracy with infrared illumination. Minimum focus distance of 0.5m enables close-range detail capture.
• Forensic WDR and Image Enhancement: Forensic Wide Dynamic Range processing handles extreme lighting contrasts typical in mixed-illumination scenes. Additional processing includes barrel distortion correction, defogging, electronic image stabilization, and scene profiles for optimized performance across deployment scenarios.
• High-Performance Video Compression: Supports H.264 (Baseline, Main, High Profile), H.265 (Main Profile), and AV1 codecs with Axis Zipstream technology for efficient bandwidth and storage utilization. Delivers up to 50/60 fps at 8MP without WDR, or up to 25/30 fps in all resolutions with WDR enabled. Up to 20 unique, independently configurable video streams enable simultaneous delivery to multiple endpoints.
• Deep Learning-Powered Analytics: Onboard DLPU runs preinstalled Axis Object Analytics for real-time object detection and counting. Includes Axis Image Health Analytics for automated image quality monitoring and Axis Live Privacy Shield for AI-based dynamic masking without server overhead.
• Enterprise-Grade Cybersecurity: Axis Edge Vault with FIPS 140-3 Level 3 certification provides cryptographic key management and secure storage for sensitive operations. Supports firmware signing, secure boot, and standards-based authentication protocols for compliance-critical deployments.
• Flexible Connectivity and I/O: Audio input for integrated sound monitoring. Supervised I/O port for external sensors and alarm devices. RS422/485 serial port for legacy system integration. microSD memory card slot supports optional local video storage for extended recording or failover scenarios.
• PoE and DC Power Options: Powered via IEEE 802.3af Type 1 Class 3 PoE (standard midspan/injector) or 10–28V DC with optional redundancy for uninterrupted operation. Eliminates need for separate power cabling in PoE-equipped networks.
• Shock Detection and Tampering Alarm: Built-in accelerometer detects physical shock events. Active tampering alarm identifies lens obstruction, spray, or intentional interference for security-critical installations.
• Enclosure-Ready Design: Compact box form factor fits within standard network enclosures from Axis and compatible third-party manufacturers. Includes black stand for flexible wall or ceiling mounting without additional hardware.

Axis Q1728 Block Camera Integration & Compatibility

The Q1728 operates as a standards-compliant ONVIF network camera, integrating with enterprise VMS platforms, AXIS Camera Station, and third-party management systems. MQTT support enables seamless connectivity to IoT and edge-compute environments. Video output includes HDMI option via optional decoder (up to 50/60 fps at maximum 1080p) for local monitoring in control rooms or integration with legacy display systems. The camera supports configurable frame rates and bandwidth profiles (VBR/ABR/MBR) for dynamic network adaptation.

Axis Q1728 Block Camera Package Contents

• AXIS Q1728 Block Camera (02839-001)
• Black stand for wall and ceiling mounting
