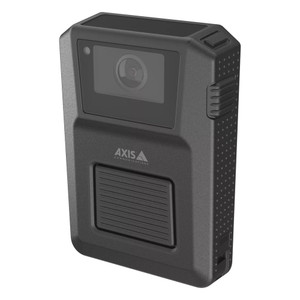

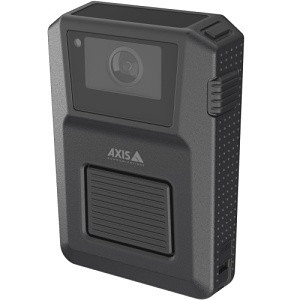

Axis W120 Body Worn Camera

Axis Communications AXIS W120 Body Worn Camera Overview

The AXIS W120 is a fully connected wearable body camera designed for mobile law enforcement, security personnel, and field operations requiring real-time video and audio documentation. Model 02583-054 includes five units with built-in LTE modem, WiFi, and Bluetooth connectivity enabling direct streaming and recording without tethered infrastructure. The device delivers 1080p video capture with electronic image stabilization, clear audio with noise suppression, and continuous GNSS-based location tracking for comprehensive field accountability and forensic integrity.

Axis Communications AXIS W120 Key Features

• Integrated LTE Connectivity: Built-in CAT4 LTE modem with US band support (B2, B4, B5, B12, B13, B14, B25, B26, B66, B71) and EU band support (B1, B3, B7, B8, B20, B28) enables direct video streaming and live-to-system transmission without auxiliary hardware.
• Multi-Protocol Wireless: Simultaneous WiFi 5 (802.11a/b/g/n/ac at 2.4GHz and 5GHz), Bluetooth 5.1 (Low Energy and Classic), and LTE ensure reliable connectivity across diverse deployment environments.
• 1080p Video with Image Stabilization: Captures 1080p (2 MP) video with electronic image stabilization to maintain forensic clarity and usability during mobile operations and movement.
• Real-Time Audio and Noise Suppression: Integrated microphone with active noise suppression delivers clear two-way audio for field communication and event documentation.
• Extended Battery Life: Li-ion 3600 mAh battery provides up to 12.5 hours operating time at 1080p, up to 15 hours at 720p, and up to 29 hours in standby mode. USB-C fast charging supports 0–15°C in <6.5 hours, 15–30°C in <4 hours, and 30–40°C in <5.5 hours.
• Built-in GNSS Positioning: GPS, GLONASS, Galileo, and BeiDou receivers continuously track device location for accountability, incident mapping, and post-incident forensic reconstruction.
• IP67 Rugged Design: Plastic casing rated IP67 and drop-tested to 2 meters withstands field use, moisture, and environmental hazards common to law enforcement and security operations.
• KlickFast Mounting System: Standardized mounting interface enables rapid attachment to uniforms, vests, or equipment with secure positioning and quick-release capability.
• Color LCD Status Display: 0.96-inch color IPS TFT display (160×80 pixels) provides the wearer with real-time status indicators, battery level, connectivity state, and recording confirmation.
• Automatic Recording Activation: Can be configured to automatically begin recording upon unholstering, eliminating manual activation delays and ensuring critical moments are captured.
• AES-256 Encryption and Secure Storage: 64 GB non-volatile internal storage with AES-256 encryption protects recorded video and audio from unauthorized access during transport and evidence handling.
• Flexible Pre- and Post-Buffer Configuration: Configurable audio and video prebuffer (0, 15, 30, 60, 90, 120 seconds) and postbuffer (0, 10, 30, 60 seconds) enables capture of events preceding and following activation.
• 3-Axis Motion Sensing: Integrated 3-axis gyroscope, accelerometer, and compass provide motion context and orientation data for incident reconstruction and analytics.

Axis Communications AXIS W120 Environmental Specifications

Operating temperature range of −20°C to 50°C (−4°F to 122°F) with intermittent maximum 55°C (131°F) supports year-round deployment in temperate and cold climates. Operating humidity 10–100% RH (condensing) ensures functionality in fog, rain, and high-moisture environments. Charging temperature range 0–40°C (32–104°F) with 5–95% RH non-condensing humidity supports field charging stations. Storage conditions of −20°C to 45°C (−4°F to 113°F) for short-term (<3 months) and 23–27°C (73–81°F) for long-term (>3 months) optimal storage at 25°C (77°F) and 5–95% RH non-condensing humidity.

Axis Communications AXIS W120 Network Security and Compliance

Supports IEEE 802.1AR network security, HTTPS/HSTS, and TLS v1.2/v1.3 for secure streaming and data transmission. WPA/WPA2-PSK WiFi security and Bluetooth 5.1 connectivity comply with modern wireless standards. Vendor-specific USB class support enables secure integration with docking stations and accessory hardware. SIM card interface accepts Nano-SIM (4FF) for carrier-based LTE connectivity with minimal form-factor impact.

Axis Communications AXIS W120 Connectivity and Throughput

Camera-to-system-controller throughput rated at 100 Mbit/s enables real-time streaming to management platforms and live-response centers. Pogo pin pads support USB Type-C connector for charging, accessory connectivity, and data offload without requiring micro-USB adapters.

Axis Communications AXIS W120 Package Contents

• 5× AXIS W120 Body Worn Camera units (Black color, part number 02583-054)
