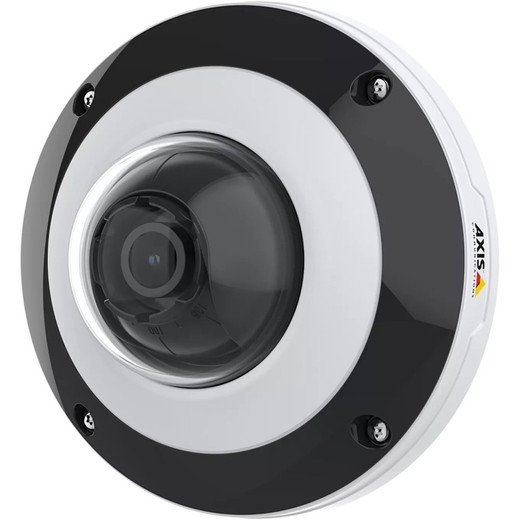

Axis Communications F4105-LRE Mini-dome Sensor Bulk Overview
The Axis F4105-LRE is a compact mini-dome sensor designed for scalable multi-camera surveillance deployments. This bulk 8-pack (part number 02364-021) provides economical ordering and reduced storage and transport costs, making it ideal for integrators and installers managing large-scale camera rollouts. The sensor operates across both day and night capture modes with individually adjustable infrared illumination, delivering reliable performance in low-light and indoor/outdoor environments.
Axis F4105-LRE Key Features
- 1080p HD Resolution: Captures 1920x1080 HDTV video with a 1/2.8-inch progressive-scan RGB CMOS sensor for sharp detail in surveillance scenes.
- Wide Field of View: 110° horizontal and 60° vertical field of view at 1080p enables broad area coverage from compact dome housing; 70° horizontal and 39° vertical at 720p for alternative aspect ratio deployment.
- Individually Adjustable IR Illumination: Two power-efficient long-life 940nm IR LEDs provide automatic day/night switching via removable infrared-cut filter. IR reach extends 10+ meters (33+ feet) depending on scene reflectivity. Operates at full power to 45°C (113°F) with IR on; extended range -30°C to 55°C without IR.
- High Frame Rate Capture: Supports up to 60 fps at 1080p and 180 fps at 720p (60/50 Hz selectable), enabling smooth video for motion-intensive monitoring and frame-by-frame analysis.
- Full Pan/Tilt/Rotation Adjustment: ±180° pan, 120° tilt, and ±90° rotation built into sensor unit for flexible mounting orientation and field-of-view positioning without repositioning brackets.
- Low-Light Sensitivity: Achieves 0.3 lux at 50 IRE and F2.0 in color mode; 0 lux with IR illumination active, enabling deployment in near-dark and underground environments.
- Industrial Durability: IK10-rated polycarbonate clear dome resists impact and vandalism. IP66, IP67, and IP6K9K ratings provide complete dust protection and sustained high-pressure water jet resistance (horizontal and vertical wash-down capable).
- Wide Operating Range: -30°C to 55°C (-22°F to 131°F) with IR off; -30°C to 45°C (-22°F to 113°F) with IR on. Storage rated to -40°C (-40°F). Supports 10-100% RH condensing humidity without performance degradation.
- Ultra-Compact Form Factor: 112mm diameter x 54mm height dome with 116mm cable length (4.55 in) minimizes visual profile and simplifies recessed or low-clearance ceiling installations. 240g weight reduces mounting hardware stress.
- Minimal Power Draw: Typical consumption 1.9W; maximum 4.16W enables reliable PoE deployment on standard network infrastructure without high-current demands.
- SMA Connector: Direct SMA connection for integration with Axis F9114 main units and compatible capture hardware; simplifies cabling and reduces connector count in multi-sensor systems.
Axis F4105-LRE Integration & Compatibility
The F4105-LRE sensor integrates with Axis F91 series main units and requires one AXIS TU6004-E cable or AXIS TU6005 plenum-rated cable per sensor for data and power transmission. The compact SMA connector design supports direct integration into existing Axis modular surveillance systems. Bulk 8-pack ordering allows simultaneous deployment of coordinated multi-sensor arrays across facilities, reducing complexity in large-scale video management system integration.
Axis F4105-LRE Package Contents
- Installation guide
- Lens tool
