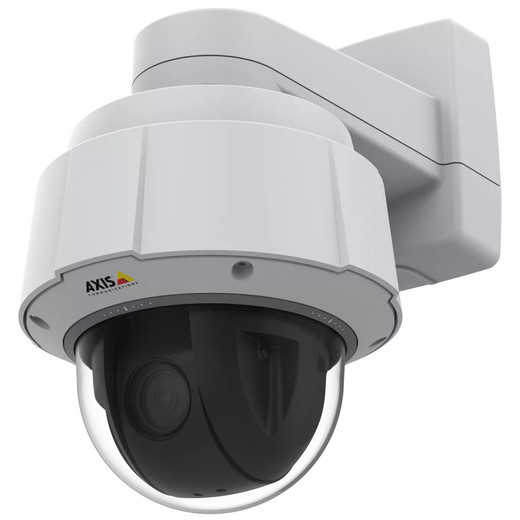

Axis AXIS Q6075-E PTZ Camera

Axis Communications Q6075-E 60 Hz Overview

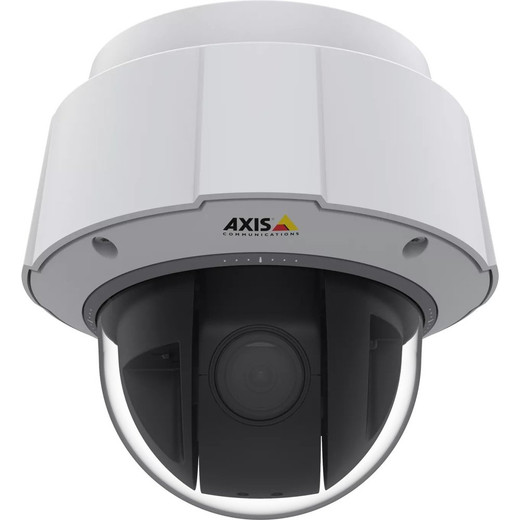

The Axis Q6075-E 60 Hz is an outdoor-ready PTZ network camera engineered for surveillance applications requiring extended field-of-view coverage and precise object tracking. Designed for 60 Hz power systems across North America, Brazil, Japan, and Korea, this camera combines HDTV 1080p resolution with 40x optical zoom to capture both wide overviews and fine details in a single deployment. Built on a 1/2.8-inch progressive-scan CMOS sensor, the Q6075-E excels in variable lighting conditions and delivers secure, bandwidth-efficient streaming with advanced firmware integrity protections.

Axis Q6075-E 60 Hz Key Features

• HDTV 1080p Resolution with 40x Optical Zoom: Captures full 1920×1080 video at up to 60 fps with motorized zoom lens (4.25–170 mm, F1.6–4.95). Horizontal field of view ranges from 65.1° wide to 2.00° telephoto; vertical 39.1° to 1.18°. Autofocus and auto-iris enable seamless focus and exposure across the zoom range.
• Axis Lightfinder 2.0 Technology: Delivers low-light video with saturated colors and sharp moving object detail. Achieves color performance at 0.1 lux (F1.6, 30 IRE) and black-and-white performance at 0.002 lux (F1.6, 30 IRE)—enabling reliable 24/7 surveillance in challenging illumination.
• Autotracking 2 with Click-and-Track and Orientation Aid: Intelligent autotracking with click-to-track functionality simplifies operator engagement. Built-in orientation aids assist with quick camera positioning and active object following, reducing manual pan-tilt control requirements.
• H.264 and H.265 Video Compression with Zipstream: Supports H.264 (Baseline, Main, and High Profiles) and H.265 Main Profile encoding. Axis Zipstream technology in both codecs significantly reduces bandwidth and storage requirements while maintaining image quality—critical for cost-effective long-term recording.
• Multiple Configurable Video Streams: Delivers individual H.264, H.265, and Motion JPEG streams with controllable frame rate and bandwidth. VBR, ABR, and MBR modes provide flexibility for diverse network and recording scenarios.
• Day/Night Capability with Automatic IR-Cut Filter: Automatically removable infrared-cut filter and manual shutter control (1/11000 s to 1/3 s @ 60 Hz) ensure smooth transition between day and night modes without user intervention.
• TPM and FIPS 140-2 Level 2 Certification: Includes Trusted Platform Module (TPM) and FIPS 140-2 Level 2 certification for cryptographic operations. Signed firmware and secure boot protect against firmware tampering and ensure operating system integrity.
• Built-in Analytics Capabilities: Integrated analytics enable detection and response to motion, events, and behavioral patterns without requiring external analytics servers.
• Extensive Image Controls: Manual shutter time, compression, color, brightness, sharpness, white balance, and exposure control. Supports rotation (0°, 180°), text and image overlay, polygon privacy masks, and electronic image stabilization for professional deployment.
• Outdoor-Ready Design: Purpose-built for outdoor surveillance with weather-resistant construction and low-light optimization suitable for perimeter security, traffic monitoring, and large-area coverage.

Axis Q6075-E 60 Hz Integration & Compatibility

The Q6075-E supports standard ONVIF protocols, enabling integration with third-party video management systems (VMS) and network cameras. Compliance with ONVIF ensures interoperability across diverse surveillance platforms and control architectures. As a network camera, the device operates over standard IP infrastructure, simplifying deployment in existing enterprise surveillance networks. Multiple individually configurable video streams accommodate VMS clients with varying bandwidth and codec preferences.

Axis Q6075-E 60 Hz Warranty

Axis Communications provides a 5-year warranty covering manufacturing defects and equipment failure under normal operating conditions.
