Altronix MOM5C 5-Output 12VDC Distribution Module

Altronix MOM5C 5-Output 12VDC Distribution Module

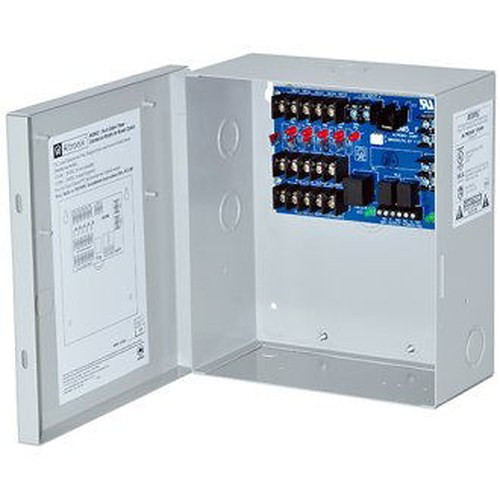

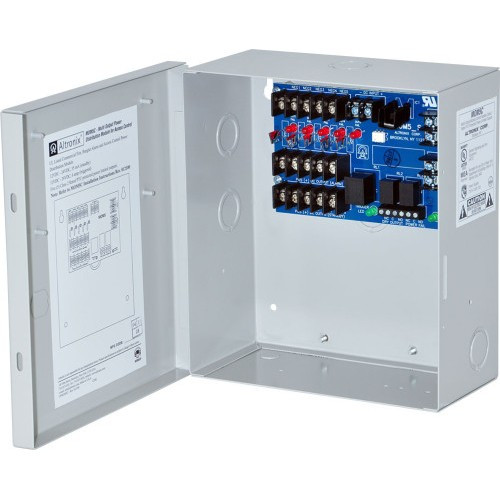

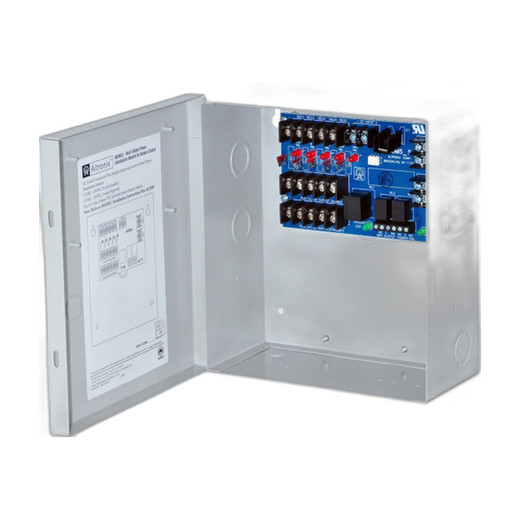

The Altronix MOM5C is a compact 5-output 12VDC distribution module designed to supply regulated power to multiple security devices from a single source. This UL Listed module accepts 12VDC input and provides five isolated 12VDC outputs, each capable of delivering up to 2A of current. The MOM5C simplifies power distribution architecture in access control, surveillance, and intrusion detection installations where multiple devices require independent, protected power feeds.

Key Features

• Five isolated 12VDC outputs for multi-device power distribution
• 2A maximum current per output at 12VDC
• 12VDC input voltage compatibility with standard security system power supplies
• UL Listed for use in professional security installations
• Compact form factor suitable for DIN rail or cabinet mounting
• Lifetime Limited Warranty coverage
• Independent output protection and isolation

Applications

• Access control systems requiring power distribution to multiple credential readers or strike devices
• Surveillance deployments needing regulated 12VDC feeds to cameras, illuminators, and auxiliary equipment
• Intrusion detection system installations with distributed sensor and control module power requirements
• Integrated security systems consolidating power management for door locks, sensors, and controllers
• Equipment racks and control panels requiring centralized 12VDC distribution with circuit isolation

Specifications

• Input Voltage: 12VDC
• Output Voltage: 12VDC (all five outputs)
• Number of Outputs: 5
• Maximum Current Per Output: 2A @ 12VDC
• Maximum Total Current: 2A @ 12VDC
• Approvals: UL Listed
• Warranty: Lifetime Limited Warranty
