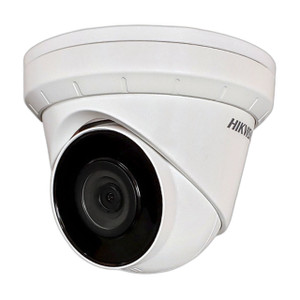

Hikvision ECI-T24F2 4MP Outdoor Turret IP Camera

Hikvision ECI-T24F2 4MP Outdoor Fixed EXIR Turret IP Camera

The Hikvision ECI-T24F2 is a professional-grade 4MP outdoor turret camera designed for comprehensive surveillance in demanding environments. Featuring a compact, durable turret form factor with IP67 weatherproofing, this camera delivers high-resolution imaging and intelligent night vision capabilities suitable for parking lots, building perimeters, entry points, and general outdoor security applications.

Key Features

• 4MP resolution (2560 × 1440) at up to 20 fps for detailed image capture
• Fixed 2.8mm lens with 98° horizontal field of view and F2.0 aperture
• Advanced EXIR technology with IR LED range up to 30m for true 24/7 surveillance
• Smart IR supplemental light with automatic intensity adjustment
• 120 dB wide dynamic range (WDR) for balanced exposure in challenging lighting
• IP67 rated weatherproof construction for harsh outdoor conditions
• PoE powered (802.3af Class 3) for simplified installation and power management
• H.265/H.264 video compression with multiple codec options to optimize bandwidth and storage
• Built-in microphone with multi-format audio compression support
• MicroSD card slot supporting up to 256GB onboard storage with ANR capability
• Motion detection, video tampering, and exception-based alarm triggers
• Full pan/tilt/rotate mechanical adjustment (Pan 0-360°, Tilt 0-75°, Rotate 0-360°)

Technical Highlights

The ECI-T24F2 employs a 1/3" progressive scan CMOS sensor with intelligent image enhancement including BLC (backlight compensation) and 3D DNR (digital noise reduction) to maintain image quality across varying conditions. The camera supports simultaneous multi-stream delivery at up to 6 channels, enabling flexible bandwidth allocation between primary and secondary streams. Network connectivity includes standard protocols (TCP/IP, HTTPS, RTSP, ONVIF ISAPI) and supports up to 32 concurrent users across three privilege levels.

Day/night operation is handled via motorized IR cut filter with automatic, scheduled, or manual switching modes. The camera's color mode operates at 0.01 Lux (F2.0, AGC enabled), while IR mode functions at 0 Lux—ensuring visibility in complete darkness. Adaptive shutter control ranges from 1/3 to 1/100,000 seconds for precise exposure management.

Integration with Hikvision's iVMS-4200 client and Hik-Connect cloud platform enables centralized management and remote monitoring. The camera also supports standard web browsers (Chrome 57.0+, Firefox 52.0+) for plug-in-free live view and configuration.

Physical Specifications

Measuring Ø127.3mm × 95.9mm with an approximate weight of 469g, the turret design offers a compact footprint suitable for varied mounting scenarios. Operating temperature range spans -30°C to +60°C with humidity tolerance to 95% non-condensing, supporting deployment in extreme climates.

Karl Wilson

The ECI-T24F2 represents a balanced entry-point for outdoor 4MP surveillance requiring reliable night vision and weatherproof durability. The combination of fixed focal length, intelligent IR supplementation, and H.265+ compression efficiency makes it cost-effective for mid-scale deployments. The 98° horizontal FOV suits corridor and entry monitoring, while the 30m IR range addresses most typical outdoor perimeter applications.

The mechanical adjustment capability (pan/tilt/rotate) adds flexibility despite the fixed lens constraint. Key considerations: the fixed focal length requires accurate pre-installation planning, and the 20 fps maximum frame rate at 4MP resolution is adequate for detection-focused applications but may be limiting for identification-level requirements at extended distances. Storage via microSD card with ANR ensures continuous recording resilience during network interruptions, making it suitable for mission-critical outdoor coverage without requiring additional NVR infrastructure.

Product Documentation

📄 Download Product Datasheet (PDF)
