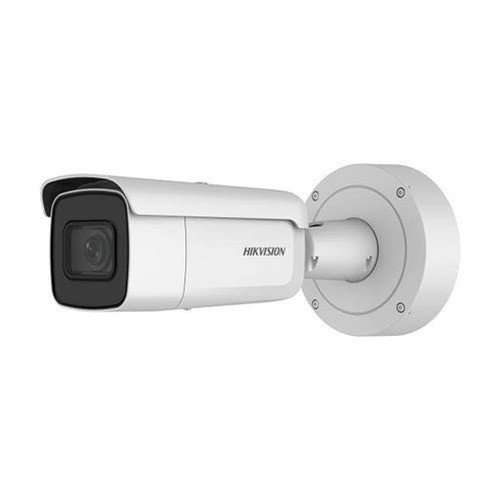

Hikvision DS-2CD2623G0-IZS 2MP Varifocal IR Outdoor Bullet IP Camera

The Hikvision DS-2CD2623G0-IZS 2MP IR VF Bullet IP Camera is a high-performance surveillance solution engineered to cater to the rigorous demands of m…

Add to cart for sale price
Ships same business day
In stock

Quantity:

Adding to cart… The item has been added
Compatibility guidance available for your deployment
Certified experts for pre and post-sales support
Authorized sourcing and documentation support
Shipping and lead-time confirmation before install

Bryan

Talk to Bryan

200+ hrs training • U.S - based

Certified Expert • 877-277-7147

Hikvision DS-2CD2623G0-IZS 2MP Varifocal IR Outdoor Bullet IP Camera

Your recommended setup

Review items below — quantities update pricing automatically.

Item Qty Status Price

Bundle Summary

Bundle Subtotal: $0.00
Optional Add-Ons: $0.00
Services: $0.00
Total: $0.00

Overview

SKU: DS-2CD2623G0-IZS
UPC: 842571120219
Condition: New
Availability: No Longer Available
Warranty 5-year warranty
Description

The Hikvision DS-2CD2623G0-IZS 2MP IR VF Bullet IP Camera is a high-performance surveillance solution engineered to cater to the rigorous demands of modern businesses and IT infrastructures. With its 2-megapixel resolution, this camera delivers crisp, clear images, enabling precise identification and monitoring of activities in various settings. The varifocal lens provides the flexibility to adjust the field of view, making it possible to tailor the camera to specific surveillance needs, whether it's a wide area or a focused point of interest. Designed for durability and reliability, the camera boasts an IP67-rated casing that ensures protection against harsh environmental conditions, making it an ideal choice for outdoor installations. The integrated infrared illumination enhances the camera's night vision capabilities, ensuring continuous, high-quality surveillance even in complete darkness, up to distances that cover the majority of installation scenarios.

Key to the DS-2CD2623G0-IZS's functionality is its advanced video compression technology, which includes support for both H.264 and H.265 codecs. This feature significantly optimizes bandwidth and storage efficiency, allowing for longer recording periods and lower operational costs. The camera's PTZ capabilities offer additional surveillance flexibility, with the ability to pan, tilt, and zoom remotely to focus on specific incidents or areas of interest. Furthermore, the camera supports onboard storage options as well as external storage solutions, providing versatility in data management and retention strategies. Power over Ethernet (PoE) compatibility simplifies the installation process, enabling power and data transmission over a single cable. The camera's compatibility with various network protocols ensures easy integration into existing security systems, while its advanced analytics features, such as motion detection and intrusion detection, enhance its surveillance effectiveness. Remote access capabilities allow for convenient monitoring from any location, via mobile apps and web interfaces, offering peace of mind and ensuring comprehensive security coverage.

Key Features:

  • Resolution and Image Quality: 2MP for detailed and clear visual surveillance.
  • Sensor Type and Size: High-quality CMOS sensor ensures excellent image capture, particularly in low-light conditions.
  • Lens: Varifocal lens for adjustable field of view, catering to specific surveillance requirements.
  • Field of View (FoV): Flexible to accommodate wide or targeted monitoring areas.
  • Minimum Illumination: Optimal performance in low-light environments.
  • Infrared (IR) Night Vision: Robust night vision capabilities for around-the-clock surveillance.
  • Video Compression: Supports H.264 and H.265 for efficient data usage and storage.
  • Frame Rate: Smooth video playback with standard frame rates for surveillance.
  • Audio Capabilities: Equipped with audio support for enhanced monitoring (specifics not detailed).
  • Storage Options: Versatile storage solutions with onboard and external capabilities.
  • Power Supply: PoE facilitates streamlined installation with a single cable for both power and data.
  • Connectivity and Network Features: Comprehensive connectivity for seamless system integration.
  • Environmental Resistance: IP67-rated for superior durability against environmental elements.
  • Software Features and Analytics: Advanced analytics for proactive security measures.
  • Integration Capabilities: Compatible with a wide range of security systems and third-party software.
  • Mobile and Remote Access: Remote viewing and management through mobile and web platforms.

Package Contents:

  • Hikvision DS-2CD2623G0-IZS Bullet Camera
  • Mounting Bracket
  • Installation Tools
  • Quick Start Guide
  • Software CD

The Hikvision DS-2CD2623G0-IZS stands out for its adaptability, robust imaging capabilities, and resilience, making it a top-tier choice for securing outdoor spaces effectively.

Specifications
Sensor Type: 1/2.8" Progressive Scan CMOS
Min. Illumination: Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Speed: 1/3 s to 1/100,000 s
Slow Shutter: Yes
Wide Dynamic Range: 120dB
Day & Night: IR Cut Filter
Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Focus: Auto
Lens Type: 2.8 to 12 mm,Motorized
Field of View: horizontal FOV: 110° to 31°,vertical FOV: 58° to 18°,diagonal FOV: 136° to 36°
Aperture: F1.6
Lens Mount: Φ14
Aperture Type: Fixed
IR Distance: Up to 50 m
Wavelength: 850nm
Max. Resolution: 1920 × 1080
Main Stream: 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub Stream: 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream: 50Hz: 25fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 288),60Hz: 30fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 240)
Video Compression: Main stream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264
Video Bit Rate: 32 Kbps to 16 Mbps
H.264 Type: Main Profile/High Profile
H.265 Type: Main Profile
H.264: Main stream supports
H.265: Main stream supports
Scalable Video Coding (SVC: H.264 and H.265 encoding
Environment Noise Filtering: Yes
Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate: 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
Simultaneous Live View: Up to 6 channels
API: ONVIF (PROFILE S, PROFILE G), ISAPI
Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
User/Host: Up to 32 users,3 levels: Administrator, Operator and User
Network Storage: Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Client: iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
Web Browser: Plug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11,Plug-in free live view: Chrome 45.0+, Firefox 52.0+
Alarm Trigger: Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Day/Night Switch: Day/Night/Auto/Schedule/Triggered by alarm in
Target Cropping: No
DNR: 3D DNR
Image Enhancement: BLC/3D DNR/HLC
Image Settings: Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
Face Detection: Yes
Audio Support: 1 input (line in/mic.in, 3.5 mm), 1 output (line out, 3.5 mm), mono sound
Alarm: 1 input, 1 output (max. 12 VDC, 30 mA), terminal block
On-Board Storage: Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Hardware Reset: Yes
Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port
Video Outputs: 1 Vp-p composite output(75Ω) (For adjustment only)
General Function: One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
Startup And Operating Conditions: -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
Power Type: 12 VDC ± 25%, terminal block,PoE (802.3at, class 4)
Power Consumption And Current: 12 VDC, 1.2A, max. 14.5W,PoE (802.3at, 42.5V to 57V), 0.43A to 0.3A, max. 18W
Camera Dimension: Φ 144.13 × 332.73 mm (Φ 5.7" × 13.1")
Camera Weight: Camera: Approx. 1740 g (3.8 lb.),With Package: Approx. 2610 g (5.8 lb.)
Protection: IK10, IP66
