8K NVR (Intel based), 2TB RAW, 16 channels with 16 PoE/PoE+ ports

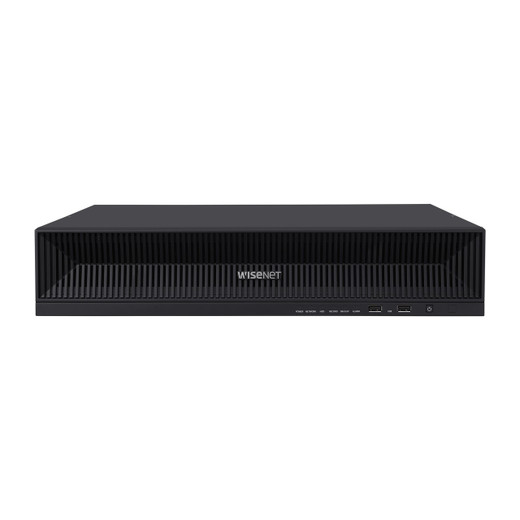

Hanwha XRN-1620SB1-2TB Overview

The Hanwha XRN-1620SB1-2TB is a 16-channel network video recorder designed for deployments requiring high-resolution 8K (32+ megapixel) video capture and centralized management across medium-scale surveillance systems. This Intel-based NVR integrates 16 PoE+ ports (802.3at) directly into the appliance, eliminating the need for external PoE injectors or switches and simplifying installation in office, retail, education, and enterprise environments. With a maximum recording bandwidth of 140 Mbps, dual-stream support, H.265 compression, and Wisenet AI metadata indexing, the XRN-1620SB1-2TB balances raw resolution capability with practical bandwidth efficiency.

Hanwha XRN-1620SB1-2TB Key Features

• 8K (32+ Megapixel) Resolution Support: Accommodates up to 32 megapixel network cameras, enabling forensic-level detail and extended field-of-view deployments with a single camera per location.
• 16 Integrated PoE+ Ports (802.3at): Built-in PoE+ power delivery on all 16 camera channels reduces infrastructure cost and complexity; each port delivers sufficient power for standard PoE+ cameras without external power supplies.
• 140 Mbps Recording Bandwidth: Supports simultaneous recording from all 16 channels at high bitrate; dual-stream mode allows independent quality settings for local monitoring and remote access.
• H.265, H.264, and MJPEG Compression: Multiple codec options provide flexibility for bandwidth-constrained environments; H.265 encoding delivers superior compression for 8K streams.
• Embedded Linux Operating System: Dedicated, hardened operating system ensures stability and security in always-on surveillance deployments.
• ONVIF Protocol Compliance: Standards-based API support (SUNAPI, ONVIF) ensures interoperability with third-party ONVIF-compliant cameras and VMS platforms.
• Wisenet AI Metadata Search: Supports dynamic event triggers, Wisenet AI metadata indexing, and SmartSearch for rapid content discovery and forensic playback.
• Dual Local Monitor Output: FHD output on HDMI and VGA simultaneously for redundant monitoring; UHD single-monitor mode available via HDMI for dedicated observation stations.
• WiseStream Video Enhancement: Optimizes storage efficiency through adaptive bitrate control while maintaining image quality.
• ARB and N+1 Failover: Automatic fallback recording and redundancy options protect against single-point failures in mission-critical applications.
• Up to 4 Internal HDDs (Expandable to 24TB): Pre-configured with 2TB RAW storage; supports up to 4 internal 3.5-inch drives for extended retention or upgrade paths.
• Flexible Recording Modes: Normal, dual-stream, scheduled continuous/event, event-triggered (pre/post buffer), and bookmark-based recording provide granular control over storage utilization.

Hanwha XRN-1620SB1-2TB Integration & Compatibility

The XRN-1620SB1-2TB communicates via SUNAPI and ONVIF protocols, ensuring compatibility with standard NVR management platforms and third-party ONVIF Profile S cameras. Supports up to 4 simultaneous local users and 3 remote users; 16 local channels and 16 remote channels per user enable distributed monitoring and role-based access control. Dynamic layout, clone mode (up to 16 divisions), and expand mode (up to 9 divisions) support flexible multi-screen configurations on both local monitors and web clients. Local display supports 32MP video at 15 fps (H.265 only), 12MP at 30 fps (H.265), 8.3MP at 50 fps, 1080p at 240 fps, and D1 at up to 480 fps in clone mode; UHD single-monitor mode supports equivalent resolutions with slightly lower frame rates on high-density channels. Playback bandwidth reaches 32 Mbps maximum; simultaneous playback accommodates up to 64 channels (16 local, 16 per remote user) for comprehensive forensic review. Event triggers include alarm input, video loss, camera events (sensor, motion detection, video analytics, defocus, audio), dynamic event, and user-generated events. Event actions include e-mail notification, event push alerts, PTZ preset execution, alarm relay output, audible buzzer, monitor display routing, FTP export, and SUNAPI command execution.
