6MP IR Outdoor Vandal Dome AI Camera

Hanwha XNV-C8083R Overview

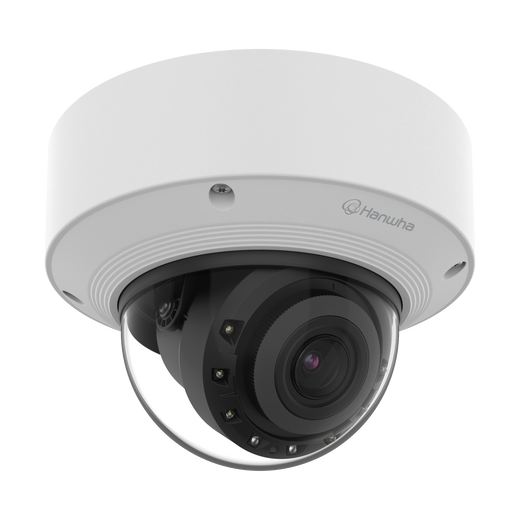

The Hanwha XNV-C8083R is a 6MP AI-enabled IR outdoor vandal dome camera purpose-built for demanding surveillance deployments requiring robust physical protection and extended night-vision capability. This camera combines a hard-coated polycarbonate dome with aluminum housing to deliver IK10 vandalism resistance alongside IP66/IP67 weatherproofing, making it suitable for high-traffic outdoor areas, transit facilities, and installations where environmental durability is non-negotiable. The XNV-C8083R differentiates itself through WiseIR technology delivering 40m (131.23 ft) viewable IR range, extreme 120dB WDR to handle backlit scenes, and integrated AI-based noise reduction and bandwidth optimization.

Hanwha XNV-C8083R Key Features

• 6MP Resolution with Motorized Varifocal Lens: Delivers crisp image detail across varied deployment distances with a 4.4–9.3mm (2.1x) motorized varifocal zoom, allowing field adjustment without physical intervention.
• Extended Infrared Range: WiseIR technology provides 40m (131.23 ft) of viewable IR illumination with 0 Lux capability when IR LED is active, enabling 24/7 surveillance in complete darkness.
• Extreme Wide Dynamic Range: 120dB extreme WDR with Day & Night (ICR) mode handles challenging backlit and mixed-lighting conditions typical of outdoor perimeters and entryways.
• Low-Light Color Performance: Achieves 0.04 Lux color sensitivity at F1.3, 1/30 sec, 30 IRE, preserving facial and object detail during twilight and dawn operations.
• Vandal-Resistant Construction: Hard-coated dome bubble paired with aluminum housing and IK10 rating withstands impact and tampering in high-risk environments.
• Weatherproof Certification: IP66 and IP67 ratings ensure operation across extreme temperature ranges (-50°C to +60°C / -58°F to +140°F) with 0–90% non-condensing humidity tolerance.
• AI-Powered Analytics: WiseNR II and WiseStream III leverage integrated AI engine for intelligent noise reduction and adaptive bitrate streaming, reducing storage demands and network bandwidth.
• 30 fps H.265/H.264 Encoding: Maximum 30 fps capture with dual-codec support and WiseStream III bandwidth optimization for efficient network and storage utilization.
• Efficient PoE Power: Single IEEE 802.3af PoE (Class 3) supply with typical consumption of 11.2W maximizes deployment flexibility and eliminates dedicated 12VDC runs.
• DORI Compliance: Meets EN62676-4 forensic standards with measured detection ranges (Detect: 44.1m wide / 153.1m tele), observation (17.6m wide / 61.2m tele), recognition (8.8m wide / 30.6m tele), and identification (4.4m wide / 15.3m tele) distances.

Hanwha XNV-C8083R Integration & Compatibility

The XNV-C8083R supports ONVIF interoperability for integration with standards-based video management systems. Camera dimensions of ø160 x 118mm (6.30 x 4.65") allow installation on single, double, 4-inch octagon, and square gang boxes via compatible M20 conduit hole (12.7mm / 1/2") mounting. The unit is compatible with Hanwha Vision CloudConnector for hybrid and cloud-enabled architectures. EMC certifications include FCC 47 CFR 15 Subpart B Class A, CE/UKCA EN55032 Class A, and KSC certifications (KSC9832, KSC9835). Safety compliance verified to UL 62368-1 and IEC 62471; environmental standards include IEC/EN 63000 and NEMA 250 Type 4X rating.
