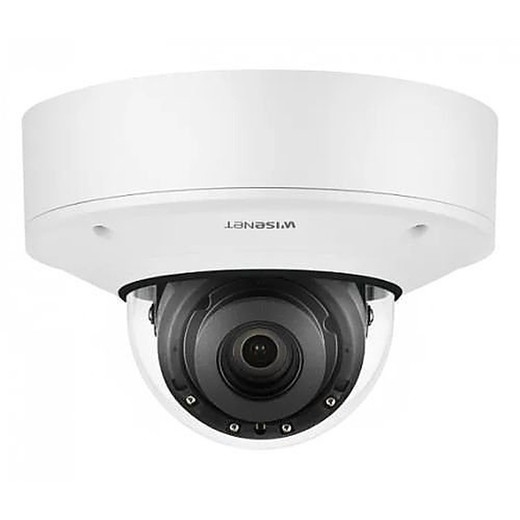

6MP IR Outdoor Vandal Dome

Hanwha XNV-8082R/KAP Overview

The Hanwha XNV-8082R/KAP is a 6MP IR outdoor vandal-resistant network dome camera engineered for high-security deployments where durability and low-light performance are critical. This camera combines advanced imaging technology with robust mechanical protection, making it suitable for perimeter surveillance, facility monitoring, and installations requiring proven vandal resistance and extended infrared viewing capability.

Hanwha XNV-8082R/KAP Key Features

• 6 Megapixel Resolution — Captures sharp, detailed imagery at 6MP with H.265 and H.264 codec support, delivering up to 30 fps at native resolution for fluid motion and forensic clarity.
• 2.8–8.4mm Motorized Varifocal Lens (3x Zoom) — Adjustable optics enable field-of-view customization from wide-angle to telephoto coverage without requiring manual re-installation, ideal for variable deployment scenarios.
• IR LED Illumination with 40m Viewing Range — Delivers 0 Lux performance in B/W IR mode with integrated LED illumination, extending surveillance capability into total darkness with 40m visible IR range for comprehensive nighttime coverage.
• Extreme Wide Dynamic Range (120dB) — Handles high-contrast scenes with extreme backlight or reflective surfaces, preserving detail across bright and dark zones in a single frame without post-processing.
• Day/Night Mechanical Shutter (ICR) — Automatic switchover between color and infrared imaging based on ambient light levels, with manual override options for flexible deployment requirements.
• Low-Light Color Imaging — Achieves 0.05 Lux performance in color mode at F1.2, enabling color identification and analytics even in minimal ambient lighting conditions.
• Integrated Video Analytics — Built-in defocus detection, directional detection, audio detection, shock detection, and face/upper body detection capabilities reduce reliance on external analytics servers and enable real-time alert generation.
• Dual microSD Card Slots — Supports up to 1TB aggregate storage (maximum 512GB per slot) for local recording backup, edge storage, or forensic retention without NVR dependency.
• IP66/IP67 Weather Protection with IK10+ Vandal Rating — Sealed enclosure withstands dust ingress and high-pressure water jets, while IK10+ rating provides protection against impacts up to 20 joules, exceeding standard IK10 vandalism resistance.
• Modular Design with PoE Support — Flexible power options: PoE (IEEE 802.3af Class 3, max 12.95W), 24VAC, or 12VDC, with power redundancy failover for mission-critical installations.
• DORI Performance Metrics — Supports Detect (43.2m wide/182.9m tele), Observe (17.3m wide/73.1m tele), Recognize (8.6m wide/36.6m tele), and Identify (4.3m wide/18.3m tele) distances per EN62676-4 standard.
• Motion-Aware Gyrosensor — Integrated directional detection via built-in gyrosensor enables shock detection and vibration-triggered alerts for perimeter breach scenarios.

Hanwha XNV-8082R/KAP Integration & Compatibility

The XNV-8082R supports ONVIF compliance for interoperability with standards-based video management systems and third-party platforms. The camera is compatible with single, double, 4" octagon, and square gang box mounting configurations, enabling flexible ceiling or wall installation. Multiple power input options (PoE, 24VAC, 12VDC) with redundancy failover support ensure deployment flexibility in both managed and unmanaged network environments. Firmware updates are released periodically to maintain compatibility with evolving VMS platforms and security standards.
