5MP IR Outdoor Dome

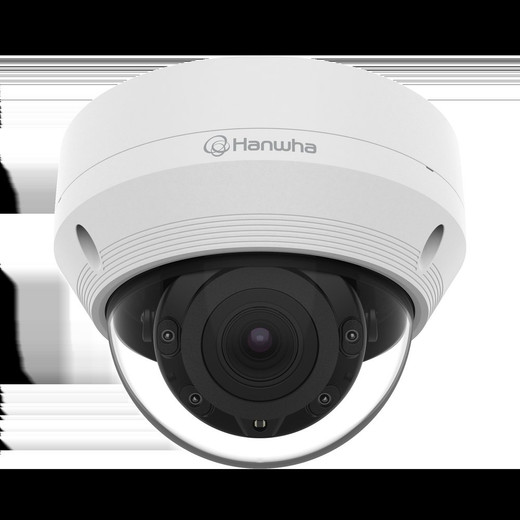

Hanwha QNV-8080R/KME Overview

The Hanwha QNV-8080R/KME is a 5 megapixel network IR dome camera designed for outdoor surveillance in demanding environments. This vandal-resistant dome delivers infrared night vision capability with motorized varifocal lens control, IP66 weatherproofing, and IK10 impact resistance, making it suitable for perimeter security, retail, transportation, and critical infrastructure deployments where durability and round-the-clock visibility are required.

Hanwha QNV-8080R/KME Key Features

• 5 Megapixel Resolution: Captures 2592×1944 pixel imagery for detailed evidence documentation and forensic analysis across wide deployment areas.
• 3.2–10mm Motorized Varifocal Lens: 3.1× optical zoom range with motorized focus and iris control enables flexible field-of-view adjustment without lens replacement, ideal for multi-purpose coverage scenarios.
• Infrared Night Vision: 0 lux operation in B/W with IR LED enabled; 0.15 lux minimum in color mode. Delivers continuous 24/7 surveillance capability regardless of ambient lighting conditions.
• Multi-Codec Support: H.265, H.264, and MJPEG compression options support bandwidth optimization and compatibility across legacy and modern VMS platforms.
• IP66 Weatherproofing: Full dust and water ingress protection rated to heavy rain, washdown, and outdoor humidity extremes (-30°C to +55°C operating range).
• IK10 Vandal Resistance: Impact-rated enclosure withstands deliberate strikes and environmental stress common in high-abuse zones.
• PoE Power Delivery: IEEE 802.3af Class 3 PoE operation with typical 6.60W and maximum 8.90W consumption eliminates dedicated power cabling and enables single-cable deployment.
• 512MB RAM / 256MB Flash Memory: Sufficient onboard processing for real-time video encoding and local firmware storage.
• MicroSD/SDHC/SDxC Edge Storage: Up to 128GB local recording capacity per slot for autonomous operation during network interruption or as forensic failsafe.
• AES-256 SD Card Encryption: Protects recorded data and credentials at rest; supports encrypted firmware and secure firmware boot.
• IEEE 802.1X Network Authentication: EAP-TLS, EAP-LEAP, EAP-PEAP, and MSCHAPv2 support; HTTPS, WSS, and SRTP secure communication protocols ensure enterprise-grade cybersecurity posture.
• Compact Dome Footprint: ø137.0×106.1mm (ø5.39×4.18") form factor and 700g (1.54 lb) weight simplify ceiling and wall mounting in space-constrained installations.

Hanwha QNV-8080R/KME Integration & Compatibility

The QNV-8080R/KME supports ONVIF-compliant network camera APIs and operates with standard IP surveillance management platforms via HTTP/HTTPS and WebSocket Secure protocols. Firmware updates and bridge firmware options are available through Hanwha Vision support channels. IP-based access control, user authentication with digest and brute-force attack mitigation, and device certificate validation via Hanwha Vision Root CA enable secure integration into larger corporate surveillance architectures. CAD models, BIM/Revit files, and A&E documentation are available to support design and procurement workflows.
