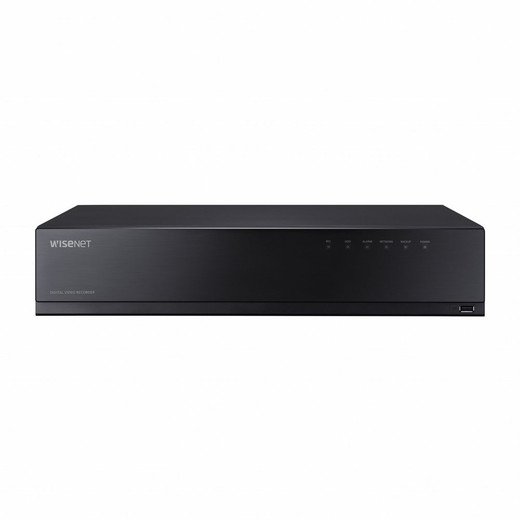

Hanwha HRX-1635-48TB 5-in-1 16CH Pentabrid DVR- 48TB Raw Storage

Hanwha HRX-1635-48TB Overview

The Hanwha HRX-1635-48TB is a 16-channel pentabrid DVR engineered for hybrid analog and IP surveillance deployments. This system accommodates up to 8MP analog camera inputs (AHD, HDTVI, HDCVI, CVBS) on 16 dedicated channels, with scalable network camera support up to 18 total channels depending on analog channel load. Designed for integrators requiring flexible multi-signal format support and substantial storage capacity, the HRX-1635-48TB delivers 48TB raw storage across eight SATA HDDs and is NDAA and FCC compliant for federal and commercial deployments.

Hanwha HRX-1635-48TB Key Features

• Pentabrid Signal Support: Accepts AHD, HDTVI, HDCVI, CVBS (NTSC/PAL), and ONVIF IP inputs on a single platform, eliminating the need for separate DVR/NVR hardware in mixed-signal environments.
• 8MP Analog Recording: Analog inputs support up to 8MP resolution at 15 fps per channel, 5MP at 20 fps, 4MP at 30 fps, 2MP at 30 fps, 1MP at 30 fps, and 960H/720H at 30 fps, with frame rates adjustable per PAL/NTSC standard.
• Scalable Channel Architecture: Configurable 16 analog + 2–18 IP network camera channels, allowing integrators to optimize channel allocation based on deployment requirements and total channel count up to 18.
• High-Efficiency Compression: H.265, H.264, and MJPEG codec support with 128 Mbps maximum recording bandwidth and 32 Mbps playback bandwidth, reducing storage overhead and enabling reliable multi-stream playback on limited network capacity.
• Massive Native Storage: Up to eight SATA HDD slots (6TB per drive) deliver 48TB of raw storage capacity without external NAS dependency, ideal for extended retention in continuous recording deployments.
• Dual Monitor Display: HDMI and VGA video outputs with independent resolution control (HDMI supports up to 3840×2160; VGA up to 1920×1080) plus one dedicated spot monitor output for priority live viewing.
• Audio and Control I/O: Four-channel audio input and one-channel audio output support integrated voice communication. Sixteen alarm inputs and four relay outputs enable event-driven automation; coaxial control supports legacy PTZ systems.
• Network Integration: SUNAPI (Wisenet) and ONVIF protocol support simplifies integration with third-party VMS platforms and IP cameras from multi-vendor environments. P2P QR code connection enables quick Wisenet Viewer and Wisenet Mobile app pairing.
• Simultaneous Multi-User Playback: Supports up to four concurrent local/remote users with simultaneous playback on up to 18 channels (local monitor), 18 channels (CMS), 4 channels (Wisenet Mobile), and 1 channel (web interface).
• Regulatory Compliance: NDAA and FCC certifications confirm suitability for federal, government, and commercial integrations with compliance documentation.
• Event-Driven Recording Modes: Normal, Dual Stream, scheduled (continuous/event), and event-triggered (pre/post) recording with configurable triggers including alarm inputs, video loss, motion detection, tampering, camera events, and dynamic/user events; supports email, FTP, event push, alarm relay outputs, and PTZ preset automation.
• Fisheye Dewarping: CMS-based dewarping capability for network camera fisheye feeds (dewarping limited to CMS platform, not local monitor).

Hanwha HRX-1635-48TB Integration and Compatibility

The HRX-1635-48TB integrates via SUNAPI (Wisenet proprietary) and ONVIF protocol support, enabling seamless compatibility with third-party IP cameras and VMS software. ONVIF support includes standard device and event discovery, allowing rapid provisioning in mixed-vendor surveillance environments. Local connections include coaxial control for legacy analog PTZ systems, 16 alarm inputs, and four relay outputs for integration with external access control, automation, and emergency systems. P2P QR code provisioning accelerates mobile app deployment through Wisenet Viewer and Wisenet Mobile. The unit supports up to four simultaneous local and remote users across multiple platforms (local monitor, CMS, mobile, and web), satisfying multi-team or multi-facility coordination requirements in larger deployments.
