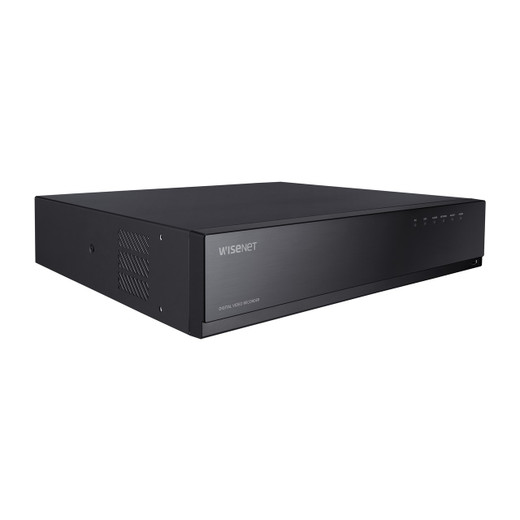

Hanwha HRX-1635-16TB 16CH Pentabrid DVR

Hanwha HRX-1635-16TB Overview

The Hanwha HRX-1635-16TB is a 16-channel pentabrid DVR designed for hybrid analog and IP surveillance deployments. This 5-in-1 recorder supports AHD, HDTVI, HDCVI, CVBS (analog), and network camera inputs, accommodating up to 18 total channels (maximum 16 analog + maximum 2-18 network channels depending on configuration). The HRX-1635-16TB ships with 16TB of raw storage pre-installed and is NDAA and FCC compliant, making it suitable for sensitive security integrations.

Hanwha HRX-1635-16TB Key Features

• Pentabrid Input Support: Handles AHD, HDTVI, HDCVI, CVBS, and IP camera inputs on a single recorder, eliminating the need for separate systems when mixing analog and network cameras.
• 8MP Analog Camera Capture: Records analog cameras up to 8MP at 15 fps, 5MP at 20 fps, 4MP at 30 fps, 2MP at 30 fps, 1MP at 30 fps, and 960H/720H at 30 fps per channel with flexible recording rates.
• Network Camera Support: Additional 2 channels (expandable up to 18 channels total) for IP cameras at up to 8MP resolution with typical 2MP playback at up to 480 fps per channel.
• High-Bandwidth Recording: Maximum 128 Mbps recording bandwidth and 32 Mbps playback bandwidth supports multi-channel simultaneous recording and playback of high-resolution feeds.
• Advanced Codec Compression: H.265, H.264, and MJPEG codec support reduces storage requirements while maintaining image quality across all input types.
• Dual Monitor Display: HDMI and VGA outputs with support for resolutions up to 3840×2160 (4K) on HDMI and 1920×1080 on VGA, enabling simultaneous multi-monitor operations.
• 16TB Pre-Installed Storage: 16TB raw capacity with support for up to 8 SATA HDDs (6TB per drive, up to 48TB maximum expansion) provides scalable long-term retention.
• Audio and Alarm Integration: 4-channel audio input, 1-channel audio output, 16 alarm inputs, and 4 relay outputs enable integration with external sensors, intercoms, and alarm systems; coaxial control support simplifies installation.
• Flexible Recording Modes: Normal, Dual Stream, Schedule (Continuous/Event), Event (Pre/Post), and Bookmark modes allow customized recording strategies based on security requirements.
• Event-Triggered Actions: Alarm input, video loss, motion detection, and tampering detection trigger email, event push, PTZ presets, alarm outputs, buzzer, monitor output, FTP, and SUNAPI commands.
• Easy P2P Connectivity: QR code connection enables rapid Wisenet Viewer and Wisenet Mobile app access without complex network configuration.
• Multi-User Playback: Simultaneous playback across 18 channels (local monitor), 18 channels (CMS), 4 channels (Wisenet Mobile), and 1 channel (Web) supports multiple concurrent users.

Hanwha HRX-1635-16TB Integration & Compatibility

The HRX-1635-16TB integrates with SUNAPI (Wisenet) and ONVIF-compatible IP cameras, supporting both proprietary and open-standard ecosystem deployments. Network cameras follow SUNAPI (Wisenet) and ONVIF protocols for broad compatibility. The recorder supports up to 4 local users, 3 remote users, and enables simultaneous playback across multiple platforms including local monitor, CMS systems, Wisenet Mobile (4 channels), and web browsers (1 channel). Dual video outputs (HDMI and VGA) support independent display configurations for control room and spot monitoring applications. Coaxial control capability simplifies wiring in installations combining analog cameras with modern control interfaces. The NDAA and FCC compliance certifications confirm suitability for government and regulated environments.
