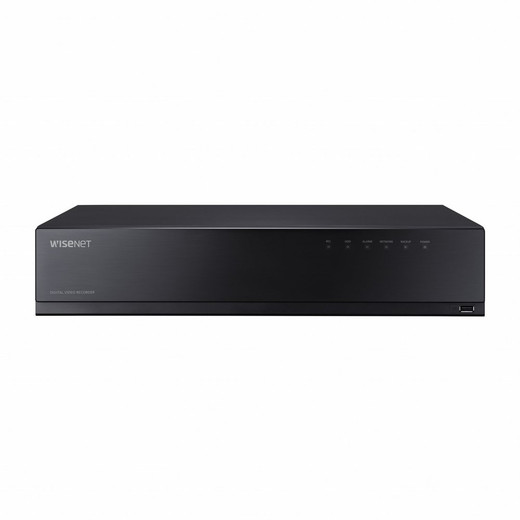

Hanwha HRX-1635-12TB 5-in-1 16CH Pentabrid DVR- 12TB Raw Storage

Hanwha HRX-1635-12TB Overview

The Hanwha HRX-1635-12TB is a 5-in-1 pentabrid digital video recorder engineered for mixed analog and IP camera deployments. This 16-channel DVR supports AHD, HDTVI, HDCVI, CVBS, and network-based IP cameras in a single unified platform, delivering flexible surveillance architecture without the need for separate hardware. The model comes factory-equipped with 12TB of raw storage capacity and includes support for up to 8 SATA hard drive slots (maximum 48TB), making it suitable for mid-to-large deployments requiring extended retention periods.

Hanwha HRX-1635-12TB Key Features

• Pentabrid Input Flexibility: Accepts 16 channels of AHD, HDTVI, HDCVI, and CVBS (analog) video signals simultaneously, plus up to 18 network IP cameras (2-18 channels depending on analog channel count), allowing gradual migration from legacy analog to IP infrastructure.
• 8MP Resolution Support: Analog cameras deliver up to 8MP at 15 fps per channel, with 5MP at 20 fps, 4MP at 30 fps, 2MP at 30 fps, 1MP at 30 fps, and 960H/720H support. Network cameras support resolutions from 8MP down to CIF, accommodating diverse sensor specifications across mixed deployments.
• Efficient Video Compression: Triple codec support (H.265, H.264, MJPEG) with dual-stream recording capability enables bandwidth optimization and flexible playback scenarios. Maximum recording bandwidth of 128 Mbps supports full-resolution simultaneous recording across all active channels.
• Comprehensive Audio Integration: Four channels of audio input plus one audio output enable integrated voice communications, audio event triggering, and evidence capture in security-critical environments.
• Extensive Alarm & Control Capability: 16 alarm inputs and 4 relay outputs support external sensor integration (door contacts, motion detectors, glass break sensors) with automated response actions. Coaxial control enables legacy camera control systems integration.
• Dual-Monitor Display Architecture: Native HDMI and VGA outputs support simultaneous dual-monitor display configurations with HDMI supporting up to 4K (3840×2160) resolution and VGA supporting up to 1920×1080. Includes dedicated spot monitor output for secondary display, critical in control room or multi-station installations.
• High-Capacity Storage Expansion: Ships with 12TB pre-installed; accepts up to 8 SATA hard drive slots with maximum 6TB drives per slot (total 48TB), providing extended recording retention for continuous or event-based recording modes.
• Scalable IP Integration: Supports SUNAPI (Wisenet) and ONVIF protocols for seamless third-party IP camera integration. Up to 18 simultaneous network camera channels enable hybrid deployments without replacing existing analog infrastructure.
• Mobile & Remote Access: P2P service with QR code connection streamlines setup for Wisenet Viewer and Wisenet Mobile app integration, enabling remote monitoring and event review from authorized devices.
• Regulatory Compliance: NDAA and FCC certified, meeting federal procurement requirements for U.S. government, state, and municipal security installations.
• Multi-User Remote Access: Supports up to 4 simultaneous users (1 local, 3 remote) with 18-channel simultaneous local playback, 18-channel CMS playback, 4-channel Wisenet Mobile playback, and 1-channel web playback bandwidth management.
• Advanced Event Management: Alarm input, video loss detection, motion detection, and tampering triggers for analog cameras; camera events (sensor, motion detection, video analytics, defocus, audio) for network cameras, with automated actions including e-mail notification, event push, PTZ preset execution, alarm relay activation, buzzer control, and FTP upload.

Hanwha HRX-1635-12TB Integration & Compatibility

The HRX-1635-12TB integrates analog and network camera streams through SUNAPI (Wisenet) and ONVIF protocol support, enabling flexible VMS integration across third-party platforms. Dual HDMI and VGA outputs with multiple resolution options support professional control room deployments. The device supports 18-channel simultaneous playback locally and via CMS, with bandwidth-managed remote access for Wisenet Mobile (4 channels) and web (1 channel). Four independent audio inputs and one audio output enable integrated two-way communication. Coaxial control compatibility maintains integration with legacy PTZ and dome systems. Up to 4 simultaneous remote users can access recordings and live video with granular permission control. The QR code-based P2P service simplifies remote app setup without complex network configuration.
