4MP IR Bullet AI camera

Hanwha XNO-C7083R/KEX Overview

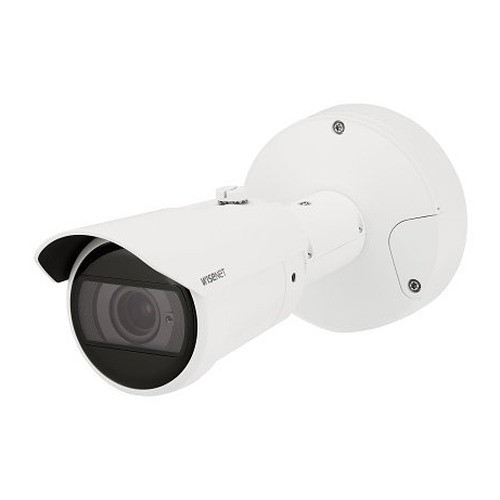

The Hanwha XNO-C7083R/KEX is a 4MP IR bullet camera engineered for outdoor surveillance deployments requiring extended IR coverage and intelligent video analytics. This fixed-installation camera combines a motorized varifocal lens, extreme wide dynamic range, and AI-powered noise reduction to deliver reliable day and night performance across demanding lighting conditions. The XNO-C7083R/KEX is rated IP66/IP67 for indoor/outdoor installations and supports standard PoE power, making it suitable for integrators deploying mid-range resolution systems where night vision range and automated object detection are critical.

Hanwha XNO-C7083R/KEX Key Features

• 4MP resolution at up to 60 fps — captures 2688×1520 imagery at maximum frame rate using H.265 or H.264 compression, enabling high-quality forensic review and smooth video streaming.
• 2.8–10mm motorized varifocal lens with 3.6x optical zoom — allows field-adjustable focus and zoom range to optimize framing without requiring lens changes or camera repositioning.
• IR illumination with 40m effective viewing distance — delivers visible infrared coverage at 40 meters (131.23 feet) for night-time object detection and identification in complete darkness.
• Day/Night ICR (Infrared Cut-off filter) operation — automatically switches between color mode during daylight and monochrome mode with IR LED activation after dark, eliminating the need for manual mode selection.
• Extreme WDR (120 dB) — handles high-contrast scenes with mixed bright and dark areas, preserving facial detail in backlit conditions and enhancing license plate legibility in direct sunlight.
• AI-based WiseNR II and WiseStream III compression — applies intelligent noise reduction and adaptive bitrate encoding to maintain image quality while reducing storage and bandwidth consumption.
• PoE power (IEEE 802.3af, Class 3) — typical consumption 10.8W, maximum 12.95W; compatible with standard PoE switches and midspans for simplified deployment without dedicated power runs.
• Low-light color performance at 0.038 Lux — captures usable color video in near-darkness (F1.4, 1/30 sec, 30 IRE) before IR activation, improving early detection in twilight conditions.
• DORI performance metrics (EN62676-4 standard) — Detect 36.3m wide/193.5m tele; Observe 14.5m wide/77.4m tele; Recognize 7.3m wide/38.7m tele; Identify 3.6m wide/19.3m tele, providing clear guidance on deployment distance for specific identification tasks.
• Rugged outdoor construction — aluminum and polycarbonate body with hard-coated window; rated IK10 impact resistance and IP66/IP67 weatherproofing; storage temperature range -50°C to +60°C (-58°F to +140°F).
• Audio support with two-way capability — built-in microphone and speaker connectivity for remote communication and site monitoring.
• Comprehensive EMC and safety certifications — FCC, CE/UKCA, UL62368-1, IEC62471, NEMA 250 Type 4X compliance ensures safe integration into international and North American networks.

Hanwha XNO-C7083R/KEX Integration & Compatibility

The XNO-C7083R/KEX supports ONVIF-compliant video management systems and integrates with Hanwha's Wisenet X ecosystem for centralized analytics and firmware management. The camera outputs standard H.265 and H.264 bitstreams, ensuring compatibility with ONVIF Profile S/T/G-capable NVRs from Milestone, Genetec, and other mainstream platforms. Compatible mounting options include single-gang, double-gang, 4-inch octagon, and square gang boxes via optional adapters; a conduit hole is available with adapter support. Firmware updates and online help documentation are provided by Hanwha Vision for ongoing product support.
