Hanwha XRN-426S-1T 4-Channel NVR

Hanwha XRN-426S-1T Overview

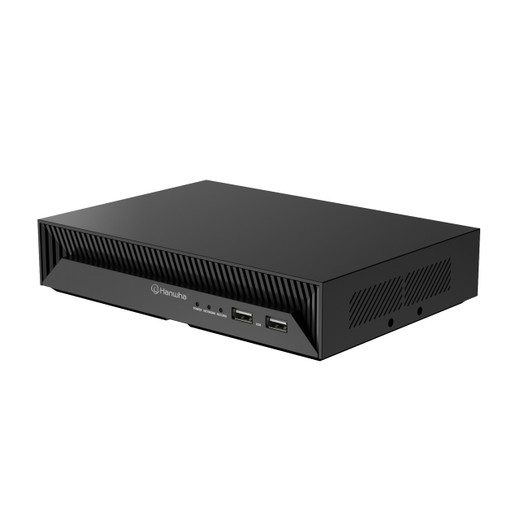

The Hanwha XRN-426S-1T is a compact 4-channel Intel-based 4K network video recorder designed for small-to-medium security deployments requiring local SSD-based storage and integrated PoE power distribution. This ultra-compact NVR combines enterprise-grade recording capabilities with simplified installation, making it ideal for security integrators and IT managers deploying standardized surveillance infrastructure across multiple locations.

Hanwha XRN-426S-1T Key Features

• 4-Channel PoE+ Powered Recording: Integrated 4 PoE/PoE+ ports (50W total PoE budget) eliminate the need for external power injectors on smaller deployments, supporting simultaneous camera connection and power delivery up to 802.3at specifications.
• 8MP Maximum Camera Support: Accommodates up to 4 IP cameras at 8MP resolution, with recording bandwidth up to 40 Mbps and playback bandwidth up to 32 Mbps, enabling full-resolution capture and retrieval of high-detail footage.
• Multi-Codec Recording: Supports H.265, H.264, and MJPEG compression algorithms, with WiseStream technology optimization for bandwidth and storage efficiency across variable bitrate streams.
• 1TB Pre-Installed SSD Storage: M.2 SSD form factor provides instant-access local recording with superior reliability and faster boot times compared to traditional rotating media; expandable M.2 SSD slot available for additional capacity.
• Dual Stream Recording: Simultaneous main and sub-stream recording enables optimized local playback at full resolution while supporting remote viewing at reduced bandwidth without re-encoding.
• 4K HDMI Display Output: Single HDMI 1 port outputs at 3840x2160 (30Hz) for direct 4K monitor connection; multi-screen display modes support dynamic layout, virtual channel views, and up to 4-window division on web clients.
• Automatic Recovery Backup (ARB) & N+1 Failover: Built-in redundancy features protect against data loss during unexpected shutdown or system failure, with ARB function recovering incomplete recordings and failover logic supporting hot-standby configurations.

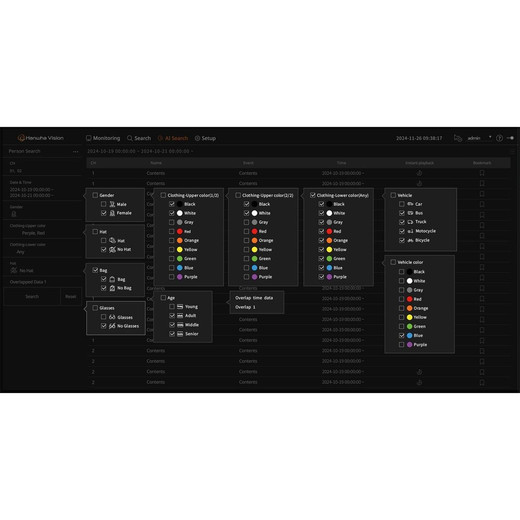

• AI Search & WiseNet Integration: Native integration with Hanwha Wisenet AI cameras unlocks intelligent video analytics including smart search capabilities; managed via Wisenet Viewer for centralized multi-NVR oversight.
• Two-Way Audio & Alarm I/O: Integrated audio input/output and alarm contact ports enable voice communication with on-site personnel and external sensor/relay integration for events triggered by motion detection, video loss, camera defocus, or audio anomalies.
• ONVIF & SUNAPI Protocol Support: Standards-based camera control and stream management ensure compatibility with third-party IP cameras and VMS platforms; P2P QR code provisioning simplifies remote access and mobile viewing via Wisenet Mobile app.
• WiFi Dongle Installation Support: Optional WiFi adapter enables wireless configuration and live view setup from tablet during initial deployment, reducing ethernet cabling requirements for unit commissioning.
• Lightweight VESA Mount Design: Compact footprint (half the size of typical NVRs) with VESA compliance supports wall, desk, or pole mounting, accommodating space-constrained installations such as retail, small offices, or branch locations.

Hanwha XRN-426S-1T Integration & Compatibility

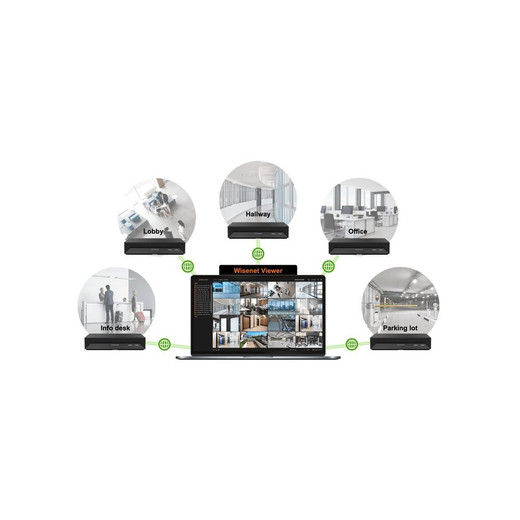

The XRN-426S-1T operates on embedded Linux with ONVIF-compliant camera discovery and control, supporting standard SUNAPI commands for Hanwha Vision camera integration. Wisenet Viewer software provides centralized device management, allowing operators to connect and monitor multiple NVRs across distributed facilities from a single interface. Local playback supports 4 simultaneous channels at 8MP resolution (30 fps), while remote playback accommodates up to 4 users with 4 channels per user via web or mobile client. Maximum 16 concurrent playback channels are supported (4 local + 4 remote per user configuration), with time-based, event-based, text search, bookmark, and SmartSearch playback modes. File backup exports in Recorder, SEC, AVI, and JPG formats (local) or AVI and PNG (network), supporting multi-channel simultaneous export up to 4 channels with date-time and custom title stamping.

Hanwha XRN-426S-1T Package Contents

• XRN-426S-1T NVR unit with pre-installed 1TB SSD
• Wireless mouse (included)
• WiFi dongle for installation support
