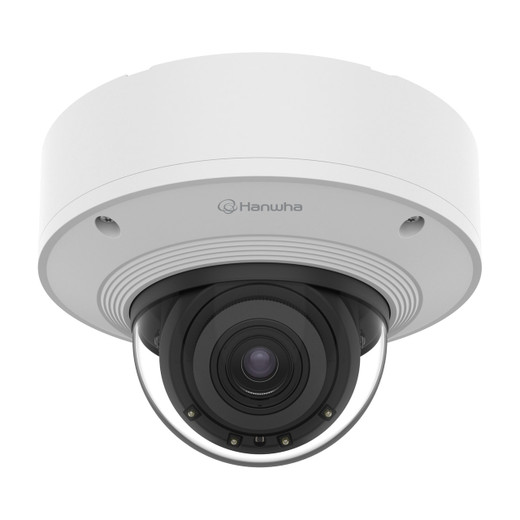

4K IR Outdoor Vandal Dome AI Camera

Hanwha PNV-A9081R/KAP Overview

The Hanwha PNV-A9081R/KAP is a 4K (8 MP) AI-enabled IR vandal dome camera engineered for outdoor surveillance in demanding environments. This model combines native 4K resolution with integrated infrared illumination, advanced video analytics, and vandal-resistant construction—delivering forensic detail and intelligent detection in zero-light conditions without external IR supplementation.

Hanwha PNV-A9081R/KAP Key Features

• 4K UHD Resolution: Captures full 8 MP video at 4K resolution for maximum detail across wide monitoring zones; supports H.265, H.264, and MJPEG codecs with WiseStream II and WiseStream III compression for bandwidth-efficient storage.
• Extreme Low-Light Performance: Achieves 0.05 lux color @ F1.6 for twilight detection; switches to 0 lux monochrome with integrated IR LED activation for complete darkness coverage without auxiliary lighting.
• High-Dynamic Range (WDR): 120 dB WDR combined with ICR (Day/Night) mode and WiseNR II AI-enhanced noise reduction; Prefer Shutter mode optimizes exposure for rapid motion without motion blur.
• AI-Powered Video Analytics: Deep learning engine delivers real-time object detection and classification (person, face, vehicle, license plate); includes face mask detection, social distancing detection, attribute analysis, and best shot optimization—no third-party analytics platform required.
• Vandal-Resistant Dome Housing: Aluminum construction with white RAL9003 finish; Ø180 x 125 mm (7.09 x 4.92 in) profile; IP66-rated weatherproofing for outdoor deployment; mounts to standard single/double gangs, 4-inch octagon, or square conduit boxes via 19.1 mm (3/4 inch) M25 compatible hole.
• PoE+ Powered: IEEE 802.3at Class 4 PoE+ input; maximum 20W consumption (typical 17W PoE+) or 12 VDC auxiliary supply (max 18.7W, typical 15W); single cable simplifies installation and reduces infrastructure cost.
• Modular Structure for Fast Deployment: Easy-access lens and internal component layout reduce on-site configuration time and simplify maintenance cycles in high-security perimeter installations.
• DORI Performance (EN62676-4): Detect persons at 204 ft wide, 608 ft tele; Observe at 82 ft / 243 ft; Recognize at 41 ft / 122 ft; Identify at 20 ft / 61 ft—supports broad exterior coverage and facial recognition in focal deployment zones.
• Environmental Operating Range: -50°C to +55°C (-58°F to +131°F) operational; -50°C to +60°C (-58°F to +140°F) storage; 0–90% RH non-condensing humidity tolerance for cold climates and high-humidity regions.
• Firmware Flexibility: Requires firmware v1.41.03 or later for face mask detection; SSM v2.10.8+, Genetec plugin v1.0+, and Milestone plugin v1.0.2+ support multi-VMS integration; dedicated Bridge firmware (v2.19.99) and WiseAI PAI modules (v1.02.05) enable rapid feature deployment.

Hanwha PNV-A9081R/KAP Integration & Compatibility

The PNV-A9081R/KAP integrates with major VMS platforms via ONVIF and proprietary plugins: Hanwha SmartSuite Manager (SSM) v2.10.8+, Genetec Security Center v1.0+, and Milestone Xprotect v1.0.2+. Cloud-connected deployments leverage Hanwha Vision CloudConnector v2.13.04 for hybrid on-premise and cloud archival workflows. Supported firmware includes non-box camera baseline (PNV-A9081R v1.41.04 and v1.41.02) and Wisenet P series AI stack with Blocked Exit Detection and WiseAI analytics modules. The modular structure accommodates standard single and double gang box mounting, 4-inch octagon, and square electrical conduit, enabling flexible ceiling and wall placement in new construction and retrofit installations.
