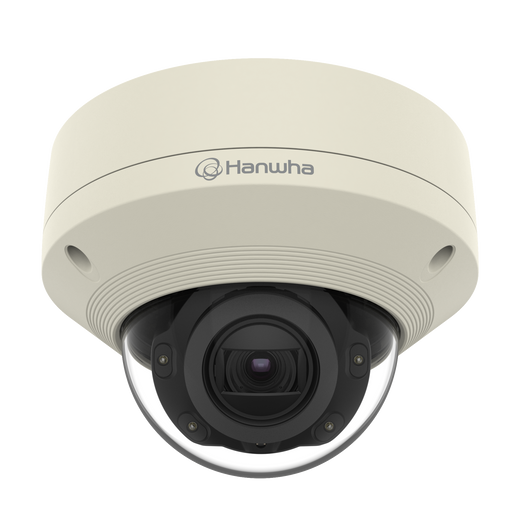

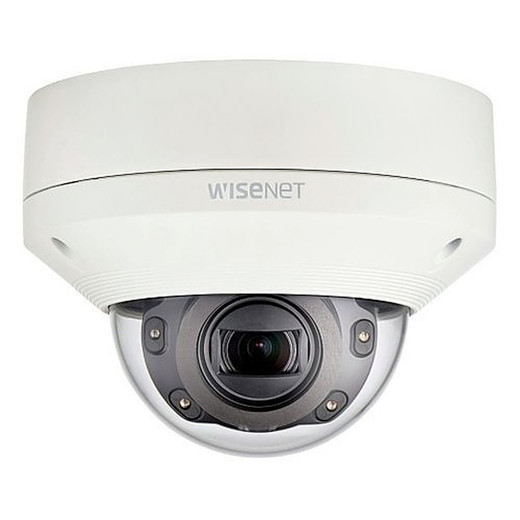

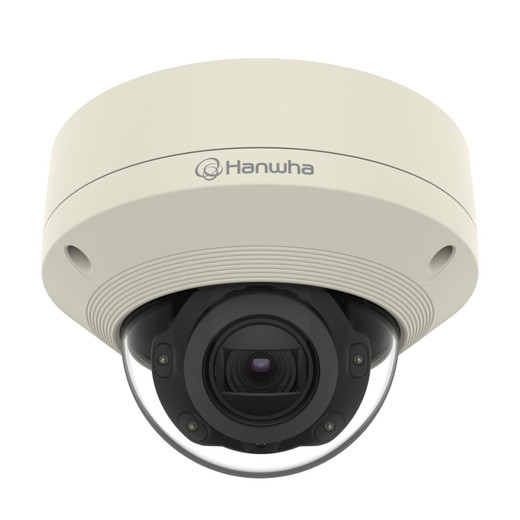

Hanwha XNV-6080R/KME 2MP IR Outdoor Vandal Dome

Hanwha XNV-6080R/KME Overview

The Hanwha XNV-6080R/KME is a 2MP infrared vandal dome camera purpose-built for outdoor perimeter and facility surveillance. This compact network camera delivers reliable day/night coverage in harsh environmental conditions, supported by a vandal-resistant dome design rated for operating temperatures from -40°C to +55°C. The XNV-6080R/KME integrates into IP-based security architectures via standard ONVIF compliance and edge storage capability, making it a cost-effective choice for integrators deploying distributed outdoor surveillance networks.

Hanwha XNV-6080R/KME Key Features

• 2 Megapixel resolution — delivers sufficient detail for facial and license plate recognition in typical outdoor deployments while maintaining manageable bandwidth and storage requirements.
• Infrared low-light capability — enables effective surveillance in complete darkness and low-illumination conditions without dependency on external lighting infrastructure.
• Vandal-resistant dome housing — ruggedized aluminum construction rated for outdoor environments, protecting the optics and sensor from physical tampering and environmental exposure.
• PoE powered (IEEE 802.3af, Class 3) — operates on standard PoE with maximum power consumption of 12.95W, eliminating the need for auxiliary power runs to remote dome locations. Supports alternative 24VAC and 12VDC inputs for legacy or split-power deployments.
• Compact form factor with standard conduit mounting — measures ø160 × 118.5mm (ø6.30 × 4.67 inches), weighing 995g (2.19 lbs); compatible with standard 12.7mm (1/2-inch, M20) conduit holes for rapid integration into existing junction box and canopy infrastructure.
• Edge storage with dual microSD/SDHC/SDxC support — accommodates up to 512GB total capacity across two card slots, enabling localized recording and failover recording during network interruptions.
• Enterprise-grade security framework — encrypted firmware, secure boot, signed firmware validation, digest authentication, IEEE 802.1X network authentication (EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2), HTTPS/WSS secure communication, IP-based access control, and AES-256 SD card partition encryption protect against unauthorized access and credential compromise.
• Wide environmental tolerance — rated for -40°C to +55°C operating temperature and 0–90% non-condensing humidity, with storage capability from -50°C to +60°C, supporting deployment in freezing, tropical, and transitional climate zones without performance degradation.
• Multicast and unicast streaming with up to 10 simultaneous profiles — supports up to 20 unicast users and multicast distribution, enabling flexible VMS integration and secondary stream delivery for analytics or mobile playback without overloading primary recording streams.
• Protocol-rich networking stack — implements IPv4, IPv6, TCP/IP, UDP/IP, RTP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, SNMP (v1/v2c/v3 with MIB-2), DNS, DDNS, QoS, UPnP, Bonjour, LLDP, and SRTP (TCP and UDP unicast), ensuring compatibility with legacy and modern network infrastructures.
• Device certificate and audit logging — signed with Hanwha Vision Root CA; comprehensive access, system, and event logging for forensic review and compliance documentation.

Hanwha XNV-6080R/KME Integration and Compatibility

The XNV-6080R/KME supports ONVIF Profile S, G, and T, ensuring certified interoperability with mainstream VMS platforms including Milestone, Genetec, Hanwha Vision Open Platform, and SUNAPI HTTP API integrations. Direct cloud connectivity is available via optional gateway. The camera implements SNMPv1/v2c/v3 for network management and monitoring within enterprise NMS deployments. Firmware updates are managed through a secure mechanism, with latest firmware (version 01 XND-6080_R65) published and signed for authenticated deployment across managed camera fleets.
