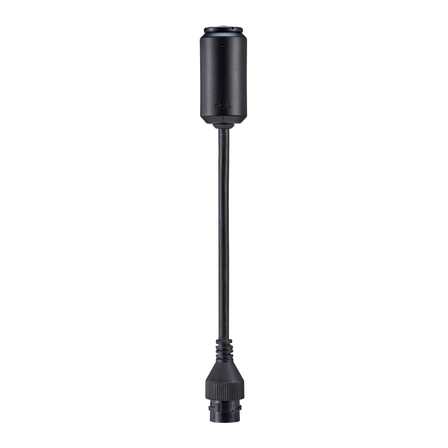

Hanwha SLA-T2880A 2.8mm Remote Lens Module

Hanwha SLA-T2880A Overview

The Hanwha SLA-T2880A is a 2MP remote lens module engineered for Hanwha Vision's AI remote head camera systems. This straight-body lens module features a 2.8mm fixed focal length and 8-meter cable assembly, enabling flexible lens placement up to 82 feet from the main camera body on compatible platforms including the PNM-C20000QB, PNM-9000QB, and XNB-6002.

Hanwha SLA-T2880A Optical & Performance Specifications

• 2MP resolution at 30 FPS
• 2.8mm fixed lens with 108° horizontal field of view
• 0.45 Lux minimum illumination for low-light environments
• 120dB Wide Dynamic Range for high-contrast scenes
• 8-meter (26 feet) integrated cable for remote placement flexibility
• Straight body form factor for compact mounting

Hanwha SLA-T2880A System Integration

• Compatible with PNM-C20000QB AI Remote Head Camera (up to 4 lens channels supported)
• Compatible with PNM-9000QB and XNB-6002 remote head platforms
• Connects to main camera body via USB-C for streamlined installation
• Works within the 82-foot remote lens connectivity range
