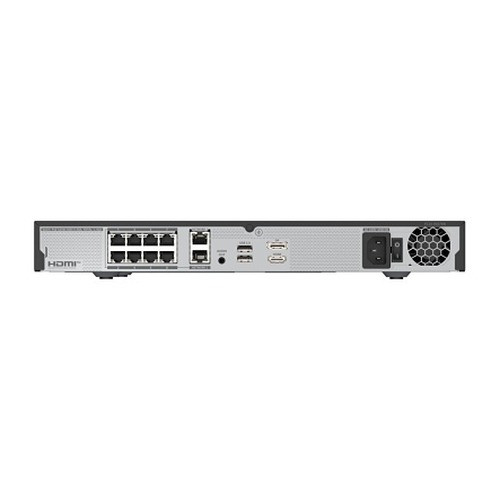

Hanwha WRN-816S-20TB Overview
The Hanwha WRN-816S-20TB is a 1U rackmount WAVE-based network video recorder designed for medium-scale IP surveillance deployments. This Intel-based NVR supports up to 16 channels with integrated 8 PoE/PoE+ ports, delivering 150 Mbps recording throughput and up to 20TB of internal raw storage capacity. It combines native Wisenet WAVE client support, mobile and Cloud Sync compatibility, and embedded Ubuntu 22.04 LTS for enterprise-grade reliability in both indoor installation and network monitoring environments.
Hanwha WRN-816S-20TB Key Features
- 16-Channel Network Video Recording: Supports up to 16 IP camera channels with flexible codec support including H.265, H.264, and MJPEG, optimizing bandwidth and storage efficiency across mixed camera deployments.
- Integrated 8 PoE/PoE+ Ports with 100W Budget: Built-in PoE power delivery (802.3at PoE+) provides up to 100W total power budget, eliminating the need for external injectors in smaller to medium installations.
- 150 Mbps Recording Throughput: Delivers sustained 150 Mbps maximum recording bandwidth, supporting simultaneous multi-stream capture from all 16 channels without frame rate compromise.
- Expandable 20TB Internal Storage: Two fixed internal SATA HDD slots accommodate up to 10TB per drive (20TB maximum combined), with support for Wisestream technology to optimize storage utilization without requiring external NAS.
- Wisenet WAVE Platform Pre-Installed: Ships with Wisenet WAVE software pre-installed, supporting Wave client, mobile applications, and Cloud Sync for remote monitoring, playback, and system management across distributed sites.
- AI Metadata Support: Enables AI-driven analytics and metadata extraction for advanced event searching, object detection, and integration with intelligent video management workflows.
- Dual Video Outputs for Configuration and Monitoring: Includes both HDMI (1) and DisplayPort (1) outputs for local configuration, basic monitoring, and dashboard display without requiring separate display adapters.
- Dual Gigabit Network Interfaces: Provides 2 dedicated WAN Gigabit Ethernet NICs (1 Gbps each) plus 8 PoE ports for flexible network architecture, supporting redundancy and segmented camera/management networks.
- Compact 1U Rackmount Form Factor: Measures 370mm (W) × 50.7mm (H) × 320mm (D) and weighs 2.78 kg, fitting standard 19-inch racks for centralized data center or server room deployment.
- Enterprise-Grade Operating System: Runs embedded Ubuntu 22.04 LTS with 8GB DDR4 RAM and 32GB eMMC OS storage, providing stability, security patches, and long-term platform support.
- Wide Operating Environment: Rated for 0°C to +40°C operating temperature and 20% to 85% RH humidity, suitable for climate-controlled indoor installations including equipment rooms and network closets.
- Universal Power Input: Accepts 100–240 VAC ±10% at 50/60 Hz with 170W typical power consumption, compatible with global electrical standards and UPS systems.
Hanwha WRN-816S-20TB Integration & Compatibility
The WRN-816S-20TB integrates with Hanwha's Wisenet WAVE ecosystem, supporting Wave client software, native mobile applications, and Cloud Sync for remote access and centralized monitoring. It connects via dual Gigabit Ethernet NICs (WAN) and internal PoE ports, enabling seamless IP-based deployment in standard network infrastructures. The unit ships with USB mouse and rack mount brackets to accelerate installation in server room and data center environments. All video streams support H.265, H.264, and MJPEG codecs, providing broad compatibility with third-party IP cameras from diverse manufacturers while maintaining codec flexibility for bandwidth optimization.
Hanwha WRN-816S-20TB Package Contents
- WRN-816S-20TB 1U NVR unit with pre-installed Wisenet WAVE software
- USB mouse for system navigation and configuration
- Rack mount brackets for 19-inch equipment rack installation
