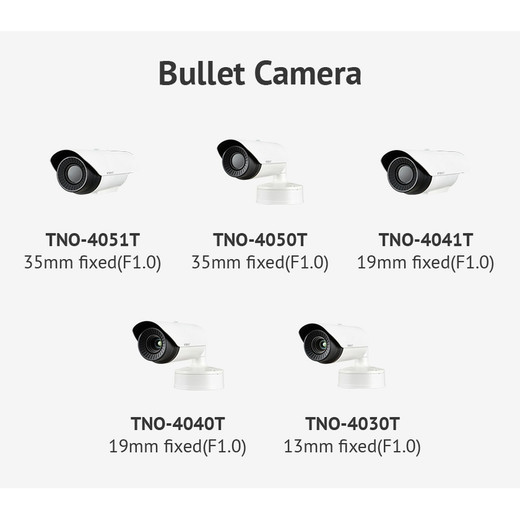

Hanwha TNO-4050T/KUS Thermal Bullet Camera

Hanwha TNO-4050T/KUS Overview

The Hanwha TNO-4050T/KUS is a fixed-lens uncooled thermal bullet camera engineered for outdoor security deployments where temperature monitoring and thermal detection are critical. This model delivers 640x480 thermal resolution at 30 fps across all compression formats, making it suitable for perimeter surveillance, facility monitoring, and incident detection in environments where conventional visible-light cameras are insufficient. The integrated 35mm fixed focal length (17.2°) and vandal-resistant form factor position this camera for exposed outdoor installations requiring rugged construction and reliable thermal performance in extreme conditions.

Hanwha TNO-4050T/KUS Key Features

• 640x480 VGA Thermal Resolution: Captures thermal imagery at 30 fps in H.265, H.264, and MJPEG formats, delivering consistent frame rates across all codec selections for flexible streaming and storage integration.
• 35mm Fixed Thermal Lens: Provides a 17.2° field of view with fixed focal length for permanent installation in defined monitoring zones without lens adjustment after deployment.
• Triple Codec Support with WiseStream II: H.265, H.264, and MJPEG compression enables bandwidth optimization and VMS interoperability; WiseStream II advanced compression reduces storage and network overhead without sacrificing video quality.
• Built-In SD/SDHC/SDxC Card Slot: Supports up to 256GB local storage for on-camera recording, edge retention, and backup during network interruptions.
• Advanced Video Analytics: Includes motion detection, loitering detection, directional detection, tampering detection, shock detection, and temperature change detection for intelligent event triggering and forensic review.
• Audio Detection and Sound Classification: Monitors ambient audio conditions and classifies sound types to enhance situational awareness beyond thermal imaging alone.
• IP66 Weatherproof / IK10 Vandal-Resistant Design: Sealed construction protects against dust, water spray, and environmental contaminants; IK10 impact resistance withstands deliberate physical tampering and accidental damage in harsh deployment environments.
• Multi-Power Input (PoE / 12VDC / 24VAC): Operates via IEEE 802.3af PoE (max 10W), 12V DC (max 9W), or 24V AC (max 10.5W), accommodating diverse infrastructure configurations and power delivery options.
• Hallway View and PTZ Handover Support: Enables flexible image orientation and seamless camera handoff to motorized PTZ units for extended coverage workflows.
• Digital Image Stabilization (DIS/Gyro): Compensates for camera movement and vibration to maintain stable thermal imagery in installations on moving platforms or structures subject to wind-induced motion.
• Integrated Back Box: Recessed mounting plate simplifies wall integration and reduces visible hardware footprint.

Hanwha TNO-4050T/KUS Integration & Compatibility

The TNO-4050T/KUS operates on an open platform architecture and supports ONVIF-based integration with industry-standard VMS platforms. Firmware updates and technical documentation are available from Hanwha Vision, and the camera is compatible with Hanwha ecosystem devices including bridge firmware controllers (SBP-303PM). Consult product manuals and quick guides for ONVIF profile confirmation, API access, and VMS-specific configuration requirements. This thermal camera is subject to Thermal Agreement licensing restrictions; verify compliance with export control and regulatory requirements before deployment.
