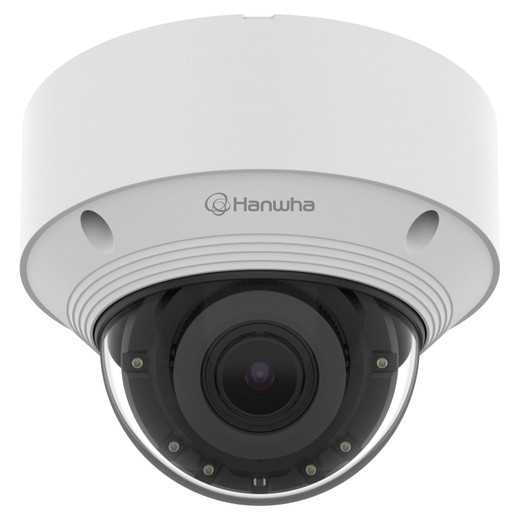

Hanwha QNV-C9083R/KEX Q network outdoor vandal dome camera

Hanwha QNV-C9083R/KEX Overview

The Hanwha QNV-C9083R/KEX is a 4K outdoor vandal-resistant dome camera engineered for high-security surveillance in demanding environments. This model delivers 8 MP resolution at 30 fps with a motorized varifocal lens (3.2–10.2mm), providing flexible field-of-view adjustment for diverse deployment scenarios. Built for outdoor installation with IP66 weatherproofing and IK10 vandal resistance, the QNV-C9083R/KEX combines robust optics with AI-powered video analytics and advanced noise reduction—ideal for integrators requiring enterprise-grade reliability in retail, transportation, critical infrastructure, and perimeter security applications.

Hanwha QNV-C9083R/KEX Key Features

• 4K UHD Resolution at 30 fps: Captures 8 MP video at 30 frames per second, delivering fine detail for investigative review and object classification at distance.
• Motorized Varifocal Lens (3.2–10.2mm): Horizontal field-of-view ranges from 104° (wide) to 31° (tele); vertical from 55° to 17°. Motorized adjustment allows remote zoom and focus tuning during deployment, eliminating manual lens changes on-site.
• Triple Codec Support with AI Compression: H.265, H.264, and MJPEG encoding with Wisestream III (AI-engine-based compression) for efficient bandwidth utilization without sacrificing image quality. Adaptive bitrate streams reduce storage and network overhead while maintaining forensic detail where needed.
• 120dB Wide Dynamic Range (WDR): Captures detail across extreme lighting conditions—bright storefronts adjacent to dark entryways, backlit scenes, and high-contrast sunlit areas—with minimal loss of shadow or highlight information.
• 30m IR Illumination (98 ft): Built-in infrared LEDs extend night-vision capability to 30 meters, enabling round-the-clock surveillance without auxiliary lighting. Ideal for unlit perimeters, parking areas, and after-hours monitoring.
• AI-Powered WiseNR Noise Reduction: Machine-learning-based temporal and spatial noise filtering removes codec and sensor noise while preserving edge sharpness and fine detail—critical for forensic investigations and downstream analytics.
• WiseMD-Based Video Analytics: On-board AI engine classifies objects as Person or Vehicle (with vehicle sub-types: car, bus, truck, motorcycle, bicycle). Intelligent events include virtual line crossing/direction detection, loitering, intrusion, area entry/exit, and appearance/disappearance triggers—reducing false alarms and enabling rule-based alerting.
• Hallway View Mode: Specialized de-warping for recessed or horizontal mounting scenarios, optimizing image composition in confined spaces and reducing installation constraints.
• IP66 Weatherproofing & IK10 Vandal Rating: Full dust and water resistance plus impact protection rated to withstand 20 joules of force. Suitable for outdoor, semi-exposed, and high-risk indoor environments.
• Selectable Audio Input: Integrated microphone or line-level audio input (via optional SPP-C7400 cable) enables two-way communication, incident documentation, and audio-based alerting—accessory cable includes alarm I/O connections.
• Built-in Storage & PoE Simplicity: SD card slot supports up to 256GB local backup recording. Single PoE (802.3af) connection eliminates separate power runs, reducing installation labor and infrastructure cost.
• Operating Range -30°C to +55°C: Rated for extreme cold and heat, meeting specifications for outdoor deployments in arctic, desert, or tropical climates.

Hanwha QNV-C9083R/KEX Integration & Compatibility

The QNV-C9083R/KEX supports ONVIF-compliant VMS platforms, enabling seamless integration with Milestone, Genetec, Hanwha Wave, and other industry-standard recording and management systems. USB connectivity simplifies initial configuration and firmware updates. Open platform architecture and on-board analytics processing reduce reliance on back-end servers, allowing flexible deployment in edge-computing and hybrid surveillance architectures. Defocus detection helps integrators verify proper lens focus during commissioning.

Hanwha QNV-C9083R/KEX Package Contents

• QNV-C9083R/KEX Vandal Dome Camera
