Hanwha QNV-C8011R/KEX Q mini network outdoor vandal dome camera

Hanwha QNV-C8011R/KEX Overview

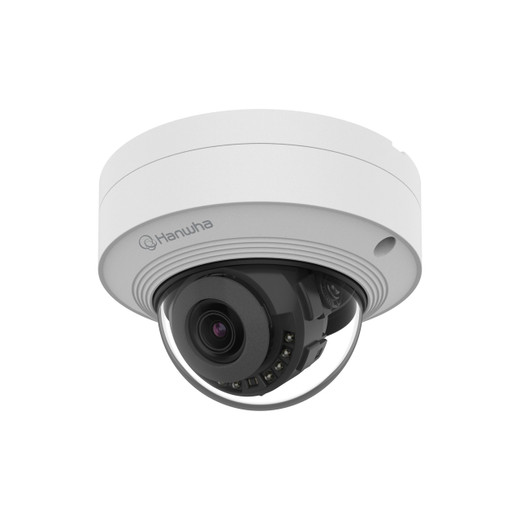

The Hanwha QNV-C8011R/KEX is a 5MP outdoor vandal-resistant dome camera designed for fixed-position surveillance in harsh environments. Built with aluminum construction and rated IP66/IK10, this mini dome delivers enterprise-grade video quality, advanced AI-powered analytics, and robust weatherproofing suitable for perimeter monitoring, facility access points, and outdoor infrastructure requiring vandal protection and long-term reliability.

Hanwha QNV-C8011R/KEX Key Features

• 5MP Resolution at 30 fps: Captures detailed video at 2560×1920 resolution, enabling clear facial recognition and vehicle identification across standard deployment distances.
• Triple Codec Support (H.265/H.264/MJPEG): Delivers flexible compression options with H.265 for bandwidth efficiency, H.264 for universal compatibility, and MJPEG for motion-triggered recording. Wisestream III AI-based compression further optimizes bandwidth without sacrificing quality.
• 120dB Wide Dynamic Range (WDR): Maintains image detail in high-contrast outdoor scenes with simultaneous bright and dark areas, critical for scenes with direct sunlight and deep shadows.
• 20-Meter (65.62 ft) IR Night Vision: Built-in IR illumination with 850nm wavelength extends surveillance capability through complete darkness and low-light conditions. WiseNR AI-based noise reduction enhances low-light image quality.
• AI-Powered Video Analytics (WiseMD): Classifies detected objects as Person or Vehicle (with vehicle subcategories: car, bus, truck, motorcycle, bicycle), reducing false alarms and enabling rule-based automation.
• Intelligent Virtual Events: Supports line-crossing detection (crossing/direction), area-based monitoring (loitering, intrusion, entry/exit, appearance/disappearance), defocus detection, and hallway view mode for corridor surveillance.
• 3mm Fixed Lens (H:100° / V:73°): Provides wide horizontal coverage ideal for perimeter sweeps and access control points without lens adjustment complexity.
• IP66 / IK10 Rated Enclosure: Fully sealed against dust and water jets; impact-rated to withstand 20 joules (equivalent to 5 kg ball dropped from 40 cm), meeting vandal-resistant dome standards.
• PoE (802.3af) Power: Maximum consumption of 8.5W typical (4.9W), allowing single-cable installation from standard PoE injectors or managed switches; simplifies deployment in outdoor locations.
• Extended Operating Temperature Range: Operates reliably from -40°C to +55°C (-40°F to +131°F), suitable for outdoor installations from arctic to desert climates. Aluminum construction resists corrosion in challenging environments.
• Onboard Storage & Edge Recording: MicroSD/SDHC/SDxC card slot (up to 256GB local; up to 1TB on cloud-capable variants) enables resilient edge recording independent of network availability. SD card partition encryption (AES-256) protects sensitive footage.
• Enterprise Security Features: Signed and encrypted firmware, secure boot, IEEE 802.1X network authentication (EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2), HTTPS/WSS secure communication, IP-based access control, and device certificate (Hanwha Vision Root CA) ensure camera-level cybersecurity compliance.

Hanwha QNV-C8011R/KEX Integration & Compatibility

The QNV-C8011R/KEX supports ONVIF Profile S, G, T, and M for broad VMS interoperability, including Milestone Integrated Platform, Axis Camera Station, and third-party ONVIF-compliant recorders. Network protocols include IPv4, IPv6, TCP/IP, UDP/IP, RTP, RTSP, DHCP, DNS, DDNS, NTP, MQTT, and SNMP (v1/v2c/v3 with MIB-2). Direct cloud connection is supported via Hanwha Vision CloudConnector. The camera exposes a full HTTP API (SUNAPI) and Hanwha Vision Open Platform for custom integrations and automation workflows. Two gigabytes of RAM and one gigabyte of flash provide ample headroom for advanced analytics processing. Standard ceiling and wall mounting hardware accommodates typical dome installation configurations.

Hanwha QNV-C8011R/KEX Environmental & Storage

The unit measures ø110 × 77 mm (ø4.33 × 3.03 inches) and weighs 522g (1.15 lb), enabling discreet installations without structural reinforcement. White finish (RAL 9003) blends into standard ceiling or wall environments. Storage temperature range extends to -50°C to +60°C (-58°F to +140°F) for warehouse and logistics applications. Startup is recommended above -30°C with humidity control via air vent to prevent condensation during cold deployments.
