Hanwha PNM-C34404RQPZ/KUS Overview

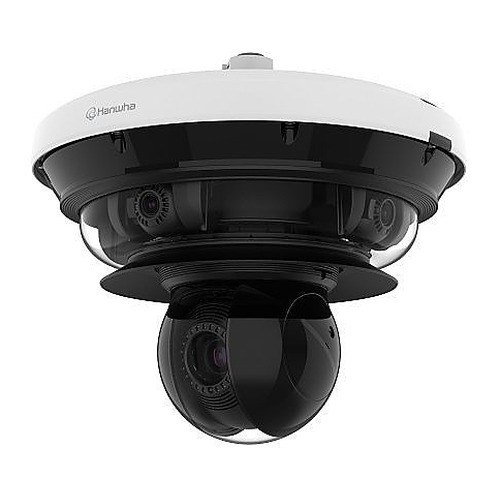

The Hanwha PNM-C34404RQPZ/KUS is a Wisenet P series network multi-directional PTZ camera designed for outdoor vandal-resistant surveillance. This hybrid system combines four independent 8MP fixed channels with an advanced pan-tilt-zoom turret, delivering simultaneous wide-area monitoring and targeted zoom coverage in a single compact unit. Built for harsh outdoor environments, it operates across extended temperature ranges (-40°C to +50°C) and meets IP66, IK10, and NEMA4X protection ratings.
Hanwha PNM-C34404RQPZ/KUS Key Features
- Quad 8MP Fixed + 40x PTZ Hybrid Architecture: Four independent 8MP channels capture 15 fps with AI enabled or 20 fps with AI disabled, while the PTZ turret delivers 40x optical zoom on a 2MP stream at 60 fps, enabling both perimeter coverage and detailed zoom-in identification in a single deployment.
- Extended-Range WiseIR Night Vision: Fixed channels provide 20m (65 ft) IR illumination; the PTZ module features Hanwha's WiseIR 200m (656 ft) range with AI-powered noise reduction for superior long-distance identification in complete darkness.
- Intelligent AI-Driven Analytics Engine: On-board AI enables object detection (Person, Vehicle: Car/Bus/Truck/Motorcycle/Bicycle), IVA events (virtual line/area crossing, enter/exit, loitering, direction, intrusion detection), appear/disappear detection, WiseNR (AI-based noise reduction), and WiseStream (AI-optimized bitrate reduction).
- Triple Codec Compression (H.265/H.264/MJPEG): Flexible codec selection with H.265 support delivers superior compression efficiency for reduced bandwidth and storage, while H.264 and MJPEG options ensure compatibility with legacy VMS platforms.
- 120dB Wide Dynamic Range (WDR): Advanced WDR processing handles extreme lighting transitions between sun-facing glass and dark building shadows, critical for outdoor perimeter surveillance and high-contrast security gates.
- Varifocal PTZ Lens (3.3–5.7mm, 40x Zoom): Horizontal field of view ranges from 109° (wide) to 56° (40x zoom); vertical from 55° to 31°, enabling seamless zoom from wide-angle perimeter view to tele-zoom face/license plate capture in single operation.
- Hard-Coated Polycarbonate Dome with Vandal Rating: IK10 impact resistance and NEMA4X stainless-steel construction withstand aggressive vandalism, salt spray, and extreme weather; IP66 sealing prevents water and dust ingress in outdoor industrial deployments.
- Dual microSD Card Slots (512GB × 2) with Edge Storage: On-device recording capacity up to 1TB eliminates dependency on central NVR for short-term edge backup; supports failover and redundant archiving in distributed surveillance architectures.
- HPoE (High-Power PoE) with Integrated Injector: Powered via single Ethernet cable; injector included in package reduces installation footprint and simplifies cabling in retrofit outdoor deployments.
- TPM 2.0 with FIPS 140-2 Level 2 Certification: Hardware security module enables secure firmware updates, encrypted credential storage, and compliance with federal cybersecurity mandates (FIPS 140-2 Level 2 validated).
- I/O Box Compatibility: Expandable alarm I/O via external box for integration with access control, gate triggers, and third-party sensor ecosystems; supports event-driven automation workflows.
- Remote Pan-Tilt-Rotate (PTRZ) Control: Network-based PTRZ lens manipulation via VMS or mobile client enables live zoom, focus, and rotation without on-site PTZ control hardware; 40x zoom range supports full-frame face capture from 50+ meters.
Hanwha PNM-C34404RQPZ/KUS Integration & Compatibility
The camera supports standard ONVIF interfaces for compatibility with third-party VMS platforms including Milestone Surveillance, Genetec, and other ONVIF-compliant recording software. I/O Box connectivity extends integration to access control and sensor networks. The camera's AI analytics engine operates independently on-device, eliminating the need for external GPU servers or edge compute appliances. HPoE power delivery via single Ethernet conductor simplifies infrastructure in congested outdoor installations. Dual microSD recording enables local archival independent of central NVR, supporting edge-based failover in distributed security architectures.
Hanwha PNM-C34404RQPZ/KUS Package Contents
- Hanwha PNM-C34404RQPZ/KUS Multi-Directional PTZ Camera Unit
- HPoE Injector
