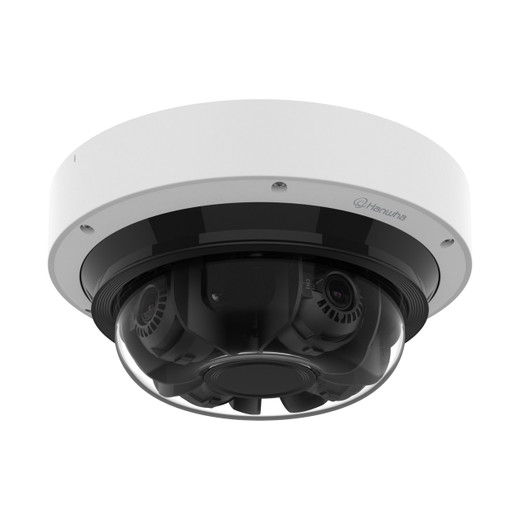

Hanwha PNM-C32083RVQ/KEX P series network vandal outdoor

Hanwha PNM-C32083RVQ/KEX Overview

The Hanwha PNM-C32083RVQ/KEX is a 4-channel multi-directional outdoor vandal dome camera engineered for high-security surveillance deployments. This Wisenet P series camera delivers simultaneous 8MP streams across four channels with AI-driven analytics, a motorized varifocal lens (3.3–5.7mm), and 120dB Wide Dynamic Range for challenging lighting conditions. Rated IP66 and IK10 for outdoor durability, it operates reliably from -40°C to +55°C and supports both PoE+ and High-Power PoE (HPoE) for flexible installation in integrated security environments.

Hanwha PNM-C32083RVQ/KEX Key Features

• Multi-Channel 4K×4 Architecture: Capture and process four simultaneous 8MP streams (AI ON: 15 fps; AI OFF: 20 fps) for comprehensive 360° coverage from a single dome unit.
• Motorized Varifocal Lens with Wide Field of View: 3.3–5.7mm varifocal optics deliver horizontal FOV from 109° (wide) to 56° (tele) and vertical FOV from 55° to 31°, enabling flexible scene composition and digital zoom without image degradation.
• AI-Powered Object Detection & Analytics: Deep learning engine classifies persons and vehicles (car, bus, truck, motorcycle, bicycle) with 360° intelligent video analytics including virtual line crossing, area intrusion, loitering detection, directional tracking, and appear/disappear events—all without reliance on external AI appliances.
• Advanced Night Vision and Extreme WDR: 120dB forensic WDR manages high-contrast scenes; IR illumination extends night visibility to 15m on PoE+ or 20m on HPoE (High-Power PoE), with configurable IR range for optimized performance in varied outdoor conditions.
• Triple Codec Support: H.265, H.264, and MJPEG compression options enable bandwidth optimization and legacy system compatibility. AI-based WiseStream and WiseNR (noise reduction) further reduce storage and network overhead.
• Enterprise Cybersecurity & Compliance: TPM 2.0 with FIPS 140-2 Level 2 certification ensures secure boot and signed firmware. Supports standards-based authentication and secure credential management across enterprise networks.
• Flexible Storage & Redundancy: Dual microSD card slots (512GB each) provide local backup storage for critical surveillance data, with hot-swap capability for uninterrupted operation during card replacement.
• Extreme Environmental Rating: IP66 (dust and water jet protection) and IK10 (vandal resistance to 20J impacts) with NEMA 4X stainless-grade construction withstand harsh outdoor, coastal, and high-security perimeters. Operating temperature range -40°C to +55°C handles arctic and desert deployments.
• PoE+ and High-Power PoE Options: Draw up to 25.5W on standard PoE+ (IEEE 802.3at Class 4) or scale to HPoE for extended IR range and future feature expansion without additional power drops.
• Hard-Coated Protective Dome: Durable hard-coated polycarbonate bubble resists scratching, fogging, and UV degradation, maintaining optical clarity in demanding outdoor environments.

Hanwha PNM-C32083RVQ/KEX Integration & Compatibility

The PNM-C32083RVQ/KEX integrates with Hanwha Wisenet ecosystems and ONVIF-compliant Video Management Systems through standard IP/HTTP protocols. Compatible I/O box configurations enable integration with external alarm triggers and relay outputs. Firmware updates via USB port and bundled CloudConnector software (CV5 v2.13.04) facilitate both on-premises and cloud-hybrid deployments. Conduit hole compatibility with 19.1mm (3/4" M25) and gang box support (single, double, 4" octagon, square) accommodates flexible installation on existing structure and junction boxes. The camera supports standard ceiling and wall mounts through the dome housing.

Hanwha PNM-C32083RVQ/KEX Environmental & Electrical Specifications

Operating Conditions: Temperature -40°C to +55°C (-40°F to +131°F); humidity 0–95% RH non-condensing. Startup requires temperature above -35°C with humidity control via AIRVENT. Storage Conditions: Temperature -50°C to +60°C (-58°F to +140°F); humidity 0–90% RH non-condensing. Power Input: PoE+ (IEEE 802.3at Class 4) max. 25.5W typical 22W, or PoE++ (IEEE 802.3bt Type 3 Class 6) max. 30W typical 22W. Certifications & Standards: EMC: FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA-EN55032 Class A, EN 50130-4, EN61000-3-2, EN61000-3-3, VCCI CISPR 32 Class A, RCA/AS-NZS CISPR 32 Class A, KSC 9832 Class A, KSC 9835. Safety: UL 62368-1, CAN/CSA C22.2 No. 62368-1, IEC 62471. Environment: IEC/EN 63000, IEC 60529 (IP66), IEC 62262 (IK10), NEMA 250 Type 4X. DORI (EN 62676-4 Standard): Detect (25 PPM/8 PPF) wide 54.8m/tele 144.4m; Observe (63 PPM/19 PPF) wide 21.9m/tele 57.8m; Recognize (125 PPM/38 PPF) wide 11.0m/tele 28.9m; Identify (250 PPM/76 PPF) wide 5.5m/tele 14.4m.
