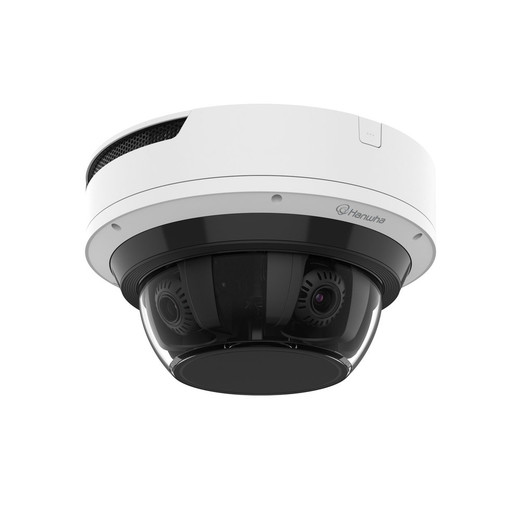

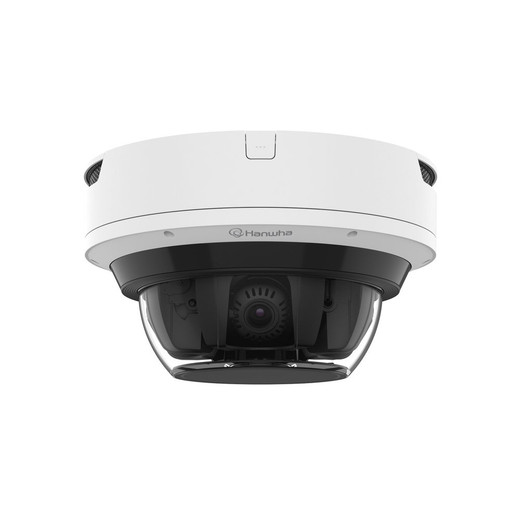

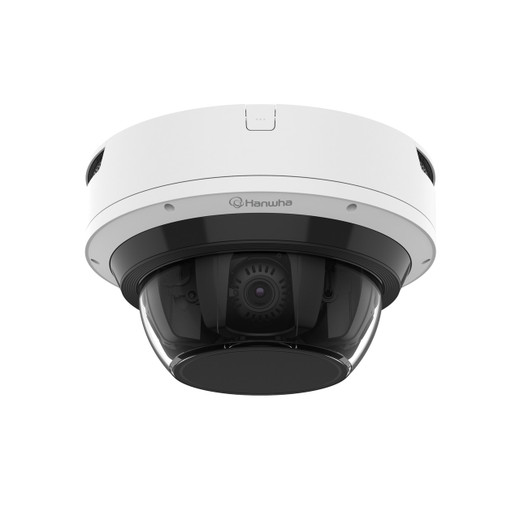

Hanwha PNM-C32084RQZ P series network vandal outdoor

Hanwha PNM-C32084RQZ Overview

The Hanwha PNM-C32084RQZ is a 4-channel 8MP multi-directional outdoor vandal dome camera designed for enterprise surveillance deployments requiring independent pan-tilt-rotate-zoom (PTRZ) control across four separate camera modules. This model integrates NVIDIA Jetson Orin NX processing (8GB or 16GB options) for on-camera AI analytics, eliminating the need for external edge compute hardware while delivering forensic-grade image capture and intelligent event detection across dynamic outdoor environments.

Hanwha PNM-C32084RQZ Key Features

• 4-Channel 8MP Multi-Directional Capture: Four independent 8MP sensors deliver simultaneous 360° coverage with 4-channel x 8MP@20fps (H.265/H.264, AI off) or 4-channel x 8MP@15fps with AI analytics enabled, supporting flexible deployment for perimeter and multi-zone surveillance.
• Motorized Varifocal Lenses with PTRZ Control: Each channel includes a 4.38–9.33mm (2.13x) motorized varifocal lens with independent pan, tilt, rotate, and digital zoom adjustment per lens for rapid field deployment and angle optimization without manual lens changes.
• Advanced AI Analytics with Object Classification: Powered by NVIDIA Jetson Orin NX (up to 117 TOPS), the camera performs real-time AI-based object detection (Person, Face, Vehicle, License Plate), vehicle attribute classification (type, color), person clothing color recognition, virtual line crossing/direction analytics, virtual area intrusion/loitering/enter/exit detection, and standard motion, defocus, tampering, and audio detection without VMS dependencies.
• WiseIR 25m Night Vision: Built-in infrared illumination extends operational range to 25 meters (82 feet) in complete darkness, with IR optimized for outdoor perimeter and high-traffic area surveillance where ambient light is insufficient.
• H.265/H.264/MJPEG Triple Codec Support: Flexible compression options with AI-based WiseNRII noise reduction, automatic preferred shutter control, and WiseStreamIII bitrate optimization reduce storage and bandwidth requirements while maintaining image forensic quality.
• 120dB Wide Dynamic Range (WDR): Forensic-grade WDR processing handles mixed lighting conditions including direct sunlight, shadows, and reflective surfaces, critical for outdoor parking lots, loading docks, and mixed day/night transitions.
• Heavy-Duty Outdoor Vandal Ratings: IP66 dust/water immersion protection, IK10 impact resistance (50J equivalent), NEMA 4X corrosion rating, and 150 MPH wind-load certification ensure long-term durability in harsh environments without dome replacement or performance degradation.
• HPoE++ Power Delivery (IEEE 802.3bt Type 4, Class 8): Single cable deployment with maximum 71W power consumption (typical 40W), reducing installation footprint and enabling remote power management via standards-compliant PoE++ injectors included with the system.
• Integrated Edge Storage and Processing: Dual microSD/SDHC/SDXC card slots support up to 1TB total (2 × 512GB), enabling local analytics archiving and extended backup recording independent of network availability or NMS infrastructure.
• NVIDIA Jetson Orin NX 8GB/16GB Integration: Factory-integrated edge AI platform with JetPack 5.1 (supports 6.x and above) eliminates separate edge device procurement, licensing, and synchronization overhead while reducing latency for real-time alerting.
• Tamper Detection and Security Controls: Hardware tamper switch triggers alerts on dome removal; TPM 2.0 with FIPS 140-2 Level 2 certification protects cryptographic keys and firmware integrity against unauthorized modification.
• Individual Channel Flexibility: Per-channel hallway mode (90°/270° rotation), flip, and mirror operations enable custom framing for each of the four lenses; MQTT support and optional Network I/O box (SPM-4210) integration enable audio detection and sound classification for multi-sensor threat detection.

Hanwha PNM-C32084RQZ Integration & Compatibility

The PNM-C32084RQZ operates as an open-architecture edge device compatible with standard ONVIF protocols and MQTT messaging for seamless integration into Milestone XProtect, Hanwha Wave, Genetec Security Center, and third-party VMS platforms. The included Jetson Orin NX 8GB or 16GB with JetPack 5.1+ supports custom Python/C++ analytics deployment via NVIDIA CUDA ecosystem, enabling integrators to extend AI capabilities beyond factory presets. Metal-shielded RJ-45 connectors with IEEE 802.3bt PoE++ support provide secure, long-distance deployments up to 100m (328 ft) with certified injectors. Compatible mounting options include single and double gang boxes, 4-inch octagon fixtures, and standard square conduit with 19.1mm (3/4") M25 thread compatibility, enabling flexible ceiling, wall, and pendant pole installations. Hardware specifications include a single Ethernet 10Base-T/100Base-TX/1000Base-TX interface with digital I/O via optional SPM-4210 Network I/O Box for external relay, audio input/output, and analog sensor integration.

Hanwha PNM-C32084RQZ Package Contents

• Hanwha PNM-C32084RQZ multi-directional dome camera with integrated Jetson Orin NX (8GB or 16GB selected SKU)
• 256GB M.2 SSD (factory installed; additional M.2 SSD expansion supported)
• IEEE 802.3bt Type 4 Class 8 PoE++ injector
• JetPack 5.1 preloaded on integrated Orin NX platform
