Hanwha PNM-C16083RVQ/KEX P series network vandal outdoor

Hanwha PNM-C16083RVQ/KEX Overview

The Hanwha PNM-C16083RVQ/KEX is a 4MP x 4-channel multi-directional outdoor dome camera designed for demanding surveillance environments requiring robust vandal resistance and comprehensive AI-driven analytics. Built for outdoor deployment with IP66 and IK10 protection ratings, this Wisenet P series camera delivers persistent threat detection across 360° with motorized varifocal optics and triple codec support, making it ideal for secure perimeters, retail complexes, and critical infrastructure monitoring.

Hanwha PNM-C16083RVQ/KEX Key Features

• 4MP x 4-Channel Resolution at 30 FPS: Dual simultaneous streams (4MP main + secondary) enabling flexible recording and live monitoring across four directional channels from a single dome unit.
• 120dB Wide Dynamic Range (WDR): Forensic-grade WDR compensation handles extreme lighting contrasts, ensuring usable detail in backlit outdoor scenes and shadows without image degradation.
• Motorized Varifocal Lens (3.3–5.7mm): Horizontal field of view ranges from 100° (wide) to 53° (tele); vertical coverage from 54° to 30°. Remote lens adjustment during installation and operation eliminates field revisits for focal length tuning.
• 360° AI-Powered Analytics: Classified object detection (Person, Vehicle subtypes: Car/Bus/Truck/Motorcycle/Bicycle), attribute search, loitering detection, virtual line/area crossing, enter/exit events, direction analysis, and intrusion alerts. WiseNR noise reduction and WiseStream AI-based codec optimization reduce storage and bandwidth consumption.
• Extended IR Night Vision: 15m (49 ft) IR effective range on standard PoE+ power; extends to 20m (65 ft) with HPoE supply. Hard-coated dome bubble reduces IR reflection and glare artifacts.
• Triple Codec Support (H.265/H.264/MJPEG): H.265 main-profile encoding minimizes bitrate; H.264 and MJPEG fallback for legacy VMS and edge recorder compatibility.
• PoE+ and HPoE Power Options: Operates on IEEE 802.3at PoE+ (25.5W max, 22W typical) or IEEE 802.3bt type 3 PoE++ (30W max, 22W typical) for extended feature utilization and IR reach.
• Dual Micro SD Card Slots (up to 512GB each): Built-in edge storage supports continuous recording and AI event caching; 1TB total capacity provides weeks of failsafe backup independent of network connectivity.
• Enterprise Security & Compliance: TPM with FIPS 140-2 Level 2 certification ensures firmware integrity and cryptographic operations; USB port simplifies secure image/firmware transfer during installation and maintenance.
• Extreme Environmental Durability: IP66 (dust/jet-water sealed), IK10 (1.2m drop test), NEMA 4X (corrosion-resistant aluminum enclosure, RAL 9003 white finish), and -40°C to +55°C operating range. Hard-coated dome reduces optical artifacts and UV degradation.

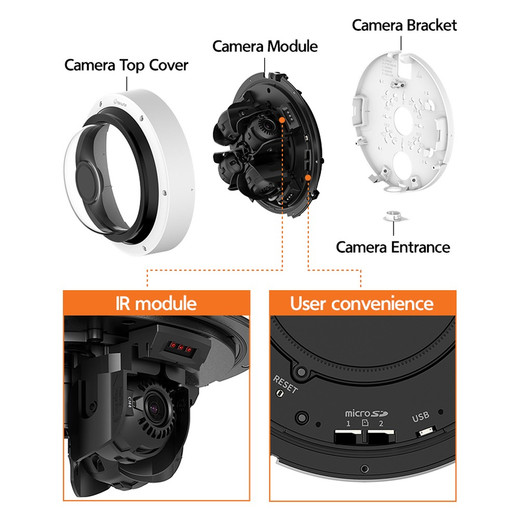

• Compact Multi-Directional Dome Design: ø250 x 114.2mm form factor with 2,730g weight mounts on single, double, 4" octagon, or square gang boxes via compatible 19.1mm (M25) conduit hole. Aesthetically low-profile for visible deterrence without architectural intrusion.

Hanwha PNM-C16083RVQ/KEX Integration & Compatibility

The PNM-C16083RVQ/KEX supports ONVIF protocol for cross-platform VMS integration. I/O Box connectivity enables relay outputs for alarm signaling and auxiliary device control. USB port facilitates direct forensic image export and firmware updates without network dependency. Compliant with FCC, ICES-3, CE/UKCA, IEC/EN 63000, IEC 60529 (IP66), and IEC 62262 (IK10) standards, ensuring seamless deployment in North American and European surveillance ecosystems. Compatible with Hanwha Vision CloudConnector and ONVIF Profile S/T systems for centralized management across heterogeneous camera fleets.
