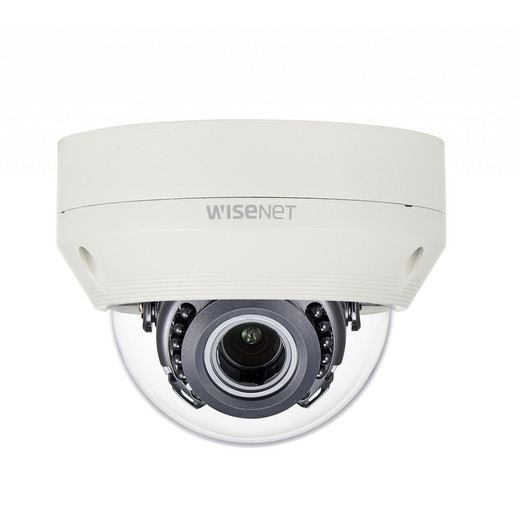

Hanwha SCV-6085R Overview
The Hanwha SCV-6085R is a 2MP AHD (Analog High Definition) IR vandal-resistant dome camera designed for outdoor surveillance deployments where legacy coaxial cabling infrastructure must be leveraged without costly replacement. This WiseNet HD+ model delivers Full HD (1920x1080) resolution at 30 fps with integrated IR illumination for round-the-clock monitoring, making it an efficient upgrade path for existing analog systems seeking HD-quality video over standard 5C2V coax cable.
Hanwha SCV-6085R Key Features
- Full HD 1080p Resolution at 30 fps — Captures crisp, detailed video at 1920x1080 resolution with 30 fps frame rate (25 fps in PAL regions), delivering superior image clarity over standard definition analog cameras.
- IR Night Vision with 30m Viewable Range — Integrated IR LED illuminators provide zero-lux operation in complete darkness with a 98.4 ft (30m) viewable distance, enabling 24/7 surveillance in unlit outdoor environments without auxiliary lighting.
- 3.1x Varifocal Lens (3.2–10mm) — Manual varifocal lens with DC auto iris and F1.6 maximum aperture ratio allows flexible field-of-view adjustment from 110.2° (wide) to 32° (telephoto) without requiring lens replacement, with pan/tilt/rotate capability (0–350° pan, 0–67° tilt, 0–355° rotate).
- Vandal-Resistant Dome Enclosure — Aluminum construction with compact form factor (Ø137 x 106.1mm, 715g / 5.39" x 4.18", 1.58 lbs) designed to withstand physical tampering in high-risk outdoor deployments.
- Extended Coaxial Transmission Distance — AHD signal transmission up to 500m (1,640 ft) over standard 5C2V coaxial cable eliminates the need for infrastructure upgrades, preserving existing cabling investments.
- Advanced Image Processing — Day/Night (ICR) operation with electronic shutter speed range (1–1/12,000 sec), digital image stabilization, defog capability, and support for 4 motion detection zones to reduce false alarms and improve situational awareness.
- Flexible Gain and White Balance Control — Multiple gain levels (Low, Middle, High, Very High) and white balance modes (ATW, AWC, Manual, Indoor, Outdoor) optimize video quality across varying lighting conditions and scene types.
- Privacy Masking and Video Rotation — Support for 8 rectangular privacy masking zones and video rotation options (flip, mirror, hallway view at 90°/270°) to comply with privacy regulations and optimize display orientation.
- Low Power Consumption — Operating at 0.46A @ 12 VDC or 0.45A @ 24 VAC with minimal thermal footprint, reducing strain on power distribution systems in large-scale deployments.
- Wide Operating Temperature Range — Rated for -30°C to +55°C (-22°F to +131°F) with non-condensing humidity up to 90% RH, ensuring reliable operation in extreme outdoor climates without environmental enclosures.
- Alarm Interface and Triggering — Built-in alarm input/output capability (1 output) with configurable triggers and events for integration with external alarm systems and automation workflows.
- OSD and Control Flexibility — Integrated joystick-based on-screen display (OSD) for direct camera configuration, or remote control via coaxial cable protocol (ACP) when paired with Hanwha WiseNet HD+ DVRs, streamlining installation and maintenance.
Hanwha SCV-6085R Integration & Compatibility
The SCV-6085R operates as an AHD (Analog High Definition) camera and is designed for integration with Hanwha WiseNet HD+ DVRs that support AHD protocol and coaxial control (ACP). The camera outputs video via BNC connector in both AHD 2MP and CVBS (analog composite video) formats, allowing backward compatibility with legacy analog DVRs if required. Setup and configuration are controlled via the built-in joystick OSD interface or remotely through compatible DVR systems. This camera is suitable for retrofit and upgrade scenarios in facilities with existing coaxial cabling infrastructure where network-based migration is not immediately feasible.
