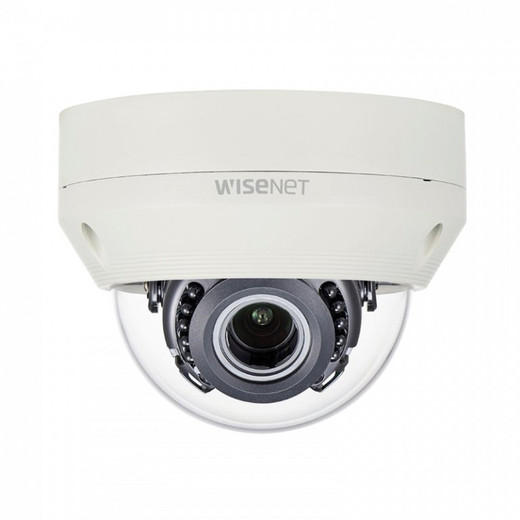

Hanwha HCV-6070R HD+ 2MP

Hanwha HCV-6070R Overview

The Hanwha HCV-6070R is a 2MP Full HD (1080p) analog HD outdoor dome camera engineered for harsh weathering and impact resistance in surveillance deployments. This Wisenet HD+ camera combines true Day/Night operation with 120dB WDR and long-range infrared illumination to deliver reliable coverage in variable lighting conditions. The HCV-6070R's IP66-rated aluminum housing and IK10 vandal rating make it suitable for exposed outdoor installations where environmental durability and tamper resistance are critical.

Hanwha HCV-6070R Key Features

• Full HD 1080p Resolution at 30 fps — Captures clear 2MP video at 30 frames per second, supporting color capture at 0.11 Lux (F1.6) and monochrome operation at 0 Lux with IR LED activation for 24/7 surveillance capability.
• 120dB True Wide Dynamic Range (WDR) — Handles extreme lighting contrasts between bright and dark areas simultaneously, preserving detail in both highlights and shadows without washout or loss of visibility.
• Manual Varifocal 3.2-10mm Lens with 3.1x Zoom — Field-adjustable focal length allows on-site optimization for specific coverage needs without lens replacement, scaling from wide-angle to telephoto perspectives.
• 98-Foot Infrared Range — Integrated IR LED array delivers effective illumination at 30 meters (98.43 feet) for extended nighttime viewing, enabling surveillance in complete darkness with active IR augmentation.
• IP66/IK10 Environmental & Mechanical Protection — Sealed aluminum dome housing rated IP66 (dust-tight, high-pressure water jets) and IK10 (vandal-resistant to impact), engineered for outdoor rooftop, exterior wall, and exposed perimeter deployments.
• Dual Power Supply (24VAC / 12VDC) — Flexible power input options simplify integration into diverse wiring infrastructure; maximum consumption 4.2W on either supply.
• Coaxial Protocol Support (AHD/TVI/CVI/CVBS) — Native compatibility with multiple analog HD standards—ACP, TCP, CCP, and legacy CVBS—enabling deployment across mixed analog systems without format conversion.
• SSNR IV Digital Noise Reduction — Proprietary spatial-spectral noise reduction minimizes graininess in low-light conditions while preserving edge detail and reducing video compression artifacts.
• Day & Night with ICR (IR Cut Filter) — Automatic infrared cut filter (ICR) switching optimizes white balance and color reproduction during day operation; disengages at night to maximize IR sensitivity.
• Advanced Motion Detection & Privacy Zones — Integrated motion detection with 4 configurable alarm outputs and 8 privacy masking zones for rectangular region protection.
• 500-Meter Coaxial Transmission Distance — Extended transmission capability over legacy coaxial cabling reduces the need for intermediate amplification or signal regeneration in large analog deployments.
• Plug-and-Play Installation with Dual Power — Straightforward setup requiring only video coaxial and power connections; RS-485 support enables remote configuration and telemetry.

Hanwha HCV-6070R Integration & Compatibility

The HCV-6070R operates natively as an analog HD camera supporting AHD, TVI, CVI, and CVBS protocols, enabling direct integration into hybrid DVR systems and existing coaxial surveillance infrastructure. Coaxial protocol compatibility (ACP, TCP, CCP) ensures transparent interoperability with Hanwha analog recorders and third-party AHD/TVI/CVI capable systems. RS-485 serial interface supports remote pan-tilt, iris, and focus control where applicable, and motion detection triggers can be routed to alarm inputs on compatible NVRs and DVRs. A comprehensive range of Hanwha-certified mounting accessories—including dome mounts (SBP-137WM1), wall mounts (SBP-300B), pendant mounts (SBP-300CM), pole mounts (SBP-300PM1), parapet mounts (SBP-300LM), corner mounts (SBP-300KM1), gooseneck mounts (SBP-300WM), installation boxes (SBP-300NB), and protective bubble domes (SPB-VAN72)—ensures flexible deployment across building typologies and mounting surfaces. The camera is verified as NDAA-compliant per Hanwha Vision's published compliance documentation.
