Hanwha PNM-7000VD/KWF Overview

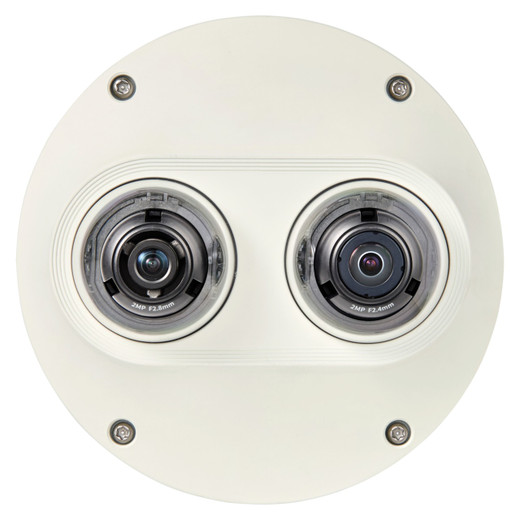

The Hanwha PNM-7000VD/KWF is a multi-sensor outdoor dome camera engineered for demanding surveillance applications requiring robust environmental protection and flexible field-of-view coverage. This vandal-resistant unit combines two 2MP imaging sensors with interchangeable lens modules and WiseStream II compression technology, delivering 4MP resolution at 60 fps when both sensors operate simultaneously. Purpose-built for outdoor deployment, the PNM-7000VD/KWF withstands extreme weather and physical abuse across temperature ranges from -40°C to +55°C.
Hanwha PNM-7000VD/KWF Key Features
- Dual 2MP CMOS Sensors with Modular Lens Architecture: Each 1/2.8" imaging sensor supports field-swappable lens modules available in 2.4mm (135.4° H FOV), 2.8mm, 3.6mm, and 6mm fixed focal lengths. Pan, tilt, and rotate capability (-176° to +176° pan, 0° to 30° tilt, -90° to +90° rotate) enables flexible mounting and directional adjustment without repositioning the camera body.
- 4MP Simultaneous Capture at 60 fps: Delivers 4MP aggregate resolution at 60 frames per second when both 2MP sensors are active, providing high-frame-rate coverage for motion-critical applications and wide area surveillance scenarios.
- Triple Codec Support with WiseStream II: Encodes video in H.265, H.264, and MJPEG formats with integrated WiseStream II adaptive bitrate technology, reducing bandwidth consumption and storage overhead while maintaining image fidelity across varying scene complexity.
- 150dB WDR (Wide Dynamic Range): Handles challenging lighting conditions with simultaneously visible detail in high-brightness and shadow areas, critical for entrances, loading docks, and mixed-lighting outdoor perimeters.
- 150dB WDR, HLC, and Defog Detection: Beyond WDR, includes Hallway Logic Control (HLC) to suppress bright light sources and defog detection algorithms to optimize image clarity in misty or foggy conditions typical of coastal, industrial, and agricultural deployments.
- Built-in Video Analytics: Integrated analytics enable real-time detection and alerting without external processing, reducing system complexity and lowering overall cost of ownership for mid-tier surveillance networks.
- Dual SD Card Storage: Supports two microSD cards for expanded local recording, redundancy, and edge-based failover storage independent of central NVR systems.
- IP66 / IK10 Rated Vandal-Resistant Housing: Fully dust-sealed (IP66) and rated to withstand impact force equivalent to 40 joules (IK10), meeting or exceeding requirements for outdoor, exposed, and high-risk perimeter installations where tampering is a concern.
- PoE Powered (802.3af): Operates on standard Power over Ethernet, eliminating separate power infrastructure and simplifying cabling in both new and retrofit deployments across campus, industrial, and municipal networks.
- Hallway View Mode: Dedicated video orientation for corridor, hallway, and entrance monitoring allows landscape-oriented coverage from vertically mounted domes, maximizing usable field of view in constrained spaces.
- Digital Image Stabilization (DIS): Compensates for minor camera vibration and movement, essential for outdoor fixed domes exposed to wind load or low-frequency structural vibration in industrial and urban environments.
Hanwha PNM-7000VD/KWF Integration & Compatibility
The PNM-7000VD/KWF integrates with ONVIF-compatible video management systems and network infrastructure supporting standard 10/100 Mbps Ethernet connectivity. Lens modules are sold separately; specify the desired focal length (SLA-2M2400D for 2.4mm, SLA-2M2800D for 2.8mm, SLA-2M3600D for 3.6mm, or SLA-2M6000D for 6mm) during procurement to match deployment requirements. The camera's multi-sensor architecture and field-configurable lenses make it suitable for wide-area outdoor coverage, multi-directional monitoring, and applications requiring flexible aspect ratio support including hallway and landscape orientations.
