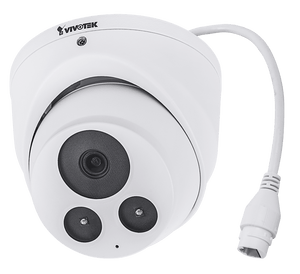

Vivotek IT9380-HF3 5MP Outdoor WDR Pro Night Vision IR Turret IP Camera

Vivotek IT9380-HF3 5MP Outdoor WDR Pro IR Turret Camera

The Vivotek IT9380-HF3 is a professional-grade 5MP outdoor turret IP camera engineered for demanding surveillance applications. Built with a 1/2.7" progressive CMOS sensor and fixed 3.6mm lens, this camera delivers sharp, detailed imagery across diverse lighting conditions. Its WDR Pro technology and integrated IR illuminators rated to 30 meters make it a reliable choice for 24/7 outdoor monitoring of commercial properties, parking facilities, and perimeter security.

Key Features

• 5MP Resolution (2560×1920) – Captures fine detail for identification and evidence
• WDR Pro Technology – Balances exposure in high-contrast lighting scenarios
• IR Night Vision – Dual IR LEDs with Smart IR, effective to 30 meters in darkness
• Day/Night Capability – Removable IR-cut filter switches automatically between color and B&W modes
• H.265 Video Compression – Reduces bandwidth and storage demands without quality loss
• Smart Stream III – Intelligent bitrate optimization for efficient network use
• IP66 Weather Protection – Rated for rain, dust, and extreme temperatures (-20°C to +60°C operating range)
• PoE Power – Single cable for network and power delivery, simplifying installation
• Electronic PTZ – 48x digital zoom with 360° pan, 70° tilt, and 360° rotation
• MicroSD/SDHC/SDXC Storage – Local recording with optional NAS backup
• Motion Detection & Tampering Alarm – Real-time event alerts via email, HTTP, FTP, or push notification
• Cybersecurity – Integrated Trend Micro IoT Security with brute-force and cyberattack protection

Technical Specifications

• Sensor: 1/2.7" Progressive CMOS
• Lens: Fixed 3.6mm, F2.0 aperture, 76° horizontal FOV
• Minimum Illumination: 0.03 lux color, <0.005 lux B&W, 0 lux with IR
• Dynamic Range: 120 dB; S/N Ratio: 67 dB
• Frame Rate: 20 fps @ full 5MP resolution
• Video Codecs: H.265, H.264, MJPEG (up to 8 configurable profiles)
• Network: 10/100 Mbps Ethernet with PoE (IEEE 802.3af Class 2)
• Power Consumption: 6W (IR on), 3.31W (IR off)
• Audio: One-way, 5-meter range with G.711 and G.726 compression
• Concurrent Users: Up to 10 live viewing clients
• Physical: Ø105 × 82.5mm turret, 475g, IK10 impact-rated
• ONVIF Compliant: Profile S, T support

Applications

Ideal for parking lots, building perimeters, warehouse entries, gas stations, and municipal surveillance. The low-light performance and IR range make it suitable for areas with minimal ambient lighting. Scalable architecture supports small multi-camera deployments through enterprise networked systems.

Jerry Tildsen

The IT9380-HF3 balances feature density with cost-effective operation. WDR Pro and ePTZ deliver flexible coverage without mechanical pan-tilt complexity, reducing maintenance. H.265 compression is critical for organizations managing bandwidth-constrained networks.

The 120 dB dynamic range and 67 dB S/N ratio ensure usable imagery in challenging mixed lighting—a common real-world scenario. Trend Micro IoT Security integration addresses the growing attack surface of edge devices; the 1-year trial provides baseline threat awareness. For fixed-point outdoor monitoring with occasional zoom needs, this turret strikes a practical middle ground between dome simplicity and high-end PTZ capabilities.

Native ONVIF support enables integration into heterogeneous surveillance ecosystems.
