Description

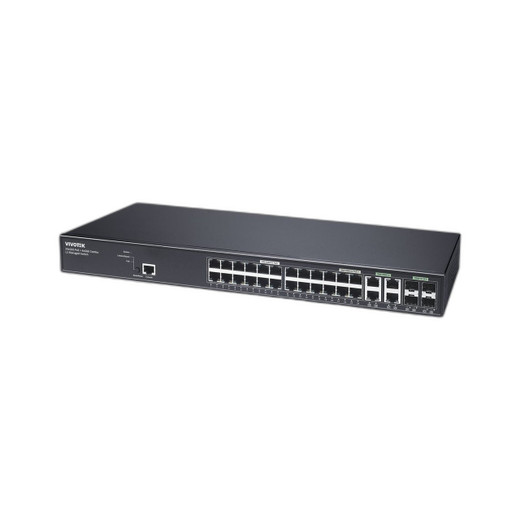

Vivotek AW-GEV-288A-370 24-Port Gigabit PoE Managed Switch

The Vivotek AW-GEV-288A-370 is a purpose-built managed network switch engineered for large-scale IP surveillance deployments. Combining 24 Gigabit PoE ports with 4 specialized VIVOCAM combo ports, this switch delivers the connectivity and power infrastructure critical for modern camera networks. With a robust 370W PoE power budget and Layer 2 managed capabilities, it provides enterprises with centralized control, advanced traffic management, and simplified device administration across complex surveillance ecosystems.

Key Features

  • High PoE Power Delivery: 370W total budget with mixed power outputs—ports 1-20 at 30W (802.3af/at) and ports 21-24 at 90W (802.3bt)—supports PTZ cameras, thermal sensors, and power-hungry devices
  • Extensive Connectivity: 24 Gigabit RJ45 ports plus 4 VIVOCAM combo ports for direct camera integration
  • Managed Switch Platform: VLAN support (4096 IDs), QoS, link aggregation, and multicast management for enterprise-grade traffic control
  • Vivotek Device Management: Auto-discovery up to 256 devices, unified surveillance device management, camera reboot/configuration, and topology/floor/map views
  • Network Resilience: STP/RSTP/MSTP spanning tree protocols, loop detection, and cable diagnostics
  • Security & Authentication: RADIUS/TACACS+, 802.1X port security, IP source guard, DHCP snooping, and storm control
  • Monitoring & Intelligence: SNMP (v1/v2c/v3), RMON, port mirroring, traffic monitoring, and S-Flow support

Technical Specifications

  • Switching Bandwidth: 56 Gbps
  • Forwarding Capacity: 41.7 Mpps
  • MAC Address Table: 8K entries
  • Jumbo Frame Support: 9216 bytes
  • Console Port: 1 (for management access)
  • Hardware Queues: 8 per port with port-based, 802.1p, DSCP, and WRR QoS
  • PoE Features: Scheduling, alive checking, reboot control, non-stop operation, and extended mode (up to 250m/10Mbps)
  • Operating Temperature: -10°C to 50°C
  • Power Input: 100–240V AC, 50–60 Hz
  • Dimensions: 442 × 44 × 211 mm; Weight: 3.2 kg

Applications

Ideal for enterprise surveillance installations, multi-building campuses, retail chains, transportation hubs, and data centers requiring unified IP camera deployment with centralized management. The switch's mixed PoE output supports heterogeneous device ecosystems, from standard IP cameras to advanced PTZ and thermal imaging systems.

Ted Perry
Ted Perry

The AW-GEV-288A-370 distinguishes itself through Vivotek's integrated device management ecosystem. Unlike generic managed switches, this platform natively discovers and manages Vivotek cameras, video servers, and encoders—eliminating the need for third-party management software in homogeneous Vivotek environments. The segmented PoE architecture (high-power ports 21–24 at 90W vs. standard ports 1–20 at 30W) reflects real-world deployment patterns, allowing operators to concentrate high-draw PTZ cameras on dedicated ports while serving standard fixed cameras elsewhere.

The 56 Gbps backplane and 41.7 Mpps throughput provide sufficient headroom for 24 simultaneous 1080p@30fps streams plus management overhead. Advanced features like MSTP, LLDP-MED, and extended PoE mode (250m reach at reduced bandwidth) address challenging deployments in older buildings or outdoor scenarios. SNMP v3 and role-based access control via RADIUS ensure compliance with enterprise security policies.

The 24-month warranty and support for firmware upgrades provide long-term operational continuity.

Expert Analysis
Specifications
Model: AW-GEV-288A-370
Product Description: 4xGbE bt 90W PoE + 20xGbE 30W PoE + 4xGbE Combo VIVOCAM L2 Managed PoE Switch
Gigabit RJ45 Port: 24
Gigabit Combo Port: 4
Total Ports: 28
Console Port: 1
Switching Bandwidth: 56 Gbps
Forwarding Capacity: 41.7 Mpps
MAC Address: 8 K
Jumbo Frames: 9216 Bytes
Auto Search VIVOTEK Device: up to 256 pcs
PoE Reboot: V
Surveillance Device Management List: V
DHCP Server Function: V
VIVOTEK Device Grouping Setting for VLAN: V
VIVOTEK Device Name Edit: V
VIVOTEK Camera/Video Server Reboot/Restore Default: V
VIVOTEK Device Re-direct Link: V
VIVOTEK Device On/Off Line Status: V
Topology View: V
Floor View: V
Google Map View: V
VIVOTEK Camera/Video Server Configuration File Export/Import: V
Floor Image Management: V
Export Surveillance Management Device List: V
Cable Diagnostics: V
Traffic Monitoring: V
IEEE802.1D (STP: V
IEEE802.1w (RSTP: V
IEEE802.1s (MSTP: V
IEEE802.1d (LACP: V
Static Aggregation: V
802.1Q Tag-based VLAN: 4096 VLAN IDs
Port-based VLAN: V
Private VLAN Edge (PVE: V
GARP VLAN: V
Q-in-Q (Double Tag: V
Protocol-based VLAN: V
MAC-based VLAN: V
Voice VLAN: V
IP Subnet-based VLAN: V
Multicast VLAN Registration (MVR: V
IGMP Snooping (v1/v2: V
DHCP Relay: V
MLD v1/v2 Snooping: V
IPv4/IPv6: V
Hardware Queues: 8
Port Based: V
802.1p: V
Ingress: V
Egress: V
Per Port: V
WRR: V
DSCP & Class of Service: V
RADIUS Authentication: V
IGMP-RADIUS Based: V
Secure Sockets Layer (SSL: V
Port Security: V
IP Source Guard: V
Storm Control: V
Layer 2 Isolation Private VLAN Edge (PVE: V
RADIUS/TACACS: V
Loop Detection: V
DHCP Snooping: V
Up to 384 Entries: V
Source and Destination MAC, VLAN ID or IP Address, Protocol, Port: V
DSCP) / IP Precedence: V
TCP/ UDP source and destination ports: V
802.1p priority: V
ICMP Packets: V
Ethernet type: V
TCP flag: V
SNMP (v1, v2c, v3: V
RMON (1,2,3 & 9 groups: V
DHCP Server & Client: V
Port Mirroring: V
UPnP: V
LLDP (IEEE802.1ab: V
LLDP-MED: V
S-Flow: V
Firmware Upgrade: V
NTP: V
PoE On/Off Control: V
PoE Alive Checking for PD: V
PoE Scheduling: V
Power Delay: V
Non-Stop PoE: V
Extended PoE Mode (up to 250m/10mbps: V
IEEE 802.3af/at/bt PoE Standard Compliant: V
Number of PoE Output Port: 24
PoE Output Power: Port 1-20 at 30W, Port 21-24 bt 90W
Totoal PoE Power Budget: 370 W
PoE Pin Assignment: Port 21-24 bt: 4 pairs 1/2 (-), 3/6 (+) and 4/5 (+), 7/8 (-), Port 1-20 af/at: 2 pairs 1/2 (+), 3/6 (-)
Operating Temperature: -10°C ~ 50°C (14°F ~ 122°F)
Storage Temperature: -20°C ~ 70°C (-4°F ~ 158°F)
Operating Humidity: 10 ~ 90% RH
Dimensions: 442 (W) x 44 (H) x 211(D) mm
Weight: 3.2 kg
AC Input: 100V ~ 240V
Frequency: 50 ~ 60 Hz
Features: UL, CE, UKCA, FCC, VCCI, LVD, ICES
Warranty: 24 months
Included Accessories: Power Cord, QIG, CD Manual, Rack Mount Kit
Product Type: Switch
