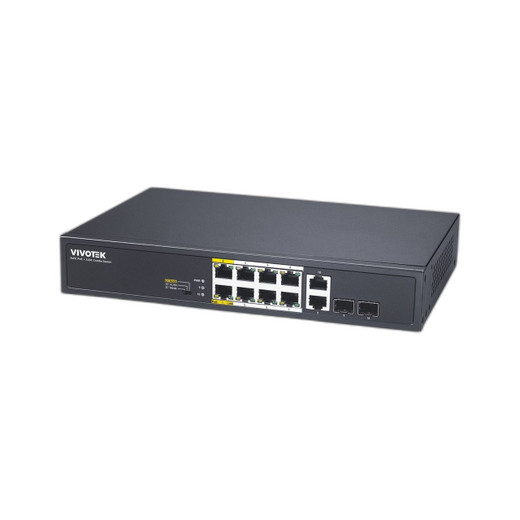

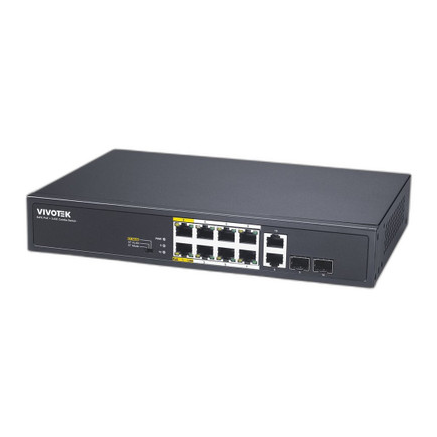

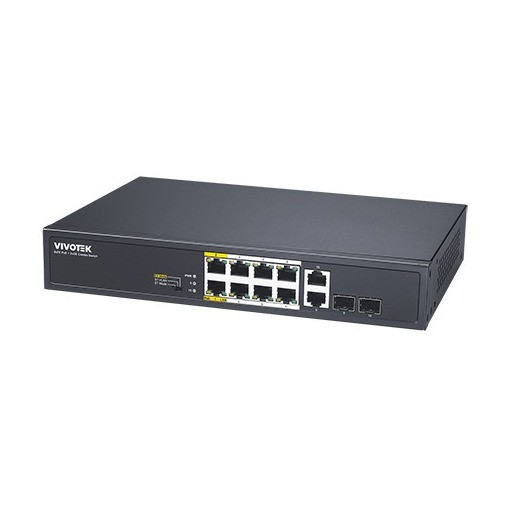

Vivotek AW-FGT100D120 8-Port PoE+ Network Switch

Vivotek AW-FGT100D120 8-Port PoE+ Network Switch

The Vivotek AW-FGT100D120 is a compact, unmanaged PoE+ network switch purpose-built for IP surveillance and security deployments. With eight Fast Ethernet PoE+ ports and two Gigabit combo ports (RJ45/SFP), this switch delivers 115W of total PoE power to simultaneously support multiple high-demand devices. Its plug-and-play design eliminates complex configuration, making it ideal for rapid installation in both small and medium-scale surveillance systems.

Key Features

• 8 × Fast Ethernet PoE+ ports (10/100 Mbps, up to 30W per port)
• 2 × Gigabit RJ45/SFP combo ports for uplink or extended connectivity
• 2 × Extended Mode PoE ports (250M range at 10 Mbps)
• 115W total PoE power budget
• 5.6 Gbps switching capacity
• Unmanaged architecture for straightforward deployment
• Auto-MDI/MDI-X and auto-negotiation supported
• IEEE 802.3af/at compliant
• Compact form factor: 270 × 181 × 44 mm

Technical Specifications

• Power Input: 100–240 VAC, 50/60 Hz
• PoE Protection: 6KV surge protection per port; 4KV AC surge protection
• MAC Address Table: 4K entries
• Jumbo Frame Support: Up to 1,536 bytes
• Operating Temperature: 0–50°C (32–122°F)
• Power Consumption: 120W maximum
• Weight: 1.54 kg
• Certifications: CE, FCC, VCCI; LVD EN62368-1
• Warranty: 24 months

Applications

• IP camera surveillance systems and security networks
• Wireless access point deployments
• Building entry control and intercom systems
• IoT device networks requiring centralized power and data
• Retail, corporate, and industrial facility monitoring

Ted Perry

The AW-FGT100D120 is engineered for efficiency and reliability in surveillance-grade deployments. Its 115W power budget accommodates mid-range camera deployments without auxiliary power infrastructure, while the dual Gigabit combo ports enable flexible uplink configurations to your core network. The extended-mode PoE functionality on two ports extends reach to 250 meters at reduced bandwidth—useful for supplementary sensors or devices in sprawling facilities.

Unmanaged switches reduce operational overhead for small-to-medium installations where VLAN or QoS management is unnecessary. The 6KV surge protection per port and robust temperature operating range (0–50°C) make this switch suitable for both indoor and semi-outdoor environments. At 1.54 kg with a compact footprint, integration into wall-mount or DIN-rail installations is straightforward.
