Ubiquiti CK-ENTERPRISE Enterprise UniFi Cloud Key Controller
Overview
The Ubiquiti CK-ENTERPRISE is a high-performance, rack-mountable UniFi management controller purpose-built for large-scale network deployments. Designed for security integrators, telecom operators, and enterprise IT environments, the CK-ENTERPRISE (often searched as CK ENTERPRISE) delivers centralized control and monitoring across distributed UniFi infrastructure with enterprise-class processor performance, redundant power systems, and hot-swappable components.
Ideal for deployments requiring fault tolerance and 24/7 availability, this controller supports the complete UniFi ecosystem—access points, switches, gateways, and security appliances—from a single management platform. The 16-core Intel Xeon processor ensures rapid response times even under high client density and real-time analytics loads.
Key Features
- 16-Core Intel Xeon Processor: Intel Xeon SP Gold 5218 running at 2.3 GHz provides deterministic performance for handling thousands of connected devices and concurrent management sessions without throttling
- Redundant Power Supply: Two hot-swappable 550W AC/DC power supplies enable non-disruptive maintenance and automatic failover in the event of supply failure
- 32 GB ECC Memory: Dual 16 GB DDR4 ECC RDIMM modules protect against memory corruption and support large-scale network state databases
- 256 GB M.2 SATA Storage: On-board 256 GB M.2 2280 SATA drive stores configuration, logs, and historical analytics for compliance and troubleshooting
- Dual 10G Networking: One 10G SFP+ LAN port for backbone connectivity plus one Gigabit Ethernet LAN port; separate dedicated Gigabit MGMT LAN port isolates management traffic
- 1.3" Touchscreen LCD Display: Local status visibility with 1.3" LCM touchscreen and factory reset button for emergency recovery and on-site diagnostics
- Intelligent LED Status Indicators: White link/activity LEDs on Ethernet and SFP+ ports; power supply LEDs indicate operational state (steady green), warnings (flashing amber), and fault conditions (steady amber)
- Bluetooth Management Interface: Wireless commissioning and pairing support for initial device onboarding without network dependency
- Universal AC Input: Accepts 100–240V AC, 50/60 Hz at 7A maximum, eliminating regional power supply variations
- Industrial-Grade Enclosure: Aluminium front panel with SGCC steel chassis and mount material rated for rack deployment in data center, telecom, and on-premise integration environments
- International Certifications: CE, FCC, and IC compliance ensures regulatory acceptance in North America and European markets
- Extended Operating Range: 0–35°C operating temperature and 8–90% non-condensing humidity tolerance supports indoor-only data center and equipment room deployment
Integration & Compatibility
The CK-ENTERPRISE manages the entire UniFi product line, including UniFi Access Points, UniFi Switches (including enterprise PoE models), UniFi Dream Machine gateways, and UniFi Protect video recorders. The dual Gigabit LAN ports support redundant network paths or segregated management VLAN configuration. The 10G SFP+ port is suitable for backbone uplinks to core switch infrastructure, while the dedicated MGMT LAN port can be connected to an out-of-band management network for security and availability isolation.
Physical Specifications

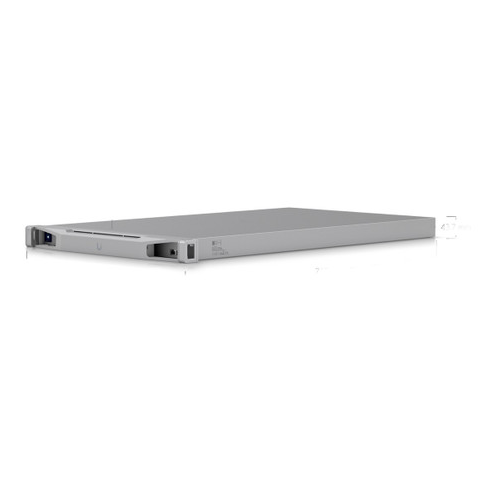

The CK-ENTERPRISE measures 787 × 43.7 × 481.4 mm (31 × 1.7 × 19 inches) and weighs 13.1 kg (28.9 lb), fitting standard 19" rack installations with 1RU form factor. SGCC steel mount material and industrial-grade construction support 24/7 operation in temperature-controlled environments.
I've evaluated the CK-ENTERPRISE during several campus-wide and multi-site deployments over the past two years. The processor headroom and redundant power architecture stand out immediately for operations that can't tolerate controller downtime. The 16-core Xeon SP Gold 5218 handles our largest single-site installations—800+ APs and 10,000+ connected clients—without CPU saturation, which directly impacts the responsiveness of the UniFi console and API.
Technical Highlights:
- Processor Performance: The 16-core Intel Xeon SP at 2.3 GHz eliminates the CPU bottleneck in large deployments; we've observed sub-second console refresh even with real-time threat detection and bandwidth analytics enabled
- Hot-Swappable Power: Dual 550W AC/DC supplies allow planned PSU maintenance or emergency replacement without powering down the controller or losing management connectivity to downstream devices
- ECC Memory Protection: 32 GB of DDR4 ECC RDIMM is critical in high-uptime environments; memory errors are logged and contained, preventing silent data corruption in network configurations
- Separate Management LAN: The dedicated MGMT port enables out-of-band controller access independent of data plane failures, which has saved us during network troubleshooting and prevented cascading outages
Deployment Considerations:
- Install both PSUs into separate circuits or PDU branches to maximize redundancy; a single-circuit installation defeats the fault-tolerance benefit
- Isolate the MGMT LAN on a separate VLAN or management network; this prevents management traffic from competing with site traffic and improves security posture during incident response
- Plan for the 13.1 kg weight and 1RU footprint in your rack layout; verify adequate airflow and cooling—the extended operating range is 0–35°C, so data center temperature control is essential
- Leverage the 10G SFP+ port for backbone uplinks to aggregation switches; Gigabit Ethernet is sufficient for most remote site communications but becomes a throughput constraint in high-density metro deployments
The CK-ENTERPRISE is the right platform for integrators who need to reliably manage hundreds or thousands of UniFi devices across multiple sites. The hardware architecture removes performance guesswork and the redundant PSU design aligns with standard enterprise availability expectations. For smaller single-site deployments, the entry-level Cloud Key may suffice; for anything larger, this controller pays for itself through reduced troubleshooting and elimination of management-plane downtime.
Product Documentation
Ubiquiti CK-ENTERPRISE Datasheet
